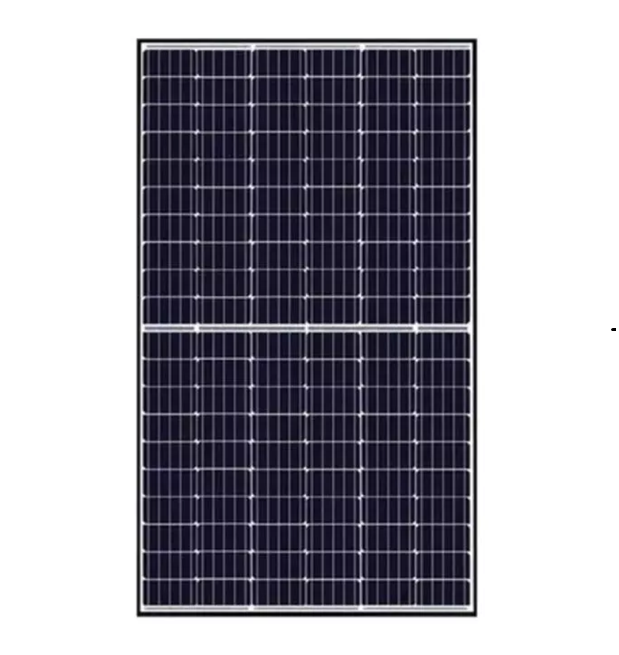

Canadian Solar 315W Mono-Crystalline Panel – Silver Edition

The Canadian Solar CS3K-315P/MS Mono-Crystalline Solar Panel merges cutting-edge solar technology with superior design to deliver high power output of up to 315 watts. Featuring advanced mono-PERC cell technology, this panel ensures efficient energy conversion, making it ideal for maximizing solar energy collection in diverse conditions. With its impressive durability and performance, it is an excellent choice for solar installations seeking enhanced efficiency and sturdy construction.

Key Benefits

Enhanced Energy Conversion

Utilizing Canadian Solar’s industry-leading mono-PERC cell technology, this panel achieves substantial power efficiency, making it perfect for both residential and commercial solar setups.

Robust Construction

Engineered with an anodized aluminum frame, the panel ensures longevity and stability, capable of withstanding heavy snow loads up to 6000 Pa and wind pressure up to 4000 Pa.

Optimal Performance

Thanks to its low temperature coefficient of -0.37%/°C, the CS3K-315P/MS performs efficiently even under high temperatures, providing reliable energy generation.

Flexible Installation

Designed with a user-friendly installation process in mind, the panel offers versatile mounting options to accommodate various building and roof types.

High Module Efficiency

Boasting an exceptional module efficiency rate of up to 18.96%, this solar panel converts a higher percentage of sunlight into power, optimizing energy production.

Operational Insights

Canadian Solar’s 315W Mono-Crystalline Panel operates seamlessly, integrating several advanced components to ensure top-tier performance. Offering enhanced shading tolerance and reduced power loss, it guarantees a steady energy supply under diverse sunlight conditions.

PERC Cell Technology

Key to its performance is the innovative PERC cell technology that enhances light absorption and minimizes thermal stress, ensuring efficient energy production across various conditions.

IP68 Rated J-Box

The panel’s junction box boasts an IP68 rating, providing excellent protection against water ingress, ensuring continued operation even under challenging weather situations.

Advanced Bypass Diodes

Equipped with bypass diodes, the panel minimizes power loss caused by partial shading, maintaining stable energy output.

Specifications

Model Number	CS3K-315P/MS
Nominal Power Output	315 W
Module Efficiency	18.96%
Opt. Operating Voltage (Vmp)	33.1 V
Open Circuit Voltage (Voc)	39.9 V
Opt. Operating Current (Imp)	9.52 A
Short Circuit Current (Isc)	10.06 A
Maximum System Voltage	1500V (IEC/UL)
Dimensions	1675 x 992 x 35 mm
Weight	18.5 kg
