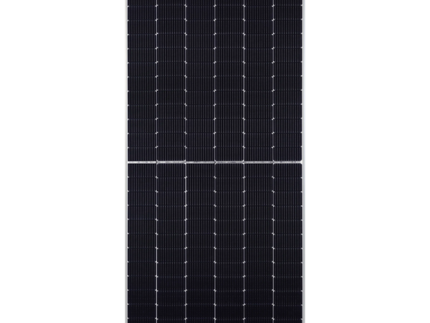

Hyundai Energy Solutions 132 Half Cell Solar Panel – HiS-S400YH(BK)

The Hyundai Energy Solutions HiS-S400YH(BK) solar panel harnesses cutting-edge bifacial cell technology to deliver enhanced power output. This model is optimized for efficiency, making it perfect for high-performance solar installations. With a robust design and reliable backing from Hyundai, this panel promises lasting energy solutions.

Product Features

Bifacial Cells for Increased Output

The innovative bifacial cell design allows this solar panel to capture sunlight from both the front and back, achieving up to 25% additional power gain. This feature makes it ideal for maximizing energy generation in various setups.

Enhanced Module Efficiency

Featuring a high module efficiency of up to 20.5%, this panel ensures superior performance through the integration of half-cut cell technology and multi-wire connections, reducing energy loss and enhancing overall output.

Durable Construction

Constructed with 3.2mm tempered glass and a sturdy anodized aluminum frame, the panel is designed to withstand severe environmental conditions including heavy snow and strong winds, ensuring stability and longevity.

Anti-LID and PID Technology

The HiS-S400YH(BK) includes technology to significantly reduce Light Induced Degradation (LID) and Potential Induced Degradation (PID), ensuring sustained power yield over the panel’s lifespan.

Reliability and Warranty

Backed by Hyundai’s extensive experience in the energy sector, this solar panel comes with a dependable 25-year product and performance warranty, ensuring long-term satisfaction and dependable energy production.

How It Works

The HiS-S400YH(BK) operates by converting solar energy into electrical power through its advanced solar cells. Its bifacial design allows energy collection from both panel surfaces, enhancing efficiency especially in reflective environments.

Bifacial Solar Cells

The bifacial cells are key to its dual-side energy collection, boosting performance by utilizing indirect sunlight reflected from surrounding surfaces.

Half-Cut Cell Technology

This technology reduces resistance and improves current flow, minimizing energy loss and increasing overall panel efficiency.

Junction Box and Bypass Diodes

Equipped with an IP68-rated junction box and three bypass diodes, this panel maintains efficiency by mitigating potential power reduction from shading and other obstructions.

Specifications

Nominal Output (Pmpp)	400 W
Open Circuit Voltage (Voc)	45.3 V
Short Circuit Current (Isc)	11.25 A
Voltage at Pmax (Vmpp)	37.7 V
Current at Pmax (Impp)	10.61 A
Module Efficiency	20.0%
Dimensions	1,038 mm x 1,924 mm x 35 mm
Weight	Approx. 21.1 kg
Operating Temperature	-40C to +85C
Maximum System Voltage	1,500 V
