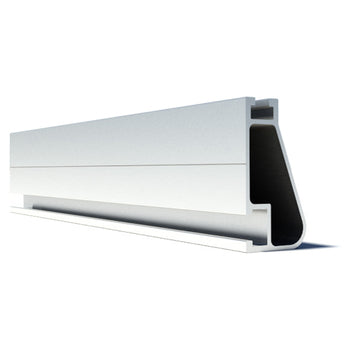

Ironridge XR Rail 132: Advanced Solar Mounting Solution

The Ironridge XR-100-132A is an innovative solar mounting system specifically engineered for challenging pitched roofs. It combines durability and advanced design, ensuring reliable performance in extreme weather conditions. This product is ideal for those looking to enhance their solar installations with a robust and compliant mounting solution, backed by a solid warranty for peace of mind.

Product Features

Robust Structural Design

Featuring uniquely reinforced components, the Ironridge XR-100-132A ensures superior structural integrity and durability. Its design includes curved rails that optimize the distribution of load, effectively enhancing the system’s overall performance in any environment.

PE Certified for Safety

The Ironridge XR-100-132A is fully certified and adheres to rigorous engineering standards, offering peace of mind to users. Each component is evaluated for enhanced structural performance, ensuring compliance with local building codes.

Class A Fire Rating

This mounting system has received a Class A fire rating, ensuring it maintains the existing fire resistance of your roof. This feature is crucial for safety and compliance, making it a smart choice for any solar installation.

Integrated Grounding System

The integrated grounding system of the Ironridge XR-100-132A simplifies the installation process by eliminating the need for separate grounding components. This means reduced installation time and enhanced electrical safety across the solar array.

Comprehensive Warranty

The Ironridge XR-100-132A comes with a generous 20-year warranty, reflecting the manufacturer’s confidence in their product’s longevity and reliability. This warranty covers structural defects, assuring users of its long-term performance.

How It Works

The Ironridge XR Rail system serves as a mounting framework for solar panels, designed to withstand high winds, heavy snow loads, and other potential hazards common in various climates. Its assembly process is straightforward, ensuring installers can quickly and efficiently set up the system.

Splice Connection

The splice connection between rails allows for flexible configurations, accommodating bands of solar panels of various sizes while maintaining a seamless load transfer across the joints.

Grounding Strap Integration

The integration of a grounding strap into the rails ensures the entire system is electrically grounded, reducing the risk of electric shock and ensuring compliance with safety regulations.

Easy Assembly Steps

The product is designed for ease of installation with clear assembly steps, requiring minimal tools. The straightforward setup allows both professional installers and advanced DIY enthusiasts to mount their solar panels effectively.

Specifications
