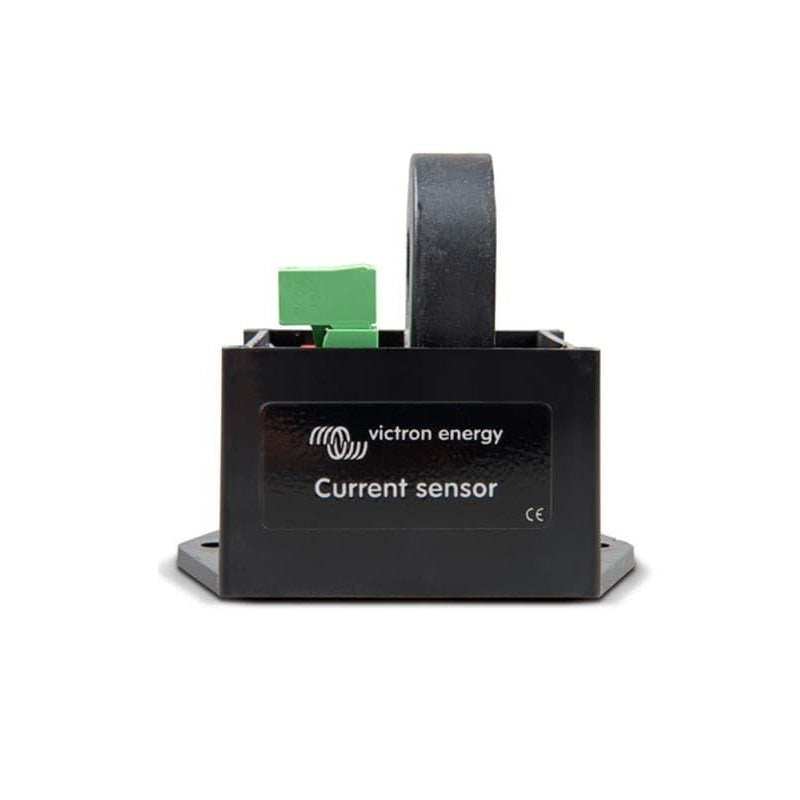

Victron Energy CSE000100000

The Victron AC Current Sensor (CSE000100000) is an essential tool for accurately measuring AC current, power (VA), and energy generated by a PV inverter connected to your Multi or Quattro systems. Designed for ease of use, this external sensor allows you to efficiently monitor power output and energy consumption, ensuring optimal performance for your solar energy applications. With its straightforward installation and configuration, the AC Current Sensor enhances the user experience by providing vital information for energy management.

Product Features

Real-Time Monitoring

With the Victron AC Current Sensor, you can enjoy real-time monitoring of your PV inverter’s performance. This feature allows you to track AC current and power output effortlessly, providing valuable insights to improve your energy management strategies.

Versatile Connection Options

This sensor has versatile wiring options that enable connection to both AUX and TEMP-sense inputs on Multi and Quattro units. This flexibility enhances its usability in various installation scenarios, making it easier for you to integrate into your existing systems.

Power Range Configuration

The sensor comes with adjustable power range settings, allowing for customization based on your needs. You can set it to a predefined power step size, ensuring accurate readings for a variety of inverter capacities, whether it’s 1.5kW, 3kW, 5kW, or even 7kW.

Multi-Phase Compatibility

This AC Current Sensor supports multi-phase installations seamlessly. For optimal monitoring, simply install one sensor for each phase of your PV inverter system, making it a perfect solution for complex energy setups.

IP54 Protection Rating

Built for durability, the Victron AC Current Sensor boasts an IP54 protection rating, ensuring it can withstand various environmental conditions while maintaining accurate measurements, making it reliable for indoor and outdoor applications.

How It Works

The operation of the Victron AC Current Sensor is straightforward. By connecting it to the AC wires of your PV inverter, the sensor measures the current and accurately calculates the power and energy values. These readings are then sent to the Color Control, allowing you to view the data on the VRM website for enhanced monitoring.

Measurement Connection

The sensor connects directly to the AC wires of your inverter, ensuring accurate current measurement. By attaching it to the appropriate inputs on the Multi or Quattro, you enable efficient data transmission and monitoring capabilities.

Data Transmission

Once connected, the AC Current Sensor transmits real-time data to the Color Control unit, which then relays this information to the VRM website. This functionality provides users with easy access to their energy data and performance metrics online.

Firmware Compatibility

To ensure the best performance, the sensor requires the Multi or Quattro devices to run the latest firmware. This compatibility ensures that all features and capabilities of the sensor are fully utilized for optimal performance.

Specifications
