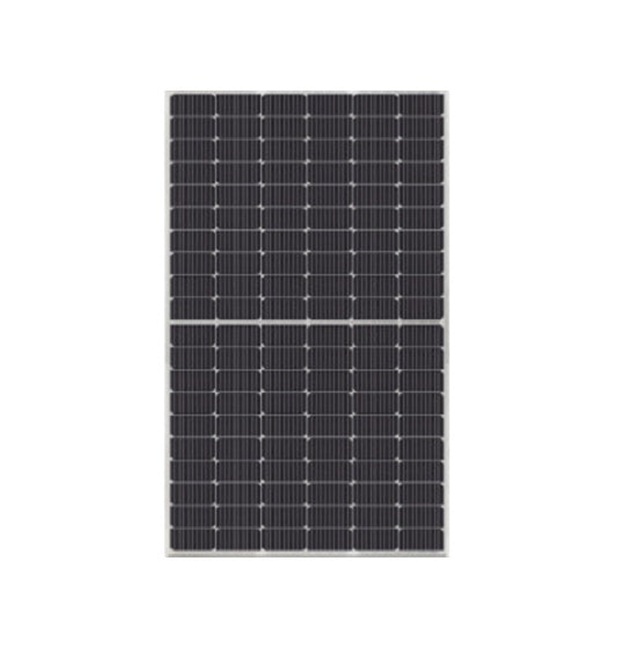

VSUN VSUN370-120BMH-1300

The VSUN370-120BMH solar panel offers remarkable efficiency and power output for diverse energy needs. Featuring advanced PERC technology, it ensures reliable performance even under challenging conditions. Designed with a focus on durability and enhanced module efficiency, this solar solution meets the demands of both residential and commercial applications, solidifying its position as a top choice for sustainable energy.

Product Features

Exceptional Power Output

Achieve superior energy generation with the VSUN370-120BMH, delivering a robust 370-watt output for high-efficiency power conversion that’s ideal for any project size.

Advanced PERC Cell Technology

With PERceCL technology, this panel increases light absorption and efficiency, producing more energy from available sunlight and offering better shading tolerance.

High Corrosion Resistance

Certified to withstand salt and ammonia environments, this solar module is perfect for installations in diverse climatic conditions, ensuring long-term reliability.

Enhanced Structural Durability

Designed to endure high loads with certificates for wind resistance up to 2400Pa and snow resistance up to 5400Pa, guaranteeing robustness against environmental stressors.

Lower Operational Costs

Offering positive tolerance and lower Levelized Cost of Energy (LCOE), the VSUN370-120BMH ensures high return on investment with reduced maintenance costs and reliable performance.

How It Works

The VSUN370-120BMH solar panel harnesses sunlight, converting it into electricity through its advanced bifacial monocrystalline cells. Its efficiency is bolstered by cutting-edge PERC technology and robust materials that maximize energy capture, even in low-light conditions, while reducing the risk of hot spot formation.

Monocrystalline Solar Cells

Integrated with bifacial monocrystalline cells, the panel efficiently captures sunlight on both sides, providing increased energy yield and enhanced performance.

Durable Construction Materials

The module’s silver anodized aluminum frame and semi-toughened safety glass offer superior protection against environmental challenges, ensuring longevity and effectiveness.

Intelligent Connection System

Equipped with a reliable junction box featuring IP67 protection and high-quality connectors, the panel guarantees efficient energy flow and easy integration.

Specifications

Maximum Power – Pmax (W)	370
Open Circuit Voltage – Voc (V)	41.4
Short Circuit Current – Isc (A)	11.26
Maximum Power Voltage – Vmpp (V)	34.5
Maximum Power Current – Impp (A)	10.72
Module Efficiency	19.79%
Module Dimensions (LAWAH)	1784A1048A35mm
Weight	20.8kg
Operating Temperature Range	-40C to +85C
Front Glass	High transparency, anti-reflection coated, 3.2mm glass
