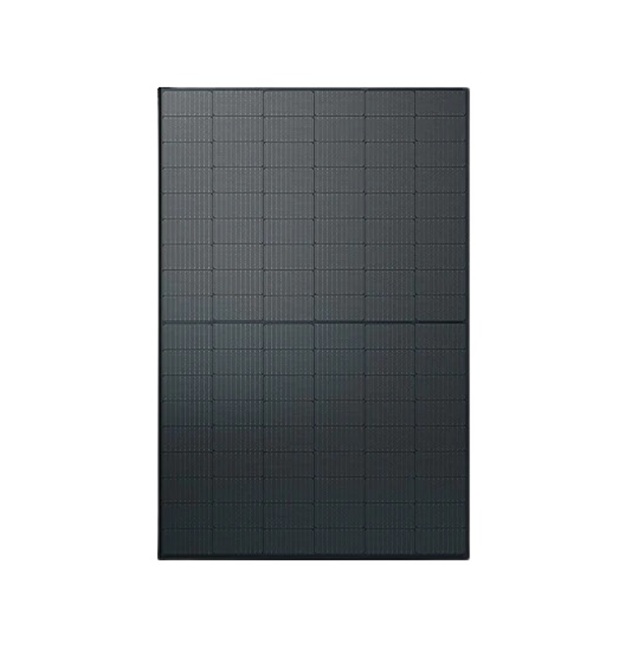

AXITEC 540W AXIbipremium XXL HC MW Solar Panel – AC-540MBT/144V

The Axitec AC-540MBT/144V solar panel is a cutting-edge bifacial module designed to deliver exceptional energy performance. With monocrystalline cells and a unique half-cell structure, this panel ensures up to 25% more power output, making it an ideal choice for those seeking reliable and efficient solar solutions. This model is packed with features to enhance durability and performance, including a high-quality junction box and connector systems rated at IP68 for ultimate protection.

Product Features

Bifacial Technology

Leveraging bifacial technology, this solar panel generates up to 25% more power by utilizing light from both sides. This advanced feature enhances overall energy output, optimizing electricity generation even in low-light conditions.

Enhanced Durability

Engineered with an innovative frame design, the Axitec AC-540MBT/144V offers superior stability and resistance to environmental factors, ensuring long-lasting performance.

Guaranteed Positive Power Tolerance

Each panel is meticulously measured to provide a power tolerance range from 0 to 5 Wp, ensuring dependable energy efficiency that matches or exceeds stated performance levels.

Visual Electroluminescence Inspection

Every unit undergoes comprehensive visual electroluminescence inspection during production, safeguarding the highest quality standards and defect-free operation.

Extensive Warranty Coverage

Benefit from a manufacturer warranty that covers 15 years on 90% of the nominal performance and extends to 25 years on 85% of the nominal performance, ensuring lasting value and reliability.

How It Works

The Axitec AC-540MBT/144V solar panel operates by converting sunlight into electrical energy using high-efficiency monocrystalline cells. The bifacial nature allows it to harness light from both front and rear sides, maximizing power production, even in variable weather conditions.

Monocrystalline High-Efficiency Cells

These cells optimize energy conversion efficiency, supporting higher power outputs even in compact installations.

Advanced Frame and Junction Box Design

The robust aluminum frame and high-quality junction box enhance the module’s durability and energy transmission capacity.

Innovative Testing and Inspection

All panels undergo rigorous testing, including electroluminescence inspections, to ensure peak performance and reliability.

Specifications

Nominal Output	540 Wp
Nominal Voltage Umpp	41.70 V
Current Impp	12.95 A
Short Circuit Current Isc	13.85 A
Open Circuit Voltage Uoc	49.55 V
Module Conversion Efficiency	20.90%
Module Dimensions	2279 x 1134 x 35 mm
Weight	28.5 kg
Operating Temperature Range	-40C to 85C
System Voltage	1500 VDC
Socket Protection Class	IP68
Design Load (Pressure/Suction)	1600 Pa / 1600 Pa
Test Load (Pressure/Suction)	2400 Pa / 2400 Pa
