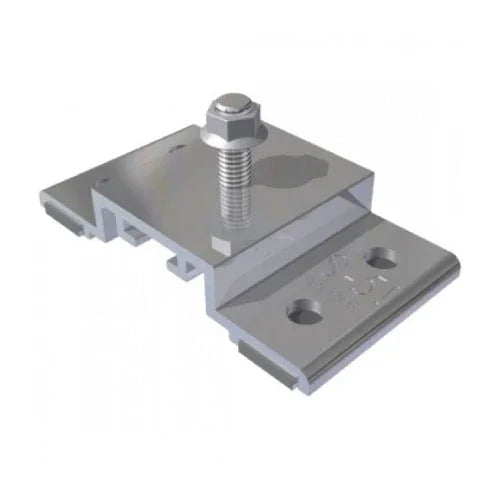

Efficient Solar Mounting Solution for Metal Roofs - S-5! SolarFoot

Introducing the innovative S-5! SolarFoot, designed specifically for exposed fastener metal roofing systems. This advanced product offers exceptional strength, proven reliability, and high-quality engineering, providing a sturdy and weatherproof platform for mounting solar arrays. The SolarFoot seamlessly integrates with all rail-mounted PV systems, ensuring secure attachment to AG-Panel or R-Panel metal roofs.

Product Features

Made in the USA

The S-5! SolarFoot is crafted with care in the U.S.A., utilizing certified raw materials for superior quality and reliability in solar mounting.

ISO 9001:2015 Certified Production

Manufactured in our ISO 9001:2015 certified facilities, ensuring high standards in every step of the production process for consistent quality.

Durable Aluminum and Stainless Components

Constructed from durable aluminum and stainless materials, offering long-lasting weather resistance and strength to withstand various environmental conditions.

Extended 25-Year Warranty

Comes with a 25-year limited warranty, reflecting our commitment to quality and customer satisfaction, offering peace of mind for long-term installations.

Compatibility with Commercial L-Foot Systems

Compatible with all commercial L-Foot products on the market, facilitating seamless integration into existing solar array mounting setups.

Reliable Sealant Application

Features a factory-applied isobutylene/isoprene crosslink polymer sealant with a 40-year lifespan, ensuring exceptional weathertightness.

Sealant Reservoir Design

Includes a dedicated sealant reservoir to prevent over-compression, maintaining a watertight seal over time.

Proven Load Testing

Load-to-failure tested by a nationally accredited lab, demonstrating reliable performance on various metal roof profiles and substrates.

Secure Attachment Points

Features four points of attachment into the roof structure, providing tested and engineered holding strength for robust installations.

Integrated Fastening System

Includes an M8-1.25x17mm stud and M8-1.25 stainless steel hex flange nut for straightforward and secure L-Foot attachments.

How It Works

The S-5! SolarFoot functions as a reliable mounting base for rail-mounted solar PV systems on exposed fastener metal roofs. Its intuitive design facilitates easy installation, ensuring strong and weatherproof connections.

Installation Procedure

The SolarFoot is installed by locating the roof's structural supports, cleaning the surface, applying the SolarFoot, and securing it with appropriate fasteners into the supporting structure beneath.

Fastener Selection Process

Selection of fasteners is based on the supporting substrate, ensuring optimal waterproofing and pull-out strength specific to each installation environment.

Tool Requirements

Installation requires basic tools including a screw gun with hex drive sockets, specific to the types of fasteners used for a secure installation.

Specifications

Material	Aluminum and Stainless Steel
Sealant Type	Isobutylene/Isoprene Polymer
Warranty	25-Year Limited Warranty
Certification	ISO 9001:2015
Load Testing	Performed by Accredited Laboratories
Fastener Compatibility	Commercial L-Foot Systems
Product Weight	0.248 lbs
Stud Size	M8-1.25x17mm
Manufacturing Location	United States
Sealant Lifespan	40 Years
