Off Grid Solar System Design for Reliable Power

Who this guide is for: This guide is for residential installers, commercial EPCs, developers, and homeowners seeking to design a reliable off-grid solar system. It provides a real-world framework for load calculation, component selection, and system sizing to ensure project success, code compliance, and long-term performance.

A successful off-grid solar system isn't just about bolting panels to a roof. It all comes down to a careful, almost surgical, understanding of your energy habits and the specific solar resources at your location. Get that right, and you can correctly size your solar array and battery bank to deliver reliable power, day or night, no matter what the grid is doing.

Your Blueprint for Energy Independence

Think of this guide as your complete blueprint for designing a dependable off-grid solar system. We're skipping the generic fluff and diving straight into the real-world details that make or break a project, walking you through the critical decisions that dictate your system's performance, ROI, and compliance.

Our goal is simple: to provide an actionable framework for designing a system that meets power needs, aligns with project budgets, and withstands field conditions. Flawed designs lead to premature battery failure, power shortages, and costly rework—common pitfalls this guide helps you sidestep.

Before we jump in, it's helpful to see the big picture. Designing a system isn't a single action but a series of connected stages, each with a clear goal.

Key Stages of Off-Grid Solar System Design

Design Stage	Primary Goal	Key Outcome for Installers & Homeowners
Site & Load Analysis	Understand energy needs and environmental factors.	A detailed bill of loads (BOM) and a clear picture of sun exposure, factoring in new regulations or incentive deadlines.
Component Selection	Choose the right "big three": panels, inverter, and batteries.	Matched, high-quality components from brands like BYD or Sungrow that meet NEC/UL standards.
System Sizing	Calculate the exact size of the solar array and battery bank.	A system correctly sized to meet daily energy needs with enough backup for cloudy days ("days of autonomy").
Layout & Schematics	Plan the physical and electrical layout.	A clear plan for panel placement and a wiring diagram (schematic) for a safe, compliant installation.

This table gives you a roadmap. By tackling each stage methodically, you ensure no detail is overlooked, leading to a system that performs as expected from day one.

Segment-Specific Guidance

• For Installers & Contractors: Use this guide to sharpen your client consultations, nail your load calculations, and select NEC-compliant components from trusted brands like BYD or FranklinWH. Highlight your expertise with our PowerLink contractor matching service. The result? Fewer callbacks and happier clients.
• For EPCs & Developers: These principles are crucial for remote and utility-scale projects. They ensure your designs are optimized for peak performance, smooth logistics, and full compliance, backed by our bulk quoting and freight optimization services.
• For Homeowners: Follow these steps to figure out what you really need, make smart component choices, and work confidently with a pro (or tackle a well-planned DIY project). A great first step is getting a clear picture of your energy use with our Submit My Bill tool.

The Growing Momentum of Solar Power

The need for solid off-grid solar design is exploding as solar deployment across the U.S. picks up serious speed. The industry is on track to add an average of 43 GW of solar capacity every year through 2030.

While prices have been volatile due to supply chain issues and tariffs, the rising tide of American-made modules and IRA incentives is helping to stabilize costs. Solar power's contribution to total U.S. electricity generation is expected to leap from just 0.1% in 2010 to over 7% by 2025—a powerful sign of its unstoppable growth. For a deeper dive, you can explore more data on solar industry trends to see where the market is headed.

Figuring Out Your Real-World Energy Needs

Here’s where the project succeeds or fails. Calculating your energy load is the most critical phase of designing an off-grid solar system. This is the absolute foundation of your entire project. Generic online calculators are a recipe for disaster; a proper, detailed power audit is non-negotiable for a system that actually works.

Critical Mistake: Underestimating your daily energy consumption leads to constant power outages and premature battery failure. Wildly overestimating your needs means you'll waste thousands on oversized equipment you'll never fully use. The goal here is precision, grounded in real-world use.

This goes beyond just listing appliances. It's about taking a hard look at how you actually use energy—day in, day out, all year long. For professionals, this is the core of a good client consultation. For a DIYer, it's an eye-opening exercise in understanding your own habits.

Creating Your Comprehensive Appliance Inventory

First, conduct a thorough power audit. This means creating a detailed list of every single electrical device you plan to run.

Your list should cover everything from the big-ticket items down to the small daily conveniences. Think about the well pump, refrigerator, lights, and microwave, but don't forget the little guys like your coffee maker, laptops, phone chargers, and TV.

For every single item on your list, you need to hunt down two key pieces of information:

• Running Wattage: The power a device draws while it's actively on. Find this on the appliance's data sticker or in the user manual.
• Daily Run-Time (in hours): Your best, most honest estimate of how many hours per day each device will be running.

Expert Tip for Installers: Don't just ask your client for a list. Walk them through their daily routines. Ask pointed questions: "What does a typical morning look like? What about evenings? Do you fire up workshop tools on weekends?" This is how you uncover hidden energy hogs and create an accurate load profile.

Differentiating Essential and Non-Essential Loads

With your appliance inventory complete, the next vital step is to split that list into two distinct categories: essential and non-essential. This is fundamental to designing a smart, resilient system, especially when sizing your battery bank for autonomy.

Essential loads are mission-critical appliances you cannot live without, even during an extended outage.

• Examples of Essential Loads:
  • Well pump (water is non-negotiable)
  • Refrigerator and freezer
  • Sump pump
  • Critical medical equipment (e.g., CPAP)
  • A few crucial lights for safety

Non-essential loads are comfort and convenience items, the first things you'd shut down to conserve battery power.

• Examples of Non-Essential Loads:
  • Microwave oven
  • Air conditioning or large space heaters
  • Entertainment systems (TV, gaming consoles)
  • Coffee maker or toaster
  • Power tools in the workshop

This distinction allows you to design a system with enough battery autonomy to keep essentials running for several days without sun, balancing true reliability with project cost.

Planning for Seasonal Variations and Future Growth

A static load calculation is just a snapshot. A truly robust off-grid design must account for dynamic energy needs.

Seasons have a massive impact. You'll use lights far more in the winter, while fans or an AC unit run in the summer. Always design for your worst-case scenario: the season with the highest energy demand and the lowest solar production (winter).

Finally, think about future growth. Are you planning a workshop or considering an EV charger? It is far more cost-effective to factor that potential growth into your initial design. Oversizing key components like your inverter and charge controller now can save you from a complete—and very expensive—system overhaul down the road. A good installer will always ask about your 5-to-10-year plan.

Selecting the Right System Components

With a solid energy load calculation, it’s time to choose the hardware. This is about building a balanced, cohesive system where every part works in harmony. A poor choice here can lead to underperformance, premature equipment failure, and a system that doesn't meet your needs. We're going to focus on making smart, practical selections based on real-world scenarios.

Solar Panels: The Engine of Your System

Your solar panels are the engine of your entire setup, converting sunlight into DC electricity. In residential and commercial solar, you'll mainly encounter two types: monocrystalline and polycrystalline.

• Monocrystalline Panels: The high-performers, recognized by their sleek, uniform black look. Made from a single silicon crystal, they boast higher efficiency rates (~20% or more), delivering more power per square foot. This makes them the go-to choice for space-constrained rooftops. They also perform better in high heat and low-light conditions.

• Polycrystalline Panels: Recognized by their speckled blue hue, these are made from melted silicon fragments, a less wasteful process that makes them more budget-friendly. While their efficiency is slightly lower (typically around ~15%), they are a fantastic choice for large ground-mount arrays where space isn't a constraint and keeping upfront costs down is a priority.

Field Decision Point: The right panel often comes down to site specifics. For a small cabin roof in the Pacific Northwest, the superior low-light performance of monocrystalline is a no-brainer. For a sprawling ground-mount system in Arizona, the cost savings from polycrystalline panels could be a major advantage.

Your choice is also tied to the global market. While China dominates traditional and hybrid panel production, Germany is a key player in Europe. In the Americas, the USA leads the market, with countries like Chile and Canada also being significant contributors. For deeper insights, you can review key insights on the global off-grid solar market.

Charge Controllers: The System's Traffic Cop

A charge controller manages the power flow from your panels to your batteries, preventing overcharging—a fast way to ruin an expensive battery bank. The conversation boils down to two technologies: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT).

For any serious off-grid solar system, an MPPT charge controller is a non-negotiable investment. While PWM controllers are cheaper, they are dramatically less efficient. An MPPT controller intelligently converts high-voltage panel power to low-voltage battery power, capturing up to 30% more energy. That’s free power, especially in cold weather, meaning faster charging and a healthier battery bank.

For more on how these components work together, see our guide on solar energy production.

Inverters: The Heart of Your Power System

The inverter is the heart of your system, converting DC power from your batteries into the standard AC power your appliances use.

Off-Grid Inverter Technology Comparison

Inverter Type	Best For	Key Advantage	Primary Limitation
Pure Sine Wave	All appliances, especially sensitive electronics, medical devices, and modern equipment.	Produces clean, grid-quality power that is safe for all devices.	Higher initial cost.
Modified Sine Wave	Simple devices with basic motors or heating elements (e.g., power tools, water heaters).	Lower upfront cost.	Can damage or destroy sensitive electronics like laptops, TVs, and modern refrigerators.

For nearly every modern off-grid application, always select a pure sine wave inverter. The minor savings from a modified sine wave model isn't worth the risk of frying your expensive electronics. Quality inverters from trusted brands like Sungrow or Fronius deliver the clean, reliable power you need.

Battery Banks: Your Energy Reservoir

The battery bank is your personal energy reservoir, storing power for nighttime use and cloudy days. Technology here has made huge leaps, with brands like BYD and FranklinWH leading the charge.

Modern lithium-based batteries, specifically Lithium Iron Phosphate (LFP), have massive advantages over older lead-acid technology.

• Deeper Depth of Discharge (DoD): You can safely use a much larger portion of the battery's stored power (80-95% DoD) without causing damage.
• Longer Lifespan: These batteries handle thousands of charge cycles and often last 10 years or more.
• Higher Efficiency: They waste less energy during charging and discharging, meaning more of your solar power is available for use.
• Zero Maintenance: Sealed and maintenance-free, unlike flooded lead-acid batteries.

When choosing your battery bank, it's crucial to match its voltage and capacity to your system's design. Partnering with a knowledgeable supplier like Portlandia Electric Supply ensures you get a UL-compliant battery system that pairs perfectly with your inverter for a safe, dependable energy source.

Sizing Your Solar Array and Battery Bank

Correctly sizing your solar array and battery bank is the single most important calculation you'll make. Get this right, and you’re looking at reliable, year-round power. Get it wrong, and you'll face constant power shortages and drastically shorten the lifespan of your components. We'll move beyond panel wattage and into a real-world sizing method that accounts for your specific location, climate, and desired energy security. For a broader look at power options, resources covering solar power supply options and sizing can provide additional context.

Sizing Your Solar Array With Peak Sun Hours

Your solar array must power your home during the day and fully recharge your battery bank. To determine the necessary wattage, we use Peak Sun Hours (PSH). PSH is a standardized value representing how many hours a location receives solar energy equivalent to 1,000 watts per square meter.

Here’s the formula: Total Daily Watt-Hours ÷ Peak Sun Hours = Required Solar Array Wattage

Let’s assume your load calculation is 10,000 Wh per day, and your location gets an average of 4 PSH in the winter (always size for your worst-case month).

• Calculation: 10,000 Wh / 4 PSH = 2,500 Watts

This is the bare minimum. Real-world inefficiencies must be factored in.

Critical Mistake to Avoid: Never use the annual average PSH for calculations. Your system must work in December, not just July. Always design around the lowest monthly PSH value for your location to guarantee power when you need it most.

To account for real-world losses (dust, wire resistance, heat), we apply a standard derating factor of 1.25.

• Real-World Sizing: 2,500 Watts x 1.25 = 3,125 Watts

For this scenario, you'd need a solar array of at least 3,125 watts to reliably power your life and recharge your batteries during the darkest time of year.

Sizing Your Battery Bank for Autonomy

Your battery bank is your energy insurance. Sizing it correctly balances security and budget. The key factors are your daily energy use, desired days of autonomy, battery depth of discharge (DoD), and system voltage.

• Days of Autonomy: How many days your system can run essential loads without sun. 2-3 days is a solid start for most U.S. locations. For overcast regions like the Pacific Northwest, 4-5 days is a smart move.
• Depth of Discharge (DoD): How much of the battery’s capacity you can safely use. Modern LFP batteries, like those from Renon Power, boast an impressive 90-100% DoD. Learn more about Renon Power energy storage systems.
• System Voltage: Off-grid systems are typically 12V, 24V, or 48V. For larger loads, higher voltage systems are more efficient.

Let's use our 10,000 Wh daily load, designing a 48V system with 3 days of autonomy and LFP batteries at 90% DoD.

• Total Energy Storage Needed: 10,000 Wh/day * 3 days = 30,000 Wh
• Adjust for DoD: 30,000 Wh / 0.90 DoD = 33,333 Wh
• Convert to Amp-Hours: 33,333 Wh / 48V = 695 Ah

You’d need a 48V battery bank with at least 695 amp-hours of capacity. Undersizing the battery bank is the most common and expensive mistake; it forces deep, stressful cycles that destroy batteries prematurely.

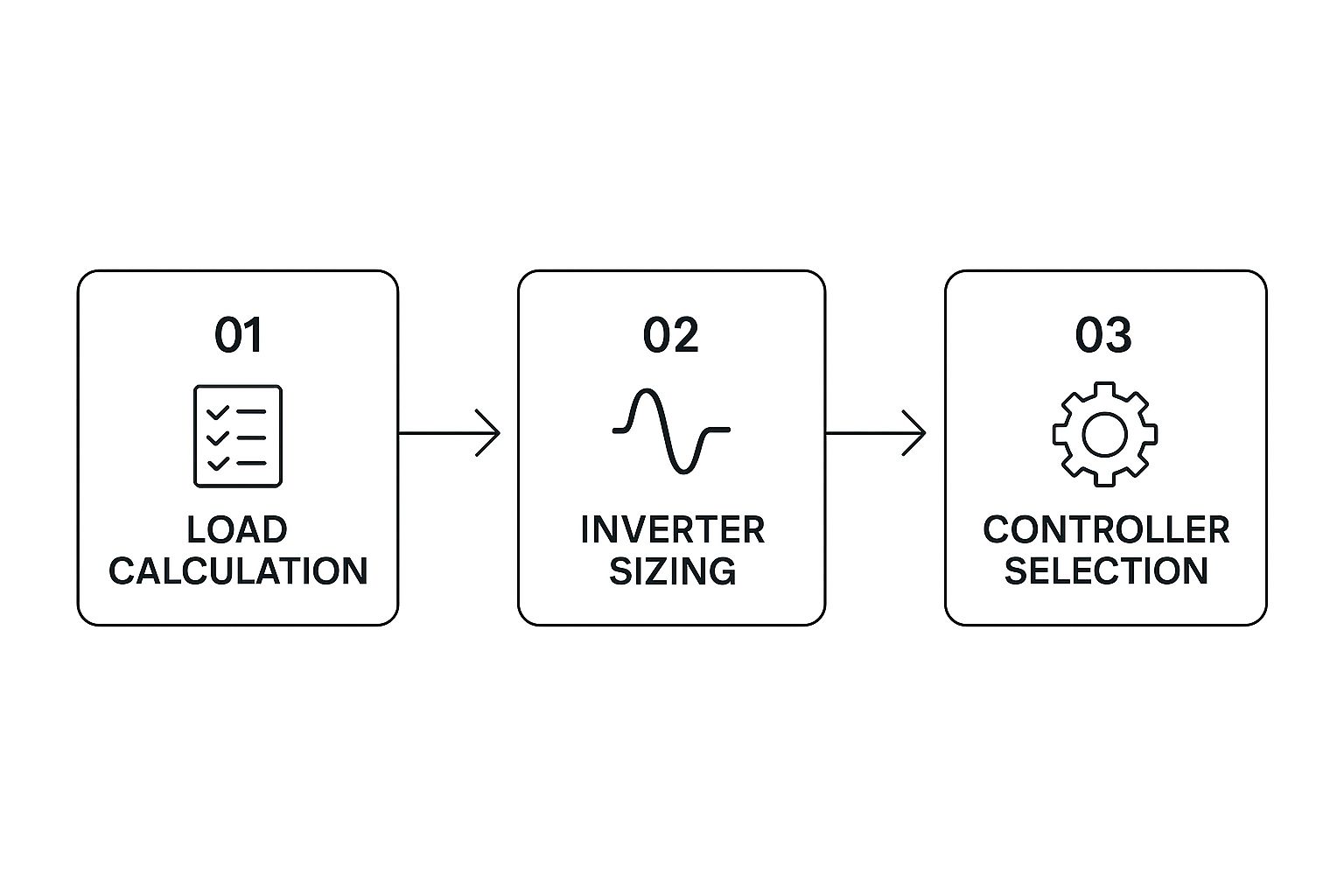

This image illustrates how accurate calculations lead directly to picking the right-sized components.

This load-to-hardware process is the backbone of a successful build. The world’s cumulative solar capacity shot past 2.2 terawatts (TW) by the end of 2024, a huge leap from 1.6 TW the year before, powered by 600 GW of new installations in 2024 alone. This proves how mature and accessible solar technology has become.

System Layout and Safety Compliance

A well-designed system is a safe system. After sizing your components, the final and most critical phase is planning the physical layout to ensure every connection meets strict safety standards. This is what separates a professional-grade setup from a hazardous one, preventing costly rework, failed inspections, and serious electrical dangers.

The first step is deciding where your solar panels will go. Whether on a roof or a ground mount, the goal is to maximize sun exposure while ensuring the structure can handle wind and snow loads. In the northern hemisphere, this means orienting panels to true south.

Proper panel mounting is a structural and safety issue. Using high-quality, UL-listed racking is non-negotiable. This ensures your array is secure for the next 25+ years.

Wiring and Overcurrent Protection

Wiring is the most technical part of an off-grid design, where mistakes have severe consequences. Sizing wires correctly is fundamental for minimizing voltage drop and preventing overheating, a massive fire hazard. Always refer to an ampacity chart and account for wire run length to pick the right gauge.

Equally important is overcurrent protection (fuses and breakers). These safety valves instantly cut power during a short circuit or overload, protecting your components.

• Fuses and Breakers: Install them between the solar array and charge controller, controller and battery bank, and batteries and inverter.
• Sizing: A good rule of thumb is 1.25 times the maximum continuous current of the circuit.

Pro Tip: A professional system diagram is your roadmap to a safe installation. It visually lays out every component, wire, and fuse. Getting a NABCEP-certified design review before you buy components can save you thousands in costly mistakes.

Grounding and Critical Safety Codes

Proper system grounding is a non-negotiable safety requirement. It provides a safe path for fault currents to the earth, preventing electrical shock and protecting equipment. Both panel frames and electrical equipment must be bonded and connected to a dedicated grounding electrode.

Adherence to the National Electrical Code (NEC) is essential for a safe, legal installation.

Compliance Watchout: NEC Article 690

A critical requirement in modern solar design is rapid shutdown (NEC 690.12), a safety feature that allows first responders to quickly de-energize a rooftop solar array. Off-grid systems also require clearly labeled disconnects for all power sources.

• Main PV System Disconnect: A visible, accessible switch to shut down power from the solar array.
• Battery Disconnect: A dedicated disconnect to isolate the battery bank.
• Inverter Disconnect: A switch to safely disconnect the inverter.

Skipping these safety features is a code violation and a huge safety risk. A design review from a NABCEP-certified professional at Portlandia Electric Supply ensures your plans are compliant from the start. We can help build a bill of materials (BOM) with all code-compliant components.

For a comprehensive review of your project, Request a Quote and our team can provide the expert guidance you need.

Common Off-Grid Design Questions

Even with a meticulous plan, questions arise. Here are answers to common concerns from installers, developers, and homeowners.

How Many Days of Autonomy Do I Really Need?

This is a balance of cost versus risk tolerance. For most U.S. locations, three days of autonomy is a reliable target. However, in overcast regions like the Pacific Northwest or the Great Lakes, stretching that to four or five days is a smart investment. In sun-drenched areas like the Southwest, two days might be sufficient. Honestly assess your local weather patterns to decide on your desired energy security.

Can I Start Small and Expand My System Later?

Yes, but it requires smart upfront planning. A scalable system is achievable only if you oversize the core infrastructure from the start.

Expert Tip: If you plan to expand, invest in a hybrid inverter and an MPPT charge controller that can handle your future, larger solar array. It's far cheaper to buy an oversized "brain" for your system now than to replace a maxed-out inverter later.

What Are the Biggest Hidden Costs in an Off-Grid System?

Your component list is only part of the final bill. Overlooked costs can sink a budget.

• Trenching and Conduit: Digging trenches and running conduit for a ground-mount array can be a significant labor and equipment expense.
• Specialized Racking: High-wind or heavy-snow areas require heavy-duty, premium-priced racking.
• Battery Shipping: Lithium batteries are heavy and classified as hazardous materials, meaning freight costs can be substantial. Portlandia Electric Supply helps with bulk quoting and freight optimization services to manage this.
• Professional Review: A NABCEP-certified review of your plans for code compliance is not a cost—it's an investment to avoid failed inspections and expensive rework.

Do I Need a Backup Generator?

For ultimate resilience, a backup generator is a fantastic addition. It provides a safety net for rare, extended periods of bad weather or for running power-hungry tools without draining your batteries. Modern hybrid inverters from top brands like Sol-Ark or Sungrow integrate seamlessly with a generator, automatically firing it up to recharge your batteries when they reach a low state-of-charge. For more detail, our guide to solar energy solutions offers great context.

---
