Solar Panel Junction Boxes: A Definitive Guide for Installers & EPCs

Flip over any solar panel, and you'll find a small, unassuming plastic box. That's the solar panel junction box—a weatherproof enclosure protecting the panel's most vital electrical connections. For installers, EPCs, and procurement managers, this component is the critical handoff point where power leaves the module and enters the balance of system. It's also the first line of defense against the elements.

This guide provides the actionable, field-tested knowledge you need to specify, install, and troubleshoot solar panel junction boxes. We'll cut through the marketing fluff to focus on what matters for project bankability, NEC compliance, and long-term performance, ensuring every solar asset you build is safe, reliable, and profitable.

The Unsung Hero of Every Solar Project

For seasoned installers and EPCs, the junction box is one of those components that's easy to overlook until it fails. But when it does, it’s a big problem. This isn't just a simple plastic case; it’s the nerve center of the solar module.

A cheap or poorly made junction box doesn't just hurt performance—it can cause catastrophic system failures, lead to a failed inspection, and force you into costly, reputation-damaging truck rolls to fix it. Knowing what makes a good junction box is a non-negotiable for anyone specifying or installing solar arrays that are built to last.

While its main job is to get the DC power safely out of the module, that single task involves several critical responsibilities that directly impact your project's success. Let's break down exactly what this little box does for you.

Key Functions of a Solar Panel Junction Box

The junction box is a multitasker, handling everything from safety to performance optimization. Here’s a quick look at its core responsibilities and why they matter on the ground.

Function	Impact on Project Success
Electrical Safety	Provides a secure, insulated housing for all terminations, preventing short circuits, arc faults, and shock hazards in compliance with NEC standards.
Power Consolidation	Gathers the output from all internal cell strings into a single, manageable connection point for the system.
Environmental Shield	Seals out moisture, dust, and UV rays that would otherwise corrode connections and lead to premature system failure.
Thermal Management	Houses bypass diodes that prevent dangerous "hotspots" from shading, protecting the panel from permanent damage.

Simply put, a high-quality junction box is your best insurance against the most common electrical failure points in any PV system.



For Developers & EPCs: Investing in modules with robust, UL-certified junction boxes is a direct investment in the long-term bankability and safety of the entire solar asset. It's a key detail that impacts LCOE and reduces O&M risk.

This renewed focus on component quality is why the market is heating up. The global solar panel junction box market was valued at around USD 1.61 billion in 2024 and is expected to more than double, hitting USD 3.21 billion by 2033.

This growth isn't just a number; it reflects the industry’s realization that durable, reliable components are key to meeting rising electricity demands sustainably. You can find more details in the solar junction box market forecast on MarketDataForecast.com.

This guide is designed to give you the practical, field-tested knowledge you need to cut through the noise and make smart decisions, ensuring every project you deliver is rock-solid.

Breaking Down the Junction Box: Anatomy and Materials

For any seasoned installer or procurement manager, knowing what’s inside a solar panel junction box is non-negotiable. It’s easy to dismiss this little plastic box on the back of a panel, but its internal guts and the quality of its materials are a direct reflection of a solar panel's long-term safety and reliability. When a junction box fails, you're not just looking at lower output—you're looking at a serious risk of catastrophic damage and an expensive truck roll to fix it.

To make smart buying decisions, you have to look past the spec sheet and understand the parts. At its heart, the junction box is a small but mighty fortress, built to protect the most critical electrical handoff in the entire solar array.

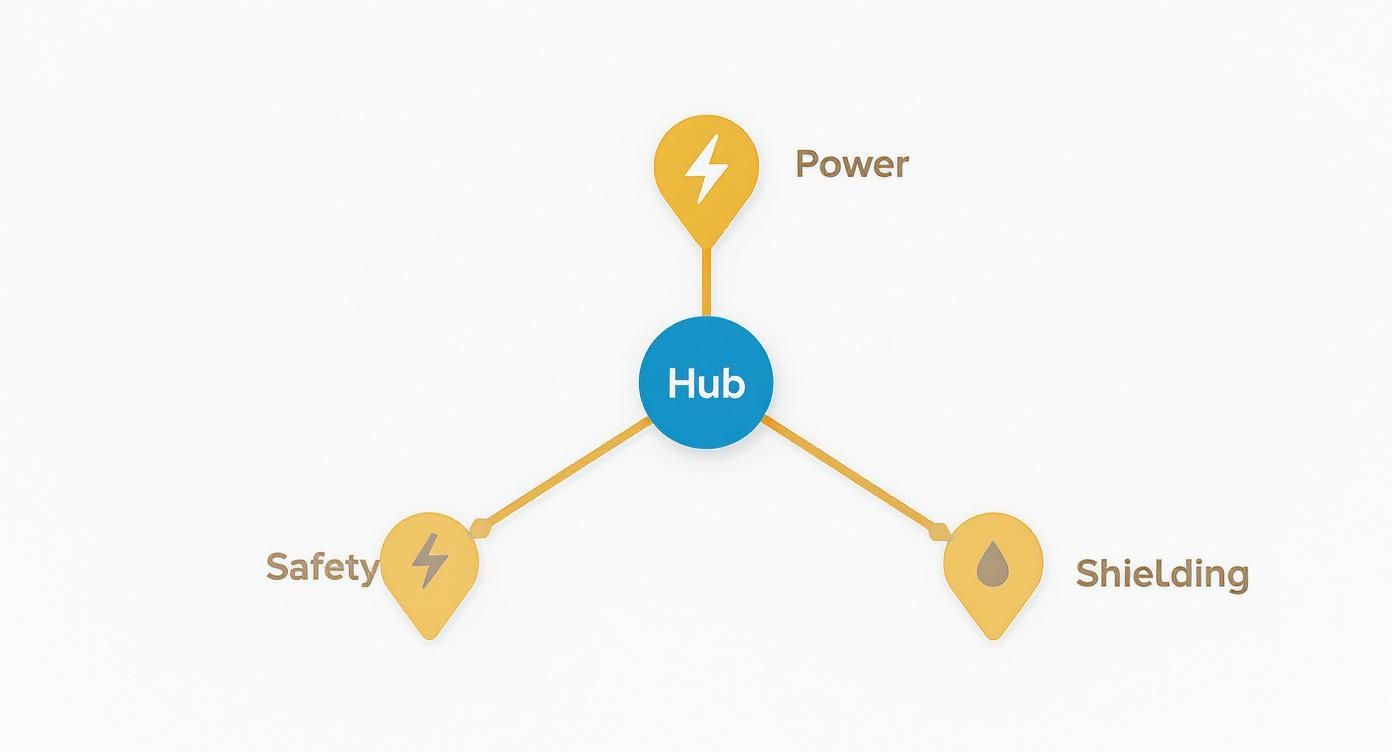

This infographic gives you a quick visual on the core jobs a junction box handles, from managing power flow to providing a tough environmental shield.





As you can see, it's doing a lot more than just housing a few wires. It's an essential piece of the puzzle for both protecting the panel itself and ensuring power gets where it needs to go safely.

The Housing and Seal

The first line of defense is the box's outer shell. It's typically molded from high-performance plastics like Polyphenylene Oxide (PPO) or Polyphenylene Ether (PPE). These aren't your everyday plastics; they're specifically chosen for their incredible UV resistance, ability to handle extreme heat, and flame-retardant properties. These things have to survive decades of abuse on a hot roof, after all.

Just as important is the seal. A good junction box will have a high-quality silicone or rubber gasket that keeps it watertight and dust-proof, which is what earns it an IP rating like IP67 or IP68. A cheap gasket will fail, letting moisture in that leads to corrosion and shorts—a nightmare scenario for any installer.

Internal Terminals and Connections

Crack it open, and you'll find the terminals. This is where the delicate ribbon wires coming off the solar cells meet the beefier DC cables that head out to the rest of the system. These terminals are usually made of copper or tin-plated copper to ensure a solid connection with minimal resistance and to fight off corrosion. Sloppy terminal design is a major red flag, as it can cause resistance to build up, create heat, and eventually lead to failure.

The Critical Role of Bypass Diodes

Now for the real brains of the operation: the bypass diodes. Think of them as one-way gates for electricity. If a single leaf or a patch of bird droppings shades a section of the panel, that area can’t produce power anymore. Worse, it starts acting like a roadblock, or a resistor.

This blockage forces the current from the healthy cells to pile up, creating a dangerous "hotspot" that can literally burn out and destroy the panel cells. Bypass diodes are the heroes here. They give the electricity a detour, an alternate path to flow around the shaded section. This not only protects the panel from damage but also minimizes the power loss for the entire string.

A standard 60-cell or 72-cell panel will almost always have three bypass diodes, one for each internal group of cells. The quality of these diodes is absolutely fundamental to the panel's long-term health.



Pro Tip for Installers: A failing bypass diode is a silent killer of system performance. When quoting a job, pointing out that your specified panels use high-quality diodes from reputable names like Amphenol or TE Connectivity isn't just a sales pitch. It's a way to show you're protecting your client's investment and standing behind the quality of your work.

Cables and Connectors

Finally, the junction box is the exit point for the DC output cables. These cables are permanently attached and sealed to maintain that all-important weatherproof rating. On the ends, you'll find the connectors—usually the industry-standard MC4 type—that allow installers to securely snap panels together in a series.

The quality of these connectors and the integrity of their seals are the last crucial checkpoint. A poorly-seated connector is an open invitation for moisture, which leads to all sorts of problems down the road. Taking a few extra seconds during installation to ensure these are properly mated is one of the easiest ways to prevent future headaches.

Choosing the Right Junction Box Technology





Not all solar panel junction boxes are created equal. The technology inside that little plastic box has a massive impact on a project's long-term performance, ease of service, and overall bankability.

For any serious installer or developer, knowing the difference between designs is non-negotiable. You need to spec the right components that line up with the project's real-world goals—from the upfront cost to what it's going to take to keep it running for the next 25 years.

The choice usually boils down to a classic trade-off: do you want maximum, bulletproof environmental protection, or do you want the ability to fix things in the field? This leads us to the two main designs you'll see everywhere: potting and non-potting.

And just to shake things up, the rise of module-level power electronics (MLPE) has thrown a third contender into the ring: smart junction boxes. These aren't just passive connection points; they're active brains on the back of every panel.

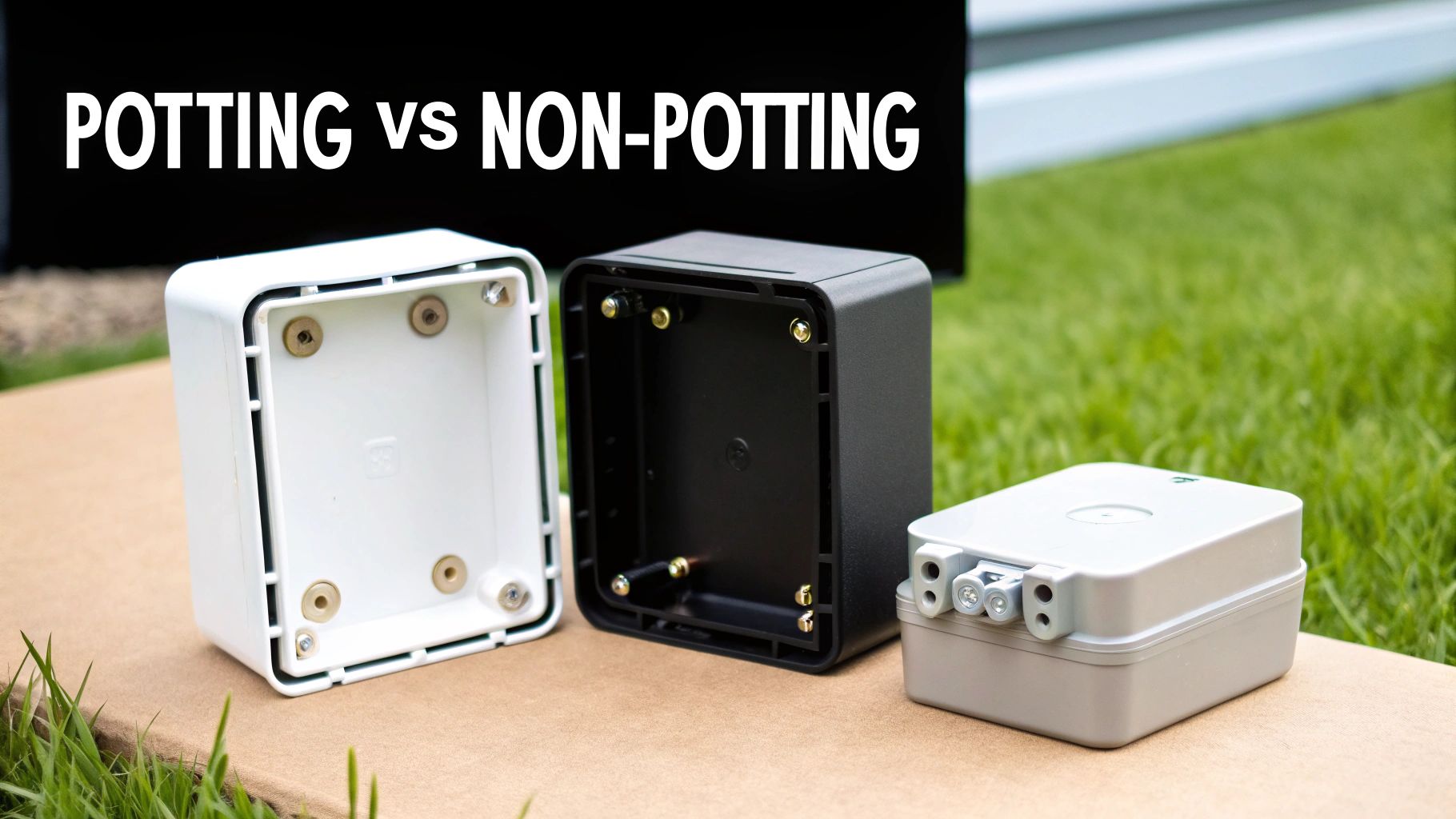

Potting vs. Non-Potting Designs



The core difference between these two conventional types is simple: how they protect the guts of the box from the elements.

Potting junction boxes are built like a tank. In this design, all the critical bits—the terminals, diodes, and connections—are completely submerged and sealed in a solid resin, usually a tough silicone or epoxy. This "potting" process creates a rock-solid, impenetrable barrier against moisture, dust, and vibration. It's set-it-and-forget-it, military-grade protection.

• Key Feature: All internal components are permanently entombed in resin.
• Best For: Projects in punishing environments. Think coastal installs with salt spray, high-humidity climates, or places with extreme temperature swings. If long-term reliability is priority number one, this is your go-to.
• Installer Considerations: Field repairs are a complete non-starter. If a bypass diode fails, the entire module is likely toast. You can't get to the components without destroying the box, which would instantly void the panel's warranty.

Non-potting junction boxes, on the other hand, are designed with the service tech in mind. They are still tightly sealed with high-quality gaskets to hit those IP67 or IP68 ratings, but the internal components are accessible. Just pop the cover off. This means a skilled technician can potentially swap out a fried bypass diode on-site, a procedure that could save a module from the scrap heap.

• Key Feature: You can access the internal parts under a sealed cover.
• Best For: Projects where having a field service option is a priority. This can potentially lower module replacement costs and O&M headaches over the system's lifetime.
• Installer Considerations: The weak point is the mechanical seal. Over 25+ years, there's a slightly higher risk of a gasket failing or an improperly sealed cover letting moisture in. It's a small risk, but it's there.

The Rise of Smart Junction Boxes

Smart junction boxes are a different beast entirely. They integrate MLPE—the smarts—directly onto the panel itself. These aren't just dumb boxes passing current; they are active electronic devices that optimize, monitor, and manage each module's output.

They pack a serious punch, often including:

• Module-Level Monitoring: Giving you real-time performance data for every single panel in the array.
• Power Optimization: Fighting back against shading or module mismatch to squeeze every last watt out of the system.
• Rapid Shutdown: Making it easier to comply with NEC safety codes by de-energizing the array right at the module.



Guidance by ICP



• For Developers: Smart boxes mean a higher upfront cost per module, no question. But the long-term O&M savings can be huge. The ability to pinpoint an underperforming module from your desk and maximize the system's energy yield can lead to a much better Levelized Cost of Energy (LCOE), making the project far more attractive to investors.
• For Installers: These can be a lifesaver for meeting NEC rapid shutdown rules, but they also introduce more complex electronics into the mix. You absolutely have to stick with established, bankable brands like TE Connectivity or Amphenol known for rock-solid electronics. The last thing you want is to introduce a new failure point. Sourcing through a trusted distributor like Portlandia Electric Supply guarantees you're getting authentic, warrantied parts.

Procurement Checklist: Junction Box Technology Comparison

Technology	Key Feature	Best For (Application)	Installer Considerations
Potting	Components permanently sealed in resin	Harsh environments (coastal, high humidity) where maximum durability is required.	No field serviceability. A component failure often requires module replacement.
Non-Potting	Accessible components under a sealed cover	Projects where field serviceability is valued to potentially lower long-term O&M costs.	Relies on a mechanical gasket seal, which has a small theoretical risk of failure over time.
Smart	Integrated MLPE (optimization, monitoring)	Maximizing energy harvest in complex arrays (shading) and simplifying NEC rapid shutdown compliance.	Higher upfront cost and adds electronic complexity. Brand reliability is paramount.

Ultimately, whether you choose the rugged simplicity of a potted box, the serviceability of a non-potted design, or the advanced functionality of a smart box, the decision should be driven by the project's financial model, environmental conditions, and long-term service strategy.

Navigating Critical Specs and Compliance Standards



For any solar project to pass inspection and perform reliably for decades, you absolutely have to know the specs and standards for solar panel junction boxes. Datasheets are packed with numbers and acronyms, but for the folks buying the gear and leading the install, these aren't just suggestions—they're the rules of the game.

Getting these details right dictates safety, bankability, and National Electrical Code (NEC) compliance. This is where a smooth, profitable project is born, and where one plagued by failed inspections and costly rework is avoided. Misread a rating or grab a non-certified part, and your entire job can come to a screeching halt.

Demystifying IP Ratings

The first spec you'll always see is the IP rating. It stands for Ingress Protection, and it’s a simple, two-digit code that tells you exactly how well an enclosure protects its guts from dust and water.

• First Digit (Solids): This number runs from 0 to 6. For a solar junction box, you should never, ever see anything less than a 6. A 6 means it’s completely dust-tight, which is non-negotiable for keeping contaminants from causing shorts or corrosion over the panel's 25-year lifespan.
• Second Digit (Liquids): This scale goes from 0 to 9. The most common ratings you'll find in the wild are IP67 (it can handle being submerged in up to 1 meter of water for 30 minutes) and IP68 (it can be continuously submerged under specific conditions).

For pretty much any rooftop or ground-mount system, an IP67 or IP68 rating is the gold standard. It ensures the connections inside stay clean and dry through years of rain, snow, and even the occasional pressure washing.

The Importance of UL Certification



While IP ratings handle the weather, UL certification is all about electrical safety. The big one you need to look for is UL 1741, which covers inverters, controllers, and everything else in a distributed energy system. For junction boxes specifically, UL 3730 is another crucial standard that vets them for PV applications.

This isn't just a sticker. A UL mark means the product has been through the wringer—independently tested to meet tough requirements for its construction, materials, and how it behaves when things go wrong. In almost every jurisdiction in the U.S., no UL mark means no passing inspection. Period.

Voltage and Current Ratings



Every junction box has a maximum system voltage and current it can handle. These limits are set by the box’s internal clearances, the quality of its terminals, and what its bypass diodes can take.

• Maximum System Voltage: Big utility-scale projects are often pushing 1500V DC these days for better efficiency, while residential and commercial jobs usually stick to 600V or 1000V DC. The junction box must be rated for the system’s maximum voltage to prevent arcing or insulation failure.
• Current Rating: This tells you the max amperage the box and its diodes can safely manage. If you push past this rating, the bypass diodes will cook themselves, creating dangerous hotspots and killing the panel's output.



Compliance Watchout: The Mismatch Mistake
A classic, costly mistake is mismatching component ratings. Pairing a 1500V-rated module with wire that's only rated for 1000V is an instant code violation and a massive safety hazard. Always double-check that the junction box, connectors, and the solar PV wire itself are all rated for the system's maximum voltage.



To ensure these critical parts meet their specs and last for the long haul, manufacturers rely on solid quality assurance in manufacturing. At the end of the day, following these specs isn't just about passing an inspection—it's about building a safe, reliable, and bankable power plant.

Installation Best Practices and Common Failure Points





Moving from datasheets to the job site, the real-world success of any solar panel junction box depends entirely on the installer's hands. A top-tier component means nothing if it's mishandled. For the technicians on the roof, sticking to best practices is the difference between a reliable, 25-year asset and a project riddled with dangerous, expensive failures.

A careful, methodical approach isn't just a good idea—it's non-negotiable. It ensures the box maintains its IP rating, all connections are rock-solid, and the system is shielded from the most common field failures. Every step counts.

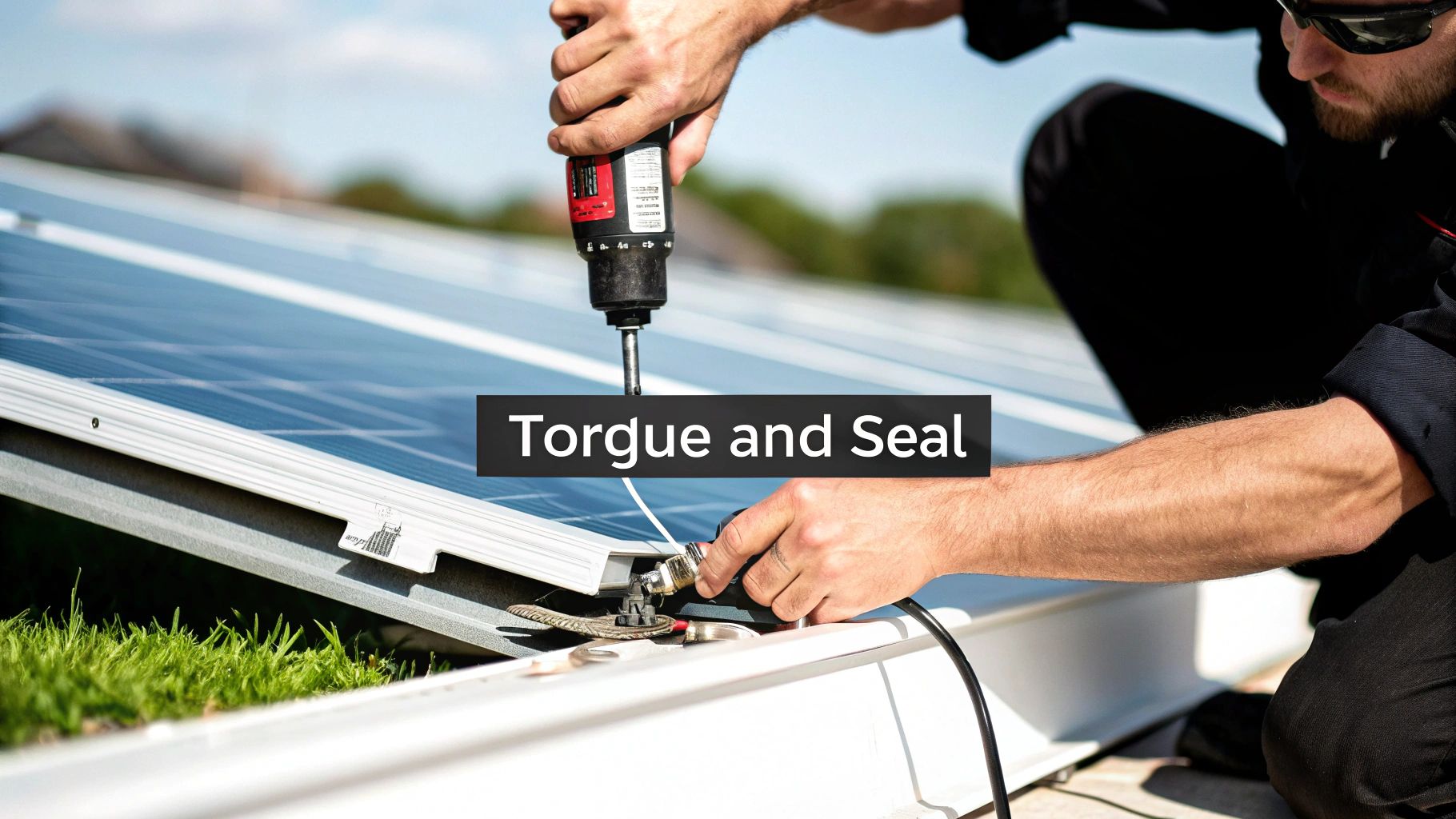

Handling and Connection Checklist for Installers



Sloppy work is the number one enemy of a junction box. A few extra seconds of care on the roof can prevent years of truck rolls and headaches down the road.

• Inspect Before You Hoist: Before a panel even leaves the ground, give its junction box a quick once-over. Check for any cracks in the housing or damage to the cables and connectors from shipping.
• Proper Strain Relief is a Must: Don't let cables hang loose, pulling on the connectors. Secure all wiring to the racking with UV-rated zip ties or proper wire clips. Always leave a gentle drip loop so water can't track straight into the connection.
• Listen for the "Click": When mating MC4 connectors, push them together firmly until you hear and feel that audible "click." That sound is your confirmation that the internal locking tabs are engaged, creating a secure, weatherproof seal. A loose connection is just an open door for moisture.
• Respect the Torque Wrench: If you're working on a box that needs manual tightening (less common these days), use a calibrated torque wrench. Overtightening will crack the housing, but under-tightening creates loose connections, which leads to arcing and heat. Both are bad news.

Common Failure Modes and How to Prevent Them

After years in the field, you start to see the same junction box failures over and over. Knowing what to look for is half the battle. Most problems boil down to two culprits: moisture and heat. Both are almost always preventable.



Expert Tip for Procurement: The easiest way to avoid field failures is to buy right in the first place. Specifying modules from Tier 1 brands like Sungrow, BYD, or Fronius ensures you're starting with quality-assured components that have already been put through the wringer. Portlandia Electric Supply's bundled freight and kit pricing makes sourcing these top-tier components efficient and cost-effective.



Water Ingress and Corrosion

This is the undisputed champion of junction box killers. Moisture creeps in through poorly sealed cable glands, cracked housings, or connectors that weren't fully locked. Once inside, it's game over. The terminals corrode, resistance spikes, and you're looking at power loss and eventual short circuits.



• Prevention: Double-check every single connector seal. Stick with modules that have high IP ratings (IP67 or IP68) and robust, factory-sealed cable entries.



Bypass Diode Failure

Diodes can burn out from overheating, usually caused by prolonged shading on a section of the panel or a simple manufacturing defect. A failed diode can either open up, killing a third of the panel's output, or it can short out, creating a dangerous reverse current.



• Prevention: Use high-quality modules with diodes from reputable manufacturers. During the design phase, do your best to minimize predictable shading to reduce long-term stress on those diodes.

Frequently Asked Questions About Solar Panel Junction Boxes



We get a lot of questions from pros in the field. Here are the answers to the most common ones we hear, covering everything from boots-on-the-roof repairs to specifying components for a multi-megawatt project.

Can I Replace a Damaged Solar Panel Junction Box in the Field?

The short answer? You really, really shouldn't.

While it might seem possible, trying to replace a solar panel junction box yourself is a high-stakes gamble. That box is bonded to the panel's backsheet in a factory—a process designed to create a permanent, watertight seal that lasts for decades.

Prying it off is almost guaranteed to damage the panel’s lamination, which instantly voids the manufacturer's warranty. Worse, you’ll compromise the weatherproofing. Once moisture gets in, it’s game over. Corrosion will set in, leading to a total system failure.

For almost any junction box issue, the proper and safest move is to replace the entire module under warranty. If you're in a bind and a field replacement is the only option, it must be done by a certified tech with specialized tools, following the manufacturer’s instructions to the absolute letter.

What Do Different IP Ratings Mean for My Project?

IP ratings (short for Ingress Protection) are your best friend for understanding how tough a junction box is. This two-digit code tells you exactly how well the enclosure will stand up to the elements.



• First Digit (Solids): This number, from 0-6, measures how well it keeps out things like dust and dirt. For any serious solar installation, a 6 is the only number you want to see. It means the box is completely dust-tight.
• Second Digit (Liquids): This one, from 0-9, is all about water. You’ll typically see IP67, meaning the box can survive being submerged in 1 meter of water for 30 minutes, or IP68, which can handle continuous submersion.



For pretty much any rooftop or ground-mount system, an IP67 or IP68 rating is the industry standard. It's the baseline for ensuring long-term reliability and preventing the kind of moisture damage that can kill a system’s performance.

As a procurement manager or EPC, simply making IP67 or IP68 a mandatory spec is one of the easiest ways to de-risk a project. It’s a small detail that ensures bankability right from the component level.

How Do Bypass Diodes Work and Why Are They Important?

Think of bypass diodes as the unsung heroes of your solar panel. They are basically electrical detours that prevent disaster.

Here’s the scenario: a leaf, bird dropping, or a shadow falls on a group of cells. Those cells stop producing power and, even worse, they turn into a roadblock, resisting the flow of current from all the other healthy cells.

This electrical traffic jam creates a "hotspot" that can literally cook the panel from the inside out, causing permanent damage. The bypass diode opens up an alternate route for the current to flow, going around the shaded roadblock. It keeps the energy moving, protects the panel, and minimizes power loss for the whole module.

Most modern panels have three bypass diodes, each one protecting a different string of cells. They are absolutely critical to the panel's health, safety, and lifetime output.

Are Smart Junction Boxes Worth the Extra Cost?

Smart junction boxes are a major leap forward, integrating module-level power electronics (MLPE) right into the panel itself. They cost more, but they pack some serious advantages over the standard box.

Here’s what you get:



• Module-Level Monitoring: See exactly what every single panel is doing in real-time. No more guessing.
• Power Optimization: They actively fight power loss from shading or mismatched modules, squeezing every possible watt out of your array.
• Enhanced Safety: Built-in rapid shutdown is a huge benefit, and it's a non-negotiable requirement of the National Electrical Code (NEC) in many areas.

So, are they worth it? On a home with a tricky roof or some afternoon shade, the extra power they generate often makes the investment a no-brainer. For big C&I projects, it’s a balancing act between the higher upfront cost and the long-term gains from more energy and better O&M data. The right call comes down to your site, your design, and your local codes.
