SMA Solar 03-62-1000-2-41-V2

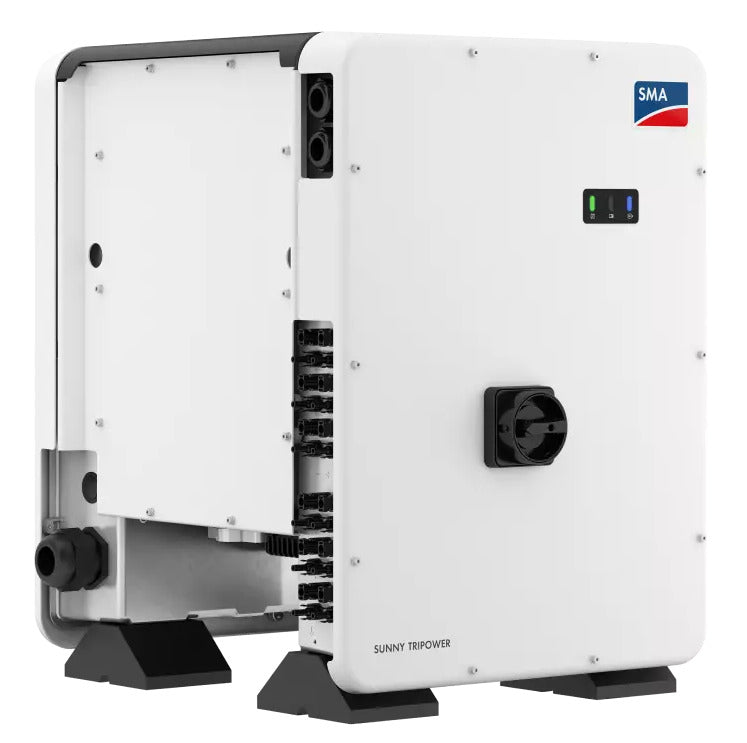

SMA Solar Sunny Tripower Core1 62kW Grid-Tied Inverter

The SMA Solar Sunny Tripower Core1 62kW inverter is designed for optimal energy conversion in commercial solar installations. This inverter supports a massive power capacity while ensuring efficiency and reliability. With its smart monitoring and control capabilities, it stands as a pioneering solution for business rooftops, carports, and large-scale ground-mount solar applications. Targeted at users requiring robust energy solutions, the Sunny Tripower Core1 promises increased safety, flexibility, and system efficiency.

Product Features

Free-Standing Design

The Sunny Tripower Core1 is the first inverter to offer a free-standing design, eliminating the need for additional racking in rooftop and ground-mounted solar projects. This feature greatly simplifies installation and reduces material expenses, aligning with the target keyword of efficiency.

Enhanced Safety Protocols

Incorporating the SunSpec PLC signal for rapid shutdown, the inverter ensures compliance with the latest safety standards, adding layers of protection with DC AFCI and overvoltage protection to maintain user safety.

Advanced Monitoring and Control

Leveraging SMAs proprietary Smart Connected service, the inverter offers proactive monitoring, reducing diagnosis and servicing time. It further enhances system performance with ShadeFix technology, optimizing power output at the string level.

Intelligent String Monitoring

The inverter includes intelligent string performance monitoring to quickly identify and address array performance issues, maximizing energy yield and ensuring consistent performance from solar arrays.

Comprehensive Energy Management

With the inclusion of SMAs ennexOS energy management platform, integrators can provide robust energy solutions spanning multiple sectors, significantly amplifying the return on investment for commercial installations.

How It Works

Operating with cutting-edge technology, the Sunny Tripower Core1 streamlines the conversion of solar energy to usable electricity through its sophisticated components.

MPP Trackers

Equipped with six MPP trackers, the inverter optimizes power extraction from solar modules, catering to diverse string configurations and ensuring maximum output under varying sunlight conditions.

Robust Cooling System

The OptiCool forced convection cooling system employs variable speed fans to maintain optimal temperatures, thereby enhancing performance and extending the inverter's lifespan.

Integrated Plant Control

The device utilizes the Plant Control feature to manage voltage settings and maintain power stability, providing 24/7 operational support and allowing for immediate adjustments based on grid demands.

Specifications

Maximum Array Power	93750 Wp STC
Maximum System Voltage	1000 V
AC Nominal Power	62500 W
Rated Grid Frequency	60 Hz
Efficiency	97.5%
Protection Class	I / IV
Cooling Concept	OptiCool (forced convection, variable speed fans)
Device Dimensions	621 mm / 733 mm / 569 mm (24.4 in x 28.8 in x 22.4 in)
Device Weight	84 kg (185 lbs)
Operating Temperature Range	-25 C ... +60 C (-13 F ... +140 F)
