Schneider Electric RNW865101401

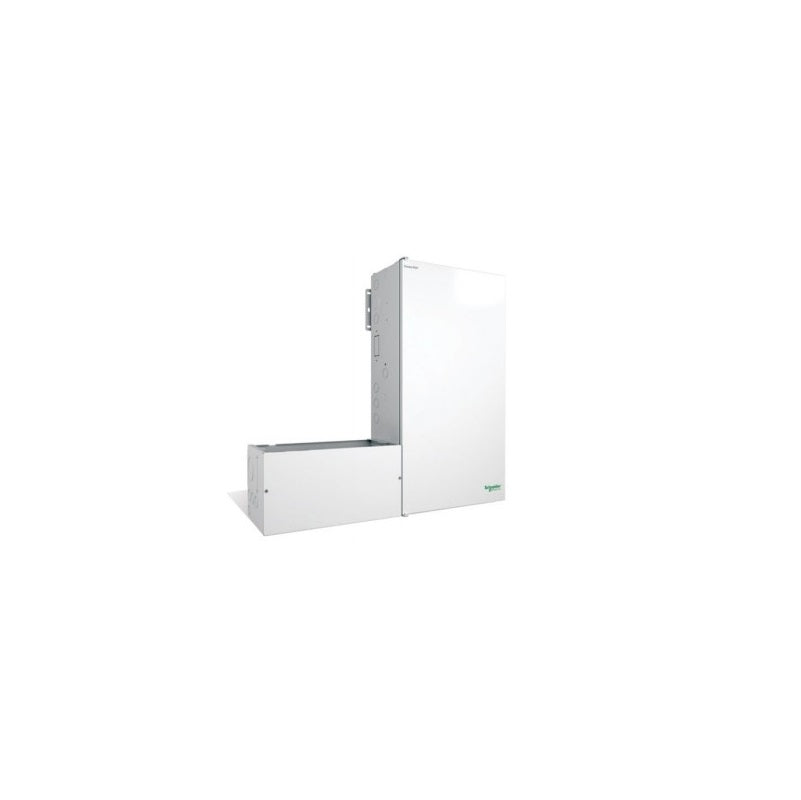

The Schneider Electric Conext XW Power Distribution Panel (PDP) is specifically designed for efficient energy management and integration of multiple devices. This robust panel supports a 250 Amp, 160 Volt Direct Current load without the need for AC circuit breakers. Ideal for ensuring reliable power distribution for various renewable energy applications, this panel is a key component for solar setups that require a high-performance distribution solution.

Product Features

High Capacity Power Handling

The Conext XW Power Distribution Panel can manage a substantial power load of 250 Amps at 160 Volts DC, making it perfectly suited for demanding energy systems. This impressive capacity ensures that users can reliably operate multiple devices without compromising performance.

Robust Construction

This panel is built with durable materials to withstand the rigors of installation in various environments. Its sturdy design guarantees longevity and reliable performance over time, allowing users to have confidence in the product's robustness.

Integrated Bus Bars

Featuring integrated bus bars for positive, negative, and ground connections, the Conext XW features improved safety and ease of installation. This simplifies the wiring process, making it more user-friendly for technicians and installers alike.

Field-Reversible Door Design

The field-reversible door allows for versatile installation options, accommodating different project requirements. This flexibility in design maximizes usability and supports various configurations tailored to the specific needs of the installation environment.

Mounting Hardware Included

Each Conext XW Power Distribution Panel comes with a complete wall mounting kit, ensuring an easy and secure installation process. This inclusion provides peace of mind as users can quickly and confidently set up the panel without needing to source additional hardware.

How It Works

The Conext XW Power Distribution Panel operates by distributing DC power safely and efficiently to connected devices. It acts as a central hub, managing electrical connections while enhancing user convenience and safety through integrated features.

Power Distribution Components

The panel includes multiple bus bars that are essential for distributing power throughout the system. These components play a critical role in ensuring that power is managed effectively and reaches all devices connected to the panel.

Easy Installation Features

With its pre-installed components and comprehensive mounting hardware, the panel significantly simplifies the installation process. This design allows users'"whether skilled technicians or DIY enthusiasts'"to achieve reliable setups with minimal effort.

Safety Mechanisms

Built-in safety features such as ground terminal connections and proper enclosure prevent electrical hazards, making the Conext XW Power Distribution Panel a safe choice for managing significant power loads.
