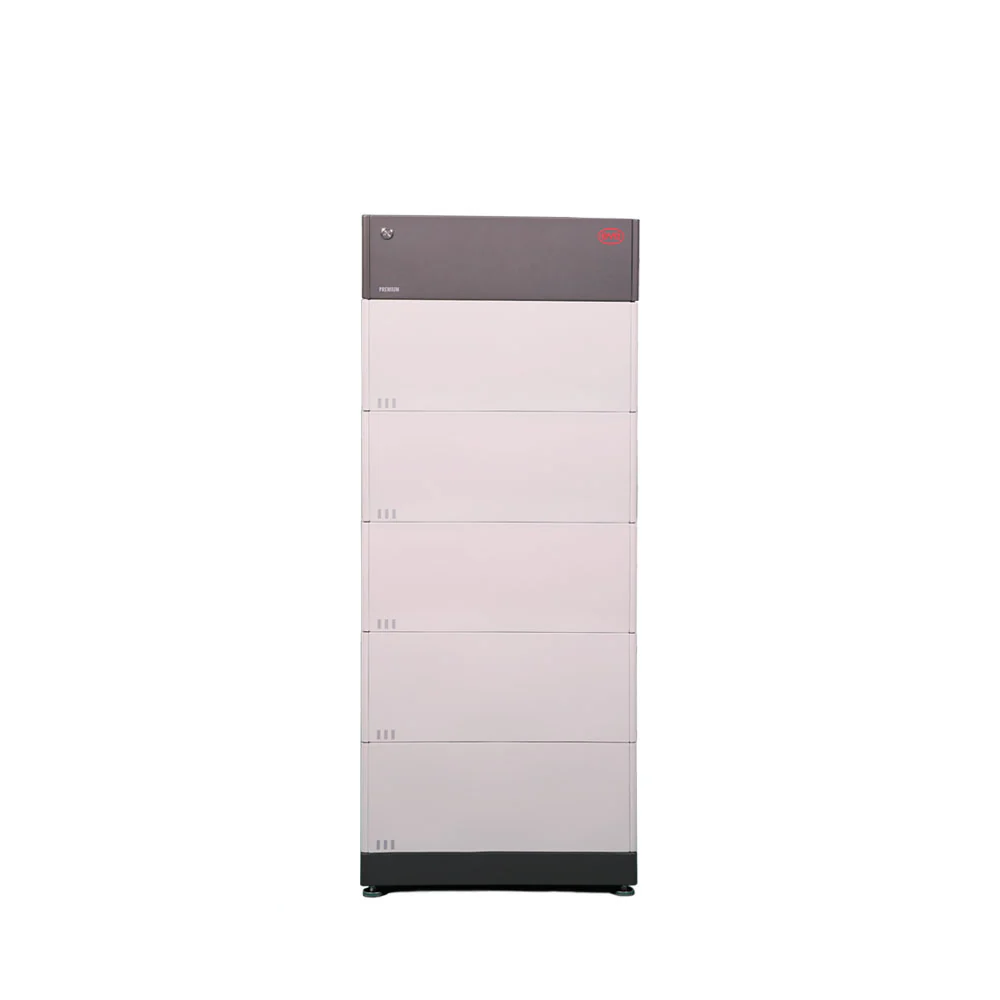

BYD Battery-Box Premium HVL US 20kWh Battery system Includes Five sets of 4kWh LifePO4 Batteries - HVL 20.0

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock

SKU PES-ESS-BTS-0121

BYD Battery-Box Premium HVL US 20kWh Battery system Includes Five sets of 4kWh LifePO4 Batteries - HVL 20.0

$12,557.54 USD

$ $12,557.54 USD

Sale Sold out

Quantity

Secure Payment Methods

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

Request a Free Quote

Technical Details

SKU:PES-ESS-BTS-0121
Brands: BYD
Documents:
Datasheet
Main product family:
- Batteries / ESS
Mpn number: BYD-HVL-5
Height:29.7
Width:58.4
Length:146.1

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

BYD BYD-HVL-5

The BYD Battery-Box Premium HVL is an advanced energy storage solution that features a robust 20 kWh capacity, ideal for both grid-connected and off-grid applications. Designed to provide high-power emergency backup, the BYD-HVL-5 offers superior efficiency with its high-voltage series connection. Safety and longevity are prioritized through the use of cobalt-free lithium iron phosphate battery technology.

Product Features

High-Power Emergency Backup

With the BYD Battery-Box Premium HVL, you gain reliable high-power backup capability, ensuring consistent energy supply during emergencies. The target keyword "BYD-HVL-5" underscores its strength in contingency scenarios.

Advanced High-Voltage Series

This system leverages a true high-voltage series connection to enhance efficiency, using the "BYD" brand's cutting-edge innovation, leading to optimum performance.

Modular Plug Design

Featuring a patented modular plug design, the BYD-HVL-5 eliminates the need for internal wiring, thus offering unparalleled flexibility and simplicity in setup, making it a standout choice.

Cobalt-Free Safety

The BYD-HVL-5 employs a cobalt-free lithium iron phosphate battery, ensuring maximum safety and a longer lifespan, along with excellent energy throughput.

Compatibility with Leading Inverters

Compatible with top high voltage battery inverters, the BYD Battery-Box aligns seamlessly with diverse energy platforms, which is highlighted by the keyword "BYD".

How It Works

The BYD Battery-Box Premium HVL operates with a series of 3 to 8 battery modules, allowing it to scale from 12 kWh to 32 kWh. Its internal plug connection negates additional wiring requirements, facilitating straightforward expansion and adaptation as per power needs.

Flexible System Expansion

Easily expand your energy storage by adding modules, maintaining flexibility to meet increasing energy demands over time.

No Internal Wiring Required

Thanks to its innovative plug design, the system requires no internal wiring, simplifying installation and user experience.

Efficient Operation

The BYD-HVL-5's design ensures high efficiency during both charging and discharging cycles, contributing significantly to energy savings.

Specifications

Battery Module	HVL (4 kWh, 51.2 V, 99.2 lb)
Number of Modules	5
Usable Energy	20 kWh
Max Output Current	50 A
Peak Output Current	75 A, 3 s
Nominal Voltage	256 V
Operating Voltage Range	200~288 V
Dimensions (H/W/D)	57.5 x 23.0 x 11.7 inch
Weight	529.1 lb
Operating Temperature	14 F to 122 F
Battery Cell Technology	Lithium Iron Phosphate (LFP)
Communication	CAN/RS485
Enclosure Protection Rating	IP55
Round-trip Efficiency	A96%
Certification	UL1973 / IEC62619 / FCC / UN38.3
Applications	On Grid / On Grid + Backup / Off Grid
Warranty	10 Years
