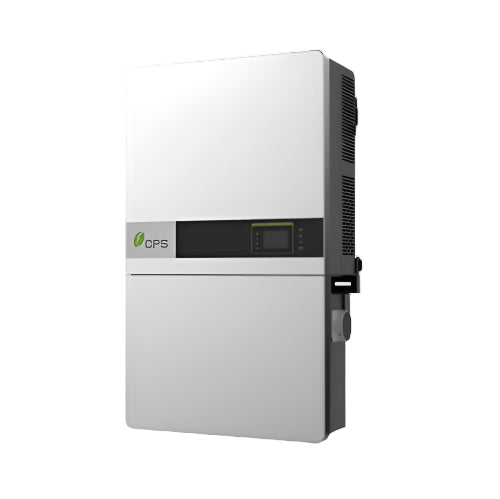

Chint 50kW 3Phase String Inverter 3 MPPT RSD Wirebox 1000VDC - SCA50KTL-DO/US-APS
Chint 50kW 3Phase String Inverter 3 MPPT RSD Wirebox 1000VDC - SCA50KTL-DO/US-APS
Specification
- SKU:PES-SPS-SIV-0406
- Brands: Chint Power
-
Compliance special features:
- Rule 21
- Documents:
- Height: 26
- Length: 100
-
Phase:
- Three Phase
-
Product Description
Chint 50kW Three-Phase Inverter with Flexible MPPT and RSD Features
The Chint Power SCA50KTL-DO/US-APS inverter is an innovative solution designed for grid-tied PV systems. This high-efficiency inverter is perfect for maximizing energy harvest with its advanced 3-level conversion and wide DC input voltage range. Suitable for both residential and commercial installations, it ensures long-lasting performance with its robust construction and smart inverter functions.
Product Features
High Conversion Efficiency
Achieve up to 98.8% efficiency with the inverter's sophisticated 3-level conversion topology featuring Space-Vector PWM, maximizing energy production effectively.
Excellent Grid Adaptability
The SCA50KTL-DO/US-APS supports multiple grid standards including IEEE 1547-2018 and CA Rule 21, offering an adjustable power factor to cater to different grid requirements seamlessly.
Flexible Communication Options
With built-in CPS Modbus RS485 and SunSpec Modbus, along with optional FlexOM gateway card, the inverter offers versatile communication for simplified monitoring and integration.
Wide DC Input Voltage Range
Supporting an operating range from 200 to 950 VDC and a maximum voltage of 1000 VDC, the inverter accommodates diverse PV system designs with ease.
Long Service Life
Incorporating advanced thin-film and electrolytic capacitors, this inverter promises an extended operational life and consistent performance throughout its usage.
How It Works
The Chint inverter combines innovative components to ensure a smooth conversion of photovoltaic energy into AC power. Its efficient design is adaptable for various PV configurations, promoting high energy efficiency.
Main Inverter Enclosure
This robust enclosure houses the critical components, offering protection and support to the entire inverter system, ensuring sustained operation.
Cooling System
Equipped with efficient cooling fans, the inverter maintains optimal temperature conditions, preventing overheating and ensuring longevity.
User-Friendly Interface
The user LCD display and key buttons allow simple interactions, making configuration and monitoring tasks intuitive and straightforward.
Specifications
Maximum Efficiency 98.8% Grid Standards IEEE 1547-2018, CA Rule 21 DC Voltage Range 200-950 VDC MPPT Channels 3 Communication Modbus RS485, SunSpec Operating Temperature -25C to 60C Weight 55 kg Protections DC Arc-Fault, Surge Suppression Enclosure Rating IP65 Warranty 5 years -
