Chint 275kW 3Phase String Inverter 1500VDC 12 MPPT 800Vac (Specify 24 or 36 input) - SCH275KTL-DO/US-800
Chint 275kW 3Phase String Inverter 1500VDC 12 MPPT 800Vac (Specify 24 or 36 input) - SCH275KTL-DO/US-800
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SIV-0334
- Brands: Chint Power
- Documents:
- Height: 27.2
- Length: 15.7
-
Phase:
- Three Phase
-
Shop by inverter type:
- String Inverters
Product Description
-
Chint 3-Phase 275kW String Inverter with 1500VDC and 800Vac

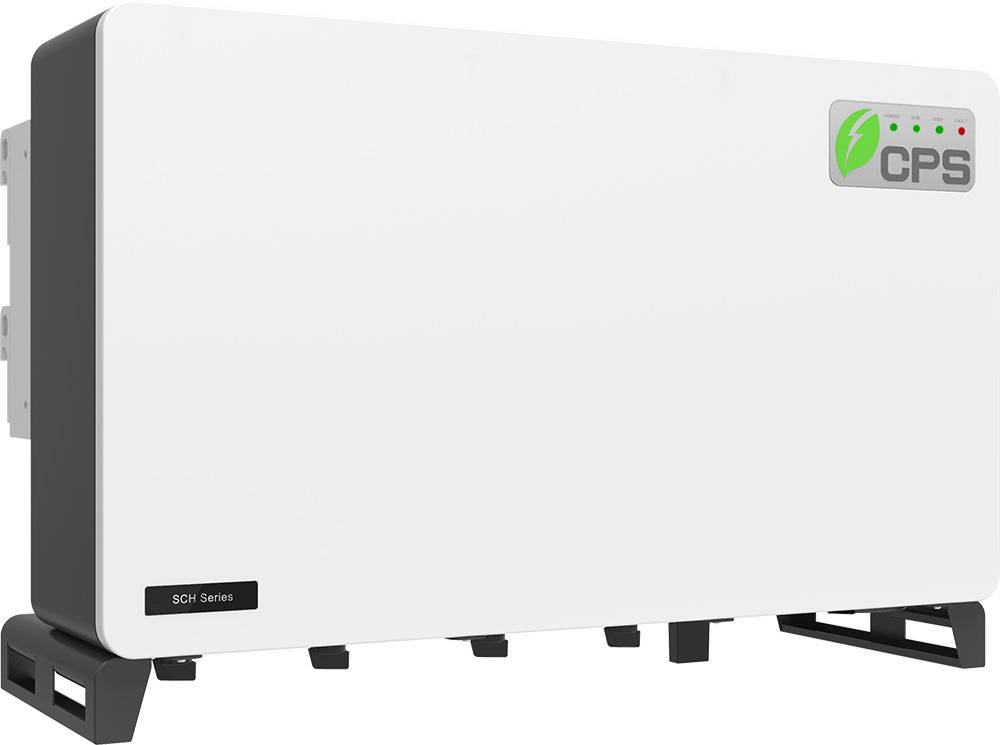

The Chint Power SCH275KTL-DO/US-800 is a high-performance, three-phase string inverter designed for North American ground-mount applications. This inverter offers substantial energy conversion with a selectable maximum AC power output of 250 kW or 275 kW. Engineered for efficiency and durability, its robust design includes 12 MPPTs, wide operational voltage ranges, and a NEMA Type 4X enclosure, making it suitable for varying environmental conditions.
Product Features
Advanced Power Management
Featuring up to 12 MPPTs, this inverter ensures optimal energy harvesting from your photovoltaic array, maximizing output even in complex installation environments.
Selectable Power Output
Designed for flexibility, the inverter allows selection between 250 kW or 275 kW of AC power, making it adaptable to different site requirements.
Durable Outdoor Enclosure
The NEMA Type 4X enclosure offers excellent protection against environmental elements, enabling reliable outdoor installation and performance.
Comprehensive Protection Features
Equipped with numerous protective functions like output overcurrent and reverse polarity protection, this inverter focuses on operational safety and system integrity.
Enhanced User Interaction
With intuitive LED indicators and a Wi-Fi enabled app, the user interface facilitates easy monitoring and management of the inverter's performance.
How It Works
The Chint SCH275KTL-DO/US-800 inverter operates by converting direct current (DC) from solar panels into usable alternating current (AC) for your facility. Its advanced components are designed to efficiently manage energy flow while ensuring safety and reliability.
Multiple MPPT Channels
With 12 independent MPPT channels, the inverter efficiently tracks the maximum power point of different PV sub-arrays, optimizing total energy harvest.
DC and AC Protection Systems
Both DC and AC sides include comprehensive surge protection and switchgear, ensuring the system withstands electrical surges and provides safe operation.
Remote Monitoring and Management
The CPS FlexOM Gateway enhances monitoring and control capabilities, allowing remote diagnostics and firmware upgrades for streamlined maintenance.
Specifications
Max. DC Input Voltage 1500 V Rated Output Voltage 800 Vac Operating Temperature Range -22F to +140F / -30C to +60C Max. Efficiency 99.0% Max. AC Apparent Power 275 kVA Enclosure Protection Degree NEMA Type 4X Number of MPPT Trackers 12 Stand-by Power Consumption 5 W Grid Connection Type 3-phase / PE Certifications UL 1741-SA/SB, IEEE 1547a-2014 -
