Fronius 208-240VAC Single Phase String Inverter - PRIMO 12.5-1
Fronius 208-240VAC Single Phase String Inverter - PRIMO 12.5-1
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SIV-0035
- Brands: Fronius
- Height: 28.5
- Length: 8.9
-
Phase:
- Single Phase
-
Special sections quote cta:
- AFCI
- Width: 20.1
Product Description
-

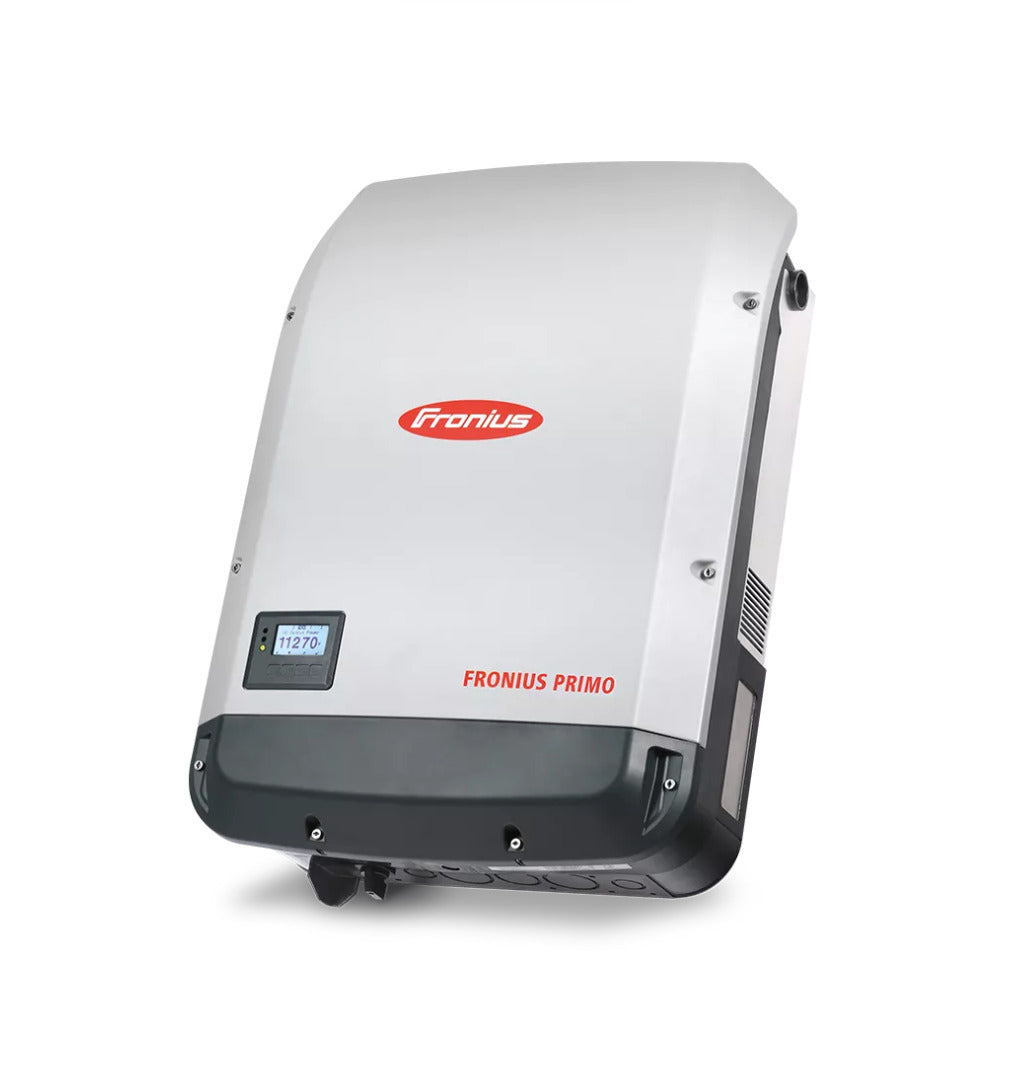

Fronius PRIMO 12.5-1 Single Phase Solar Inverter Overview
The Fronius PRIMO 12.5-1 is a sophisticated single-phase solar inverter designed for high efficiency in residential and small-scale commercial settings. With its robust capacity of up to 15 kW, this inverter is perfect for enhancing solar energy utilization. Key features include a sleek, compact design with dual MPPT tracking, user-friendly monitoring interfaces, and compliance with modern electrical standards.
Product Features
Advanced MPPT Technology
The dual maximum power point tracking (MPPT) technology ensures that the Fronius PRIMO 12.5-1 optimizes energy production, making it highly effective in varying sunlight conditions.
Seamless Monitoring and Connectivity
Equipped with integrated Wi-Fi and web interfaces, this inverter allows seamless monitoring and remote configuration through the Fronius Solar.web platform.
Efficient Power Conversion
Supporting high DC input voltages up to 1,000 V, the inverter achieves a maximum efficiency of 97.9%, ensuring minimal energy loss during solar energy conversion.
Robust Safety Features
With built-in protection measures including AFCI and ground fault protection, the Fronius PRIMO 12.5-1 prioritizes safety alongside performance.
Convenient Installation
The SnapINverter mounting system simplifies installation and maintenance, providing flexibility for both indoor and outdoor setups.
How It Works
The Fronius PRIMO 12.5-1 operates by converting direct current (DC) electricity from solar panels into alternating current (AC), which can be used by home or commercial electrical systems. This inverter ensures efficiency through its advanced technology and safety protocols.
High Efficiency Inverter Technology
This component is crucial for maintaining high-efficiency power conversion, contributing to an overall system efficiency of up to 97.9%.
Smart Monitoring Interfaces
The inverter features built-in interfaces for monitoring, ensuring users can track performance metrics and receive updates remotely through the Fronius app and web services.
Dual MPPT System
The dual MPPT system enables optimal solar energy harvesting by adjusting to varying light conditions and shading across multiple panel strings.
Specifications
Model Number PRIMO 12.5-1 Maximum DC Voltage 1,000 V Nominal DC Voltage 665 V Max Power Output 12,500 VA Frequency Range 50 - 66 Hz Max Efficiency 97.9% Dimensions (W x H x D) 20.1 x 28.5 x 8.9 in Weight 82.5 lbs Cooling System Variable speed fan Protection Rating NEMA 4X -
