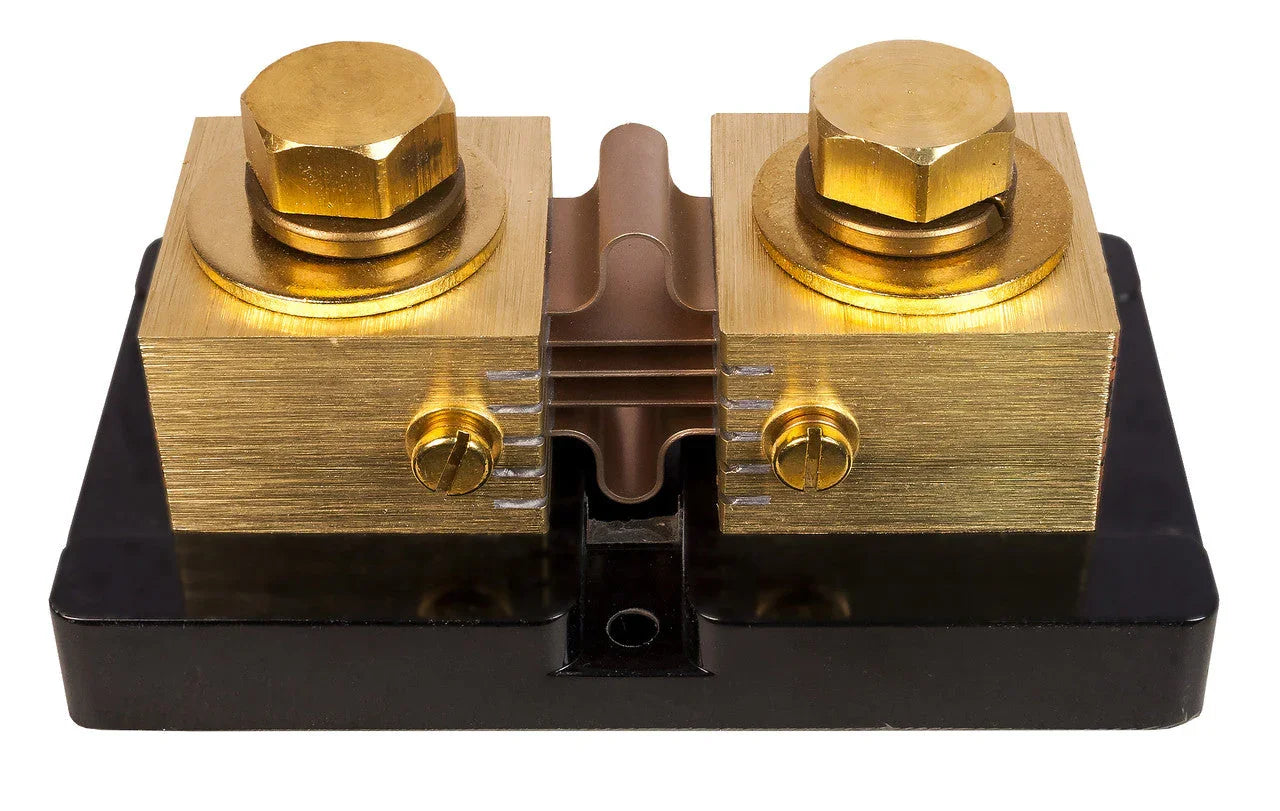

Midnite Solar SHUNT - MNSHUNT-1000/100

$120.06 USD

$ $120.06 USD

Sale Sold out

Quantity

Secure Payment Methods

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

Request a Free Quote

Technical Details

SKU:PES-PA-ELC-0220
Brands: MidNite Solar
Documents:
Datasheet
Mpn number: MNSHUNT-1000/100

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

MidNite Solar DC Shunt MNSHUNT-1000/100

The MidNite Solar MNSHUNT-1000/100 is designed to facilitate the safe and accurate measurement of high currents, making it essential for industrial machinery and sustainable energy applications. Engineered to meet A-A-55524 standards, this shunt offers exceptional performance through its precision-built components, ensuring reliable functionality in demanding environments.

Product Features

1000 Amp Current Rating

This shunt can measure currents up to 1000 amps, making it a versatile tool for various high-demand applications. It ensures precise current measurement critical for equipment safety and performance.

Manganin Resistance Blades

Constructed with Manganin blades, which offer low temperature coefficients and long-term resistance stability, this feature ensures consistent performance over a broad temperature range.

Copper Terminal Block

The inclusion of a copper terminal block and brass fittings facilitates efficient heat dissipation, enhancing the device's safety and operational reliability.

High Strength Phenolic Base

Equipped with a sturdy phenolic base, the shunt provides ease of installation and ensures durability, making it suitable for both industrial and renewable energy uses.

Diverse Output Options

Available with 50mV or 100mV output, the shunt accommodates different measurement requirements, providing flexibility in a variety of settings. This adaptability is essential for optimizing system compatibility and accuracy.

How It Works

The MidNite Solar DC Shunt operates by creating a small voltage drop over a precise resistance, allowing high-current measurements with minimal power loss. Its design ensures accurate readings and durability under high-load conditions, supporting both technical and non-technical users.

Precision Resistance

The resistance is finely calibrated to maintain accuracy across a wide range of currents, enabling consistent measurements crucial for system integrity and performance.

Stable Output Voltage

The device provides a stable output allowing for seamless integration into monitoring systems, ensuring continual performance oversight and adjustment capabilities.

Efficient Current Management

This shunt's efficient current management ensures that systems operate within optimal parameters, reducing the risk of overloads and maintaining smooth operations.

Specifications

Model	MNSHUNT-1000/50, MNSHUNT-1000/100
Rated Output	50mV, 100mV
Resistance at Rated Current	0.0500m, 0.1000m
Rated Current	1000A
Continuous Operating Current	666A
Voltage Tolerance	0.25%
Operating Temperature	-40C to 60C*
Storage Temperature	-55C to 80C
Weight	0.9Kg (32 oz)
Made in	USA

* At ambient temperatures above 40C, the current must be derated.

```
