MidNite Solar XW E-Panel: Enhanced Energy Management

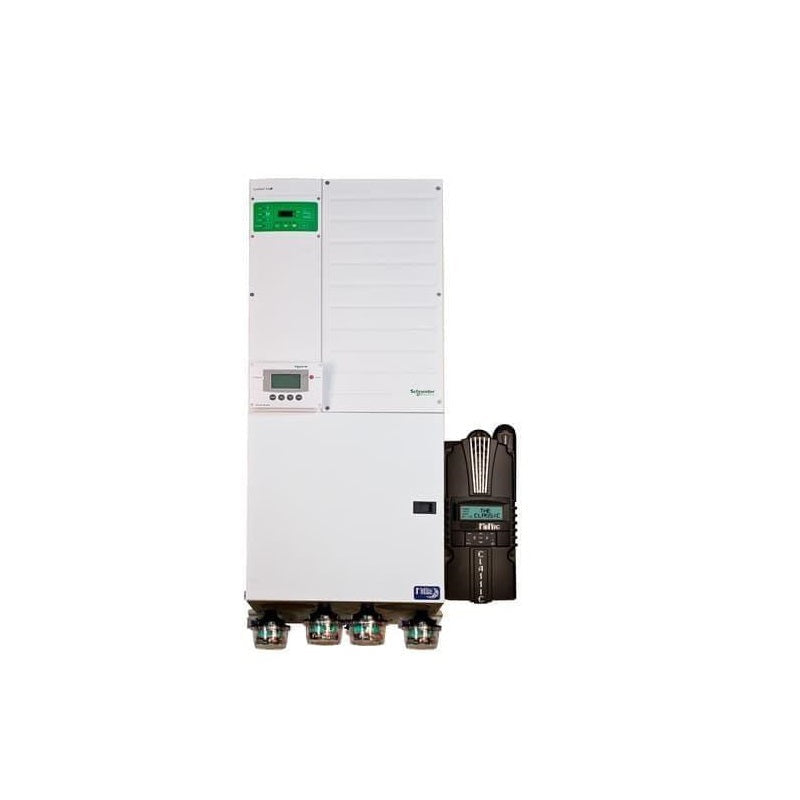

The MidNite Solar MNXWP6848-CL200, featuring advanced high voltage breakers, is designed to enhance the installation and operation of a single XW inverter system. This product seamlessly integrates multiple electrical circuits into one consolidated enclosure, making it a valuable component for renewable energy setups while ensuring compliance with NEC and Canadian electrical codes.

Product Features

Integrated AC and DC Breakers

This E-Panel includes both AC and DC breakers suited for varied applications, ensuring reliable protection and smooth operation of energy systems by preventing overloads and short circuits.

Efficient Bus Bar System

Equipped with a robust bus bar system to facilitate connections from generators and AC sub-panels efficiently, this feature supports the integration of surge arrestors for improved safety and performance.

Compliance with Electrical Standards

All breakers meet UL1077 and UL489 standards, ensuring that the E-Panel satisfies safety and operational regulations, which enhances user confidence in the system's reliability.

Versatile Installation Enhancements

The design includes easy-access mounting options that accommodate secure attachment to XW inverters, allowing for a streamlined installation process.

Advanced Circuit Management

Hydraulic/magnetic breakers permit operating at full rated current under NEC guidelines, unlike thermal breakers, thus providing superior circuit management and operational integrity.

How It Works

MidNite Solar's E-Panel manages energy flow by integrating with inverter systems, streamlining the energy distribution through a sophisticated interface that's accessible for both technical and typical users.

Connection and Integration

Designed for seamless connectivity, this component facilitates easy hook-ups with generators and utility systems while supporting AC sub-panel installations.

Breakers and Safety

The installed breakers act as a secure disconnect mechanism, aiding in safe energy management without compromising on compliance and efficiency.

Real-Time System Management

Offers detailed management of energy flow, enabling effective control and monitoring which enhances system performance and user experience.

Specifications
