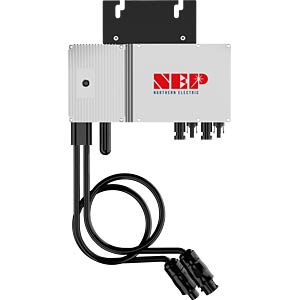

Northern Electric Power 550W Microinverter - BDM-600

Northern Electric Power 550W Microinverter - BDM-600

Regular price $285.12 USD
Regular price Sale price $285.12 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SIV-0144
  • Brands: Northern Electric Power
  • Documents:
  • Height: 5.2
  • Length: 1.97
  • Shop by inverter type:
    • Microinverters
  • Width: 10.91
View full details
  • Northern Electric Power BDM-600 Microinverter System

    Experience an innovative and efficient energy conversion with the Northern Electric Power BDM-600 Microinverter. Designed specifically for grid-tied photovoltaic systems, this device maximizes energy yield with minimal installation complexity. Its cutting-edge technology ensures superior safety and performance, tailored for North American environments.

    Product Features

    Dual Module Capability

    This microinverter supports both 60 and 72 cell PV modules, enabling flexible installation options. By optimizing power output for each module pair, it enhances your system's overall efficiency.

    Integrated Anti-Islanding

    The BDM-600 incorporates effective anti-islanding isolation to protect utility workers and system integrity, ensuring compliance with stringent safety regulations during grid disturbances.

    Simplified Grid Connectivity

    Featuring an integrated trunk cable with easy-connect AC ports, the BDM-600 streamlines the process of connecting to the electrical utility grid, reducing installation time and complexity.

    High Precision MPPT Tracking

    With MPPT (Maximum Power Point Tracking) technology achieving over 99.5% accuracy, this microinverter ensures optimal power harvesting under varying environmental conditions.

    Durable Construction

    Engineered with a NEMA-6 rated protection degree, this microinverter is built to withstand harsh weather conditions, ensuring longevity and reliability in diverse climates.

    How It Works

    The BDM-600 operates by converting the DC output from solar panels into AC energy which is then fed into the electrical grid. Its key components synergize to optimize power production, regardless of module orientation or shading.

    DC to AC Conversion

    This core functionality of the BDM-600 transforms solar-derived DC power into usable AC electricity, facilitating seamless integration into existing electrical systems.

    Trunk Cable System

    Utilizing an innovative trunk cable design, this component simplifies the wiring process, ensuring secure connections and efficient power transfer across the modules.

    Advanced Monitoring Capabilities

    The product supports monitoring via the BDG-256 Gateway, providing comprehensive data analysis for system performance and aiding in maintenance and troubleshooting.

    Specifications

    Max Recommended PV Power 340 x 2 Wp
    Max DC Open Circuit Voltage 60 Vdc
    Max DC Input Current 12 x 2 Adc
    MPPT Tracking Accuracy >99.5%
    Peak AC Output Power 550 Wac
    Rated AC Output Power 500 Wac
    Nominal Power Grid Voltage 240 Vac
    Allowable Power Grid Voltage 211-264 Vac (Adjustable)
    THD <3% at rated power
    CEC Efficiency 95.5%
