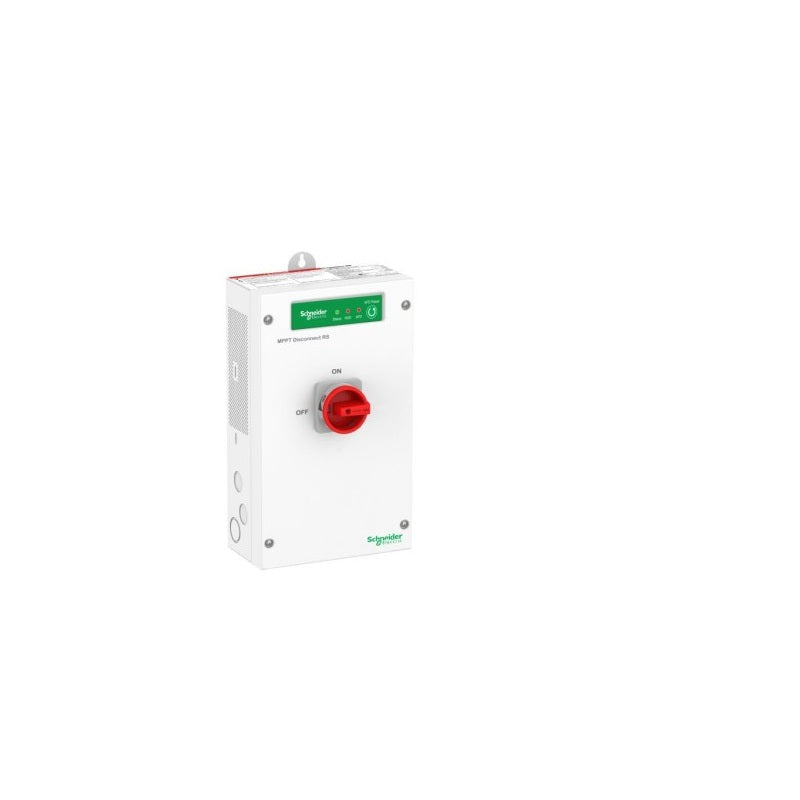

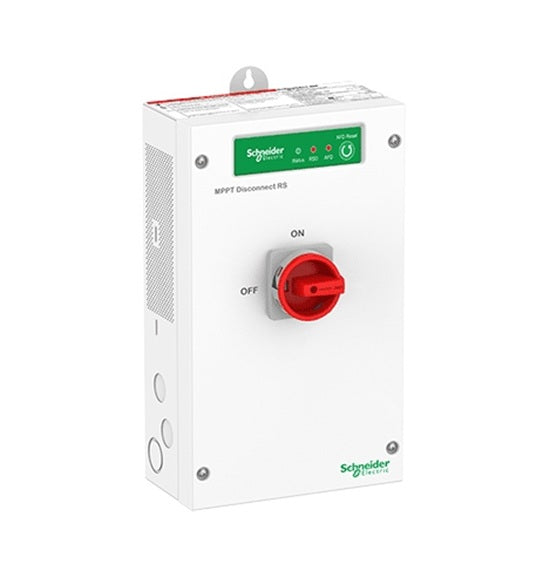

Schneider Electric MPPT Disconnect Rapid Shutdown

Part No. RNW8651036 | Rapid Shutdown Compliant | IP65 Rated | DC 12–48V | UL & CE Certified

20 A

Max Output Current

DC 12–48V

Input Voltage Range

IP65

Ingress Protection Rating

Product Overview

The Schneider Electric RNW8651036 MPPT Disconnect Rapid Shutdown is a critical safety component engineered to bring solar energy systems into full compliance with rapid shutdown regulations — including NEC 2017 and 2020 requirements. Designed to integrate directly with Schneider MPPT charge controllers and solar inverter systems, it enables immediate, safe de-energization of PV conductors during emergencies, fire events, or scheduled maintenance. Rated IP65 for outdoor use, operating across -20°C to 60°C, and certified to UL and CE standards, the RNW8651036 delivers dependable protection with a straightforward installation process compatible with a broad range of solar energy setups.

Key Features

Rapid Shutdown Compliance: Instantly de-energizes solar PV conductors upon receiving a shutdown signal, bringing the system into compliance with NEC rapid shutdown requirements — protecting first responders, maintenance personnel, and building occupants during emergencies or grid-down events.

IP65 Weatherproof Construction: Built with rugged, high-quality materials and sealed to IP65, the RNW8651036 is fully protected against dust ingress and water jets — ensuring dependable long-term performance in exposed outdoor rooftop and ground-mount installations across all weather conditions.

Simple, Fast Installation: Designed for straightforward integration into new and existing Schneider solar systems, the RNW8651036 minimizes installation complexity with a user-friendly connection interface — reducing labor time, eliminating the need for specialized tools, and getting systems code-compliant quickly.

UL & CE Certified Safety Compliance: Certified to UL and CE safety standards, the RNW8651036 meets the rigorous electrical and safety requirements demanded by inspectors, utilities, and AHJs — giving installers and system owners full confidence in code-compliant, insurable solar installations.

Broad Inverter Compatibility: Compatible with a wide range of Schneider Electric MPPT charge controllers and solar inverter platforms, offering the installation flexibility needed to serve diverse residential and commercial solar system configurations without requiring bespoke hardware or adapters.

How It Works

The RNW8651036 interfaces directly between the MPPT charge controller and the PV array conductors. Under normal operation, it remains in a closed, pass-through state allowing uninterrupted energy flow. When a rapid shutdown signal is triggered — either manually via a dedicated switch or automatically by the inverter — the disconnect immediately opens the circuit, reducing conductor voltage to safe levels within the time frame required by applicable codes.

Inverter System Integration: The RNW8651036 communicates directly with the Schneider MPPT inverter or charge controller via its signal interface — receiving shutdown commands instantaneously and triggering the disconnect mechanism without delay, ensuring the fastest possible response to emergency or maintenance shutdown requests.

Built-In Safety Mechanisms: Internal protection circuitry actively monitors the DC input across the 12–48V operating range, guarding against over-current conditions up to 20A, voltage transients, and fault conditions — ensuring the disconnect operates safely and reliably under all electrical stress scenarios.

Status Signaling & Indication: Clear visual status indicators provide at-a-glance confirmation of the device's operational state — whether energized, in standby, or in shutdown — keeping installers, maintenance technicians, and emergency responders fully informed of system status at all times.

Technical Specifications

Manufacturer	Schneider Electric
Part Number	RNW8651036
Input Voltage	DC 12–48V
Max Output Current	20 A
Ingress Protection Rating	IP65 — Dust-tight & Water Jet Protected
Operating Temperature	-20°C to +60°C
Dimensions (L × W × H)	15 × 10 × 5 cm
Weight	2.5 kg
Safety Certifications	UL, CE
Warranty	1 Year Standard — Extendable to 2 Years Upon Registration

Certifications & Compliance

Safety Certifications: UL, CE — Meets international electrical safety requirements
Rapid Shutdown: NEC 2017 / 2020 Rapid Shutdown Compliant
Environmental Rating: IP65 — Fully sealed for outdoor rooftop and ground-mount installations
Warranty: 1-Year Standard | Extendable to 2 Years Upon Product Registration

Documentation

📄Product Datasheet (PDF) 📋Warranty Document (PDF)

● Available | Contact us for lead time and pricing
