SMA Solar SHP 125-US-20 peak3 - 03-125-1500-2-20

SMA Solar SHP 125-US-20 peak3 - 03-125-1500-2-20

Regular price $10,999.99 USD
Regular price Sale price $10,999.99 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SIV-0504
  • Brands: SMA Solar
  • Compliance special features:
    • UL 1741 SA
  • Documents:
  • Height: 44.5
  • Length: 83.1
  • Width: 77
View full details

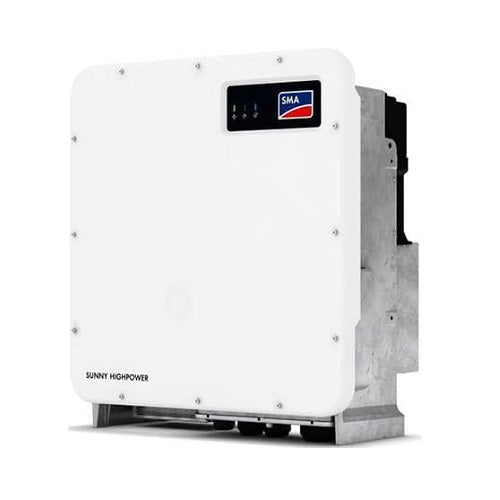

  • SMA Solar SHP 125-US-20 Inverter Overview

    The SMA Solar 03-125-1500-2-20 offers remarkable power density through its PEAK3 1500 VDC inverter, ideal for large-scale PV projects. Experience excellent efficiency and scalable architecture, ensuring a cost-optimized and reliable solution for your power needs.

    Product Features

    Modular Architecture

    The system design reduces balance of system (BOS) expenses, amplifying system uptime and efficiency. Incorporate the keyword, "SMA Solar 03-125-1500-2-20," for optimal SEO benefits.

    High Capacity and Performance

    Featuring substantial energy storage with a maximum array power of 187500 Wp, this inverter ensures performance excellence in diverse environmental contexts.

    Flexible Installation

    Simplifying installation, commissioning, and service, it offers ergonomic handling and intuitive connections aimed at accelerating setup processes.

    SMA Smart Connected

    This connectivity feature substantially lowers operation and maintenance (O&M) costs, streamlining the service framework through innovative monitoring technologies.

    Enhanced Grid Support

    Provides advanced grid integration features such as Volt-VAr, Volt-Watt, and frequency-watt configurations, empowering enhanced grid interaction.

    How It Works

    Deploying a 1500 VDC inverter, the SMA Solar SHP 125-US-20 operates with a top-tier modular design addressing both performance and scalability. Ensure seamless integration into large-scale projects with intuitive operation and maintenance interfaces.

    DC MPPT Technology

    Utilizing advanced maximum power point tracking (MPPT), it ensures optimal energy capture and conversion across varied light intensities.

    OptiCool Active Cooling

    Employs forced convection cooling mechanisms to maintain performance and mitigate overheating risks during high-demand periods.

    Comprehensive Grid Compliance

    Compliant with standards such as IEEE 1547 and UL 1741 SA, this inverter aligns with extensive grid interconnection guidelines.

    Specifications

    Maximum Array Power 187500 Wp STC
    Maximum System Voltage 1500 VDC
    Nominal AC Power 125000 W
    Rated MPP Voltage Range 705 V ... 1450 V
    MPPT Operating Voltage Range 684 V ... 1500 V
    Maximum Operating Input Current 180 A
    Nominal AC Voltage 480 V
    Efficiency (CEC) 98.5%
    Device Dimensions (W / H / D) 770 / 830 / 444 mm
    Operating Temperature Range -25C ... +60C
