In Stock
Solis 185kW 3Phase 14 MPPT Inverter with 5 Year Standard Warranty - 185K-EHV-5G-US-5
Solis 185kW 3Phase 14 MPPT Inverter with 5 Year Standard Warranty - 185K-EHV-5G-US-5
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SIV-0299
- Brands: Solis
-
Compliance special features:
- UL 1741 SA
- Rule 21
- Documents:
- Height: 30.3
- Length: 15.1
- Width: 46.1
Product Description
-

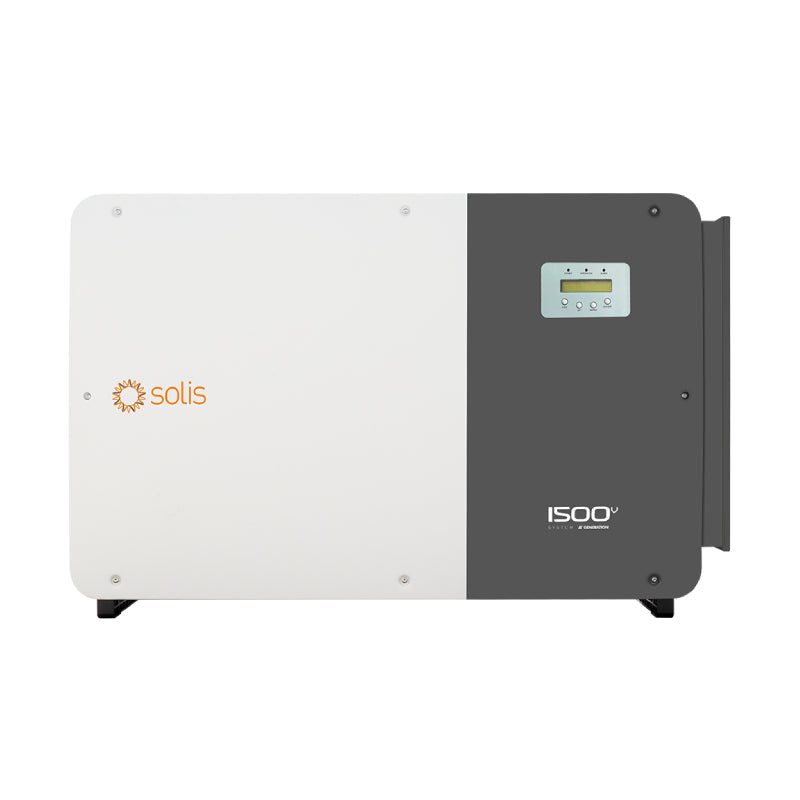

Solis 185kW 3Phase Inverter with 5 Year Warranty - Model 185K-EHV-5G-US-5
The Solis 185K-EHV-5G-US-5 inverter is designed to deliver robust performance and efficiency for solar power systems. Featuring advanced technology and a durable construction, this inverter ensures reliable energy conversion and maximum power output. It is ideal for commercial applications that require a high level of performance, energy management, and compatibility with modern solar modules.
Product Features
High Efficiency with MPPT Technology
Utilizing up to 14 Maximum Power Point Trackers (MPPTs), the Solis inverter optimizes energy harvest from your photovoltaic panels, ensuring maximum efficiency and performance.
Compliant and Certified
This model conforms to UL 1741 SA requirements and complies with California Rule 21 Phase II & III, providing peace of mind with certified safety and grid compliance.
Built-in PID Recovery
The integrated PID recovery feature helps maintain optimal performance of photovoltaic modules, minimizing degradation and extending module lifespan.
Smart Monitoring Capabilities
Improve energy management with intelligent string monitoring and Smart I-V curve scanning, allowing for proactive maintenance and system optimization.
Flexible and Cost-Effective Connection Options
The inverter supports power line communication (optional) and allows for "Y" type DC connection, as well as the use of aluminum wiring to reduce installation costs.
How It Works
The Solis 185K-EHV-5G-US-5 inverter efficiently converts DC electricity generated by solar panels into usable AC electricity. Its advanced control system and multi-MPPT feature allow it to adapt to varying solar conditions, ensuring seamless integration into the grid.
Multi-MPPT System
The multiple MPPT system ensures optimal energy extraction from solar panels by dynamically adjusting to their varying conditions.
Advanced Cooling Technology
An intelligent, redundant fan-cooling system maintains the inverter's optimal operating temperature, ensuring longevity and performance stability even in harsh environments.
Superior Protection Features
The inverter includes comprehensive protection mechanisms such as DC reverse-polarity protection, ground fault monitoring, and anti-islanding, enhancing system reliability and user safety.
Specifications
Max. Input Voltage 1500 V Rated Voltage 950 V Start-up Voltage 600 V MPPT Voltage Range 480-1500 V Max. Input Current 14*26 A Rated Output Power 185 kW Max. Output Power 185 kW Rated Grid Voltage 3Ф/PE, 600 V Rated Grid Frequency 60 Hz Cooling Concept Intelligent redundant fan-cooling Dimensions (W*H*D) 46.1*30.3*15.1 in (1170*770*384 mm) Weight 249.0 lbs (113 kgs) Ingress Protection TYPE 4X Compliance UL 1741, IEEE 1547, FCC Part 15 -
