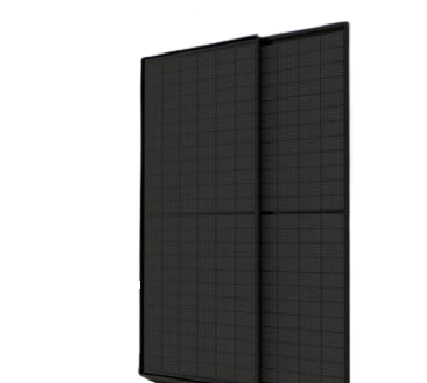

Talesun Solar 540W Panel 144 Cells BOB Bifacial TP7G72M-540 Wholesale 31 panels per pallet

Talesun Solar 540W Panel 144 Cells BOB Bifacial TP7G72M-540 Wholesale 31 panels per pallet

Regular price $232.65 USD
Regular price Sale price $232.65 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SPL-0188
  • Documents:
  • Height: 1.38
  • Length: 89.69
  • Width: 44.65
View full details
  • The Talesun BIPRO TP7G72M‑540 is an advanced bifacial mono‑PERC solar panel with 144 half‑cut cells and a transparent backsheet, engineered for high energy yield and reliability.

    • Rated Power: 540 W • Efficiency: 20.90 %

    • Maximum Power Tolerance: 0 /+5 W • Max System Voltage: 1500 V DC

    • Electrical Specs (STC): Vmpp = 41.64 V, Impp = 12.97 A, Voc = 49.60 V, Isc = 13.86 A

    • Mechanical Load Ratings: 5400 Pa snow / 2400 Pa wind • Frame: 35 mm anodized aluminum • Connectors: LJQ‑3‑CSY/MC4‑EVO2 • Junction Box: IP68, 3 diodes

    • Temperature Range: −40 °C to +85 °C • Temp Coeff Pmax: −0.35 %/°C

    • Bifacial Design: PERC with rear reflective layer, enabling up to 30 % additional yield

    • Warranty: 12‑year product, 30‑year linear performance (≥84.8 % output at 25 years)
