Angles of Solar Panels: Your Guide to Maximum Project ROI
Optimizing the angle of your solar panels isn't a minor technicality—it's a critical decision that directly impacts energy yield, project payback, and overall financial performance. For any installer, EPC, developer, or asset owner, mastering panel tilt is fundamental to delivering a system that meets and exceeds production forecasts. The optimal angle is determined by project latitude and seasonal solar position, but real-world site constraints and financial models dictate the final, most profitable choice.
This guide provides a practical, no-fluff framework for making these critical decisions. We'll move beyond simple theory to cover real-world application for both fixed-tilt and tracking systems, helping you lock in the best angle for any project scenario.
Why Solar Panel Angles Matter for Peak Performance
Whether you're an installer on a residential roof or a developer planning a multi-megawatt solar farm, understanding the physics of solar panel angles is the first step to designing a high-performing array. A solar panel generates maximum electricity when sunlight strikes its surface at a 90-degree angle (perpendicular). As this angle of incidence increases, energy capture decreases.
This core principle drives every solar design decision. Two primary factors must be accounted for:
- Project Latitude: Your location on the globe determines the sun's average height in the sky throughout the year.
- The Season: The sun is lower in the sky during winter and higher in summer, meaning the ideal angle changes continuously.
Expert Tip: For any project, from a single residential rooftop to a massive commercial solar farm, mastering panel angles moves a system from just "working" to being truly optimized for ROI. It's the difference between meeting pro forma projections and exceeding them.
The financial stakes are significant. The market for fixed-tilt solar PV systems, where getting that one angle perfect is everything, was valued at around $0.81 billion in 2023 and continues to climb. This growth is driven by the need for large-scale projects and distributed generation to squeeze every watt of efficiency to hit financial targets, especially as solar is projected to supply 20% of Europe's electricity by 2040.
Properly angled panels are a cornerstone of any smart energy efficient home design. For a deeper dive into system components, explore our other articles on solar panel topics.
Before calculating the precise angle for your project, use this table as a quick field reference.
Quick Reference for Optimal Solar Panel Tilt by Season
This table provides general formulas for adjusting panel tilt based on latitude and season. It's an excellent starting point for any design.
| Season | General Rule for Tilt Angle (Based on Latitude) | Objective |
|---|---|---|
| Winter | (Latitude x 0.9) + 29 degrees | Capture maximum sunlight when the sun is low in the sky. |
| Summer | (Latitude x 0.9) - 23.5 degrees | Optimize for the high-angled sun during the longest days of the year. |
| Spring/Fall | Latitude - 2.5 degrees | Find a balanced angle for the moderate sun position during the equinoxes. |
| Year-Round (Fixed) | Latitude | A "set-it-and-forget-it" angle that offers solid, bankable performance all year. |
While these formulas are a fantastic shortcut, we'll now detail how to fine-tune these numbers for your exact project goals and location.

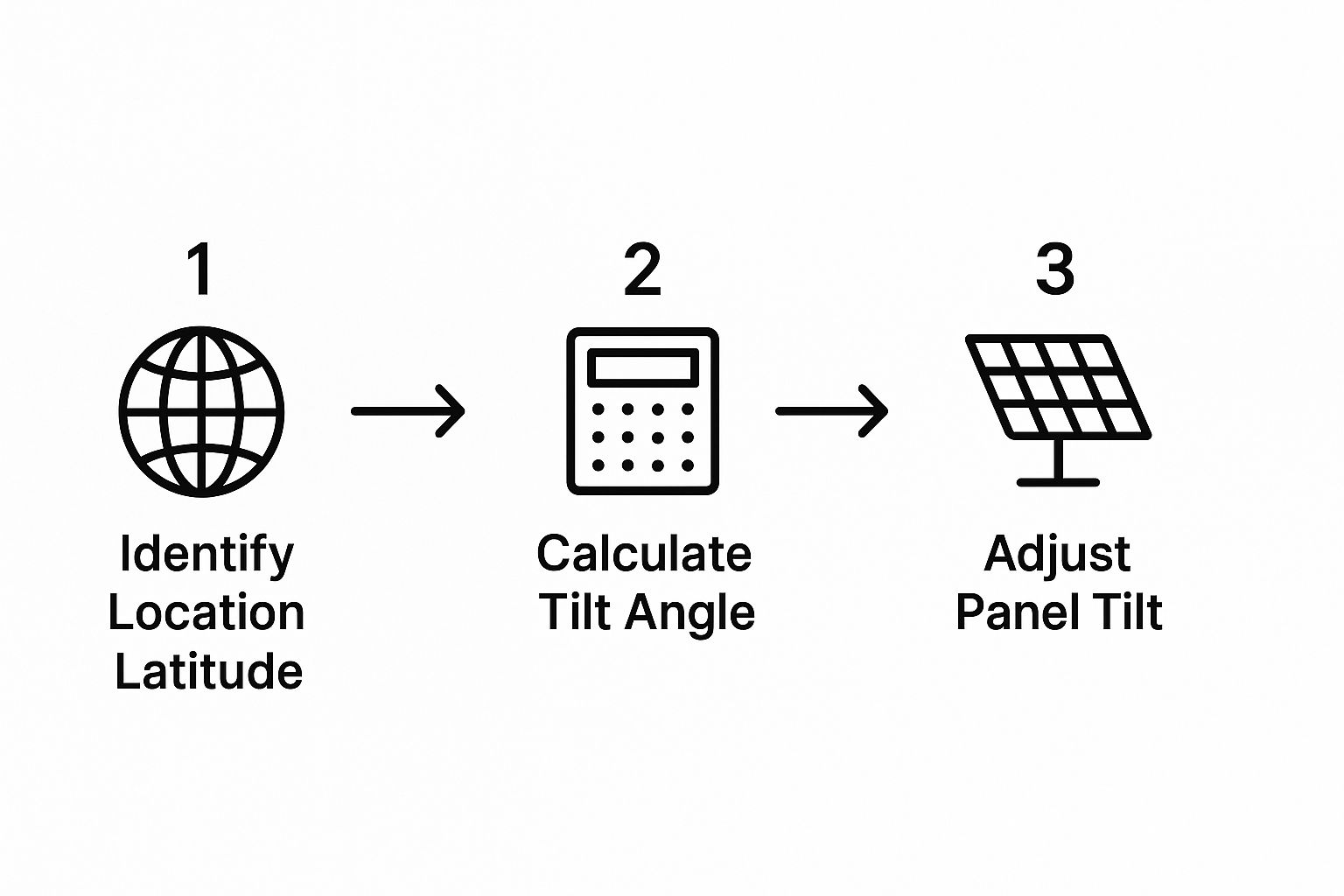

Calculating Your Base Angle Using Geographic Latitude
For a fixed-tilt solar array, setting the year-round angle is the single most important decision impacting the system's lifetime production baseline. The starting point for this is a simple but powerful principle known as the Latitude Rule.
The rule is straightforward: for optimal annual energy output, the solar panel's tilt angle should match the latitude of the project's location. This angle creates the ideal compromise, balancing the sun's high arc in summer with its low path in winter. By matching your panel tilt to your latitude, you are aiming them at the sun's average annual position, ensuring consistent, bankable performance.
Real-World Examples: Phoenix vs. Portland
Your project's location fundamentally changes the design parameters. A comparison between two cities highlights how much geography impacts optimal tilt.
- For Installers in Phoenix, Arizona: Phoenix sits at a latitude of about 33.4° N. Following the Latitude Rule, a fixed-tilt array should be set to a 33-degree angle for optimal year-round production.
- For Developers in Portland, Oregon: Moving north to Portland, with a latitude around 45.5° N, the ideal fixed-tilt angle increases to 45 or 46 degrees.
This 12-degree difference demonstrates why a one-size-fits-all approach fails in solar design. The steeper angle in Portland is crucial for capturing the lower northern sun, while the shallower angle in Phoenix is better suited for the intense, direct sun found closer to the equator.
Pro Tip for Installers: Finding a site's exact latitude is instantaneous. Open Google Maps on your phone, drop a pin on the job site, and the coordinates appear immediately. This makes applying the Latitude Rule a quick, precise step for any field crew, ensuring design accuracy from the start.
This simple act of optimizing tilt is a major driver of solar's global growth. In 2024 alone, over 600 GW of new PV capacity was installed, pushing the global total past 2.2 TW. Small efficiency gains from correct tilting—when multiplied across massive additions like China's 357.3 GW in 2024—result in an enormous amount of additional clean energy. Get more details on these global solar market trends and their tie-in to panel optimization.
While sophisticated modeling tools like PVWatts or Aurora Solar automate these calculations, a firm grasp of the Latitude Rule is vital. It empowers installers and designers to make fast, intelligent judgments on-site and provides a solid, verifiable baseline for every project plan.

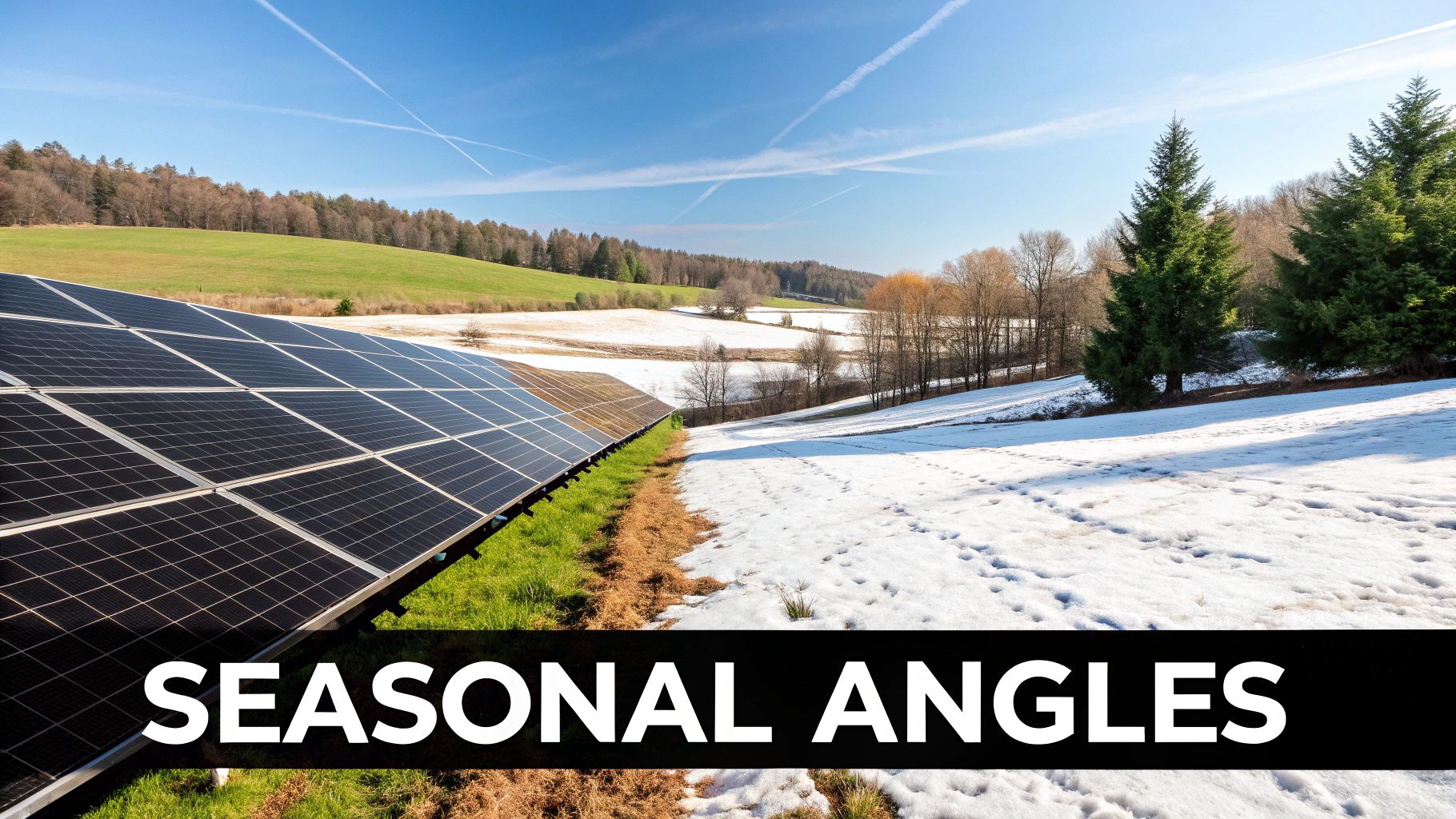

Adjusting Panel Angles For Seasonal Optimization
While a fixed-tilt set to latitude is a reliable "set-it-and-forget-it" strategy, seasonal adjustments can increase energy harvest, especially in locations with significant seasonal variations in the sun's path.
For asset owners and homeowners aiming to maximize output, the goal is to "chase the sun" by adjusting the tilt to keep panels as perpendicular to its rays as possible. This process uses two simple formulas that build on the latitude rule.
Formulas For Peak Seasonal Performance
To capture the low winter sun, a steeper tilt is required. For the high summer sun, a flatter angle is optimal. Getting this right is a key part of refining your comprehensive solar energy solutions and boosting production when it matters most.
Here are the go-to field formulas:
- Winter Tilt Angle = Your Latitude + 15 Degrees: This steeper angle helps the panels squarely face the sun when it’s low on the horizon, maximizing energy capture during short winter days.
- Summer Tilt Angle = Your Latitude - 15 Degrees: A flatter angle positions the panels to absorb the intense, overhead sun during the long days of summer.
Let's take a project in Portland, Oregon (latitude 45.5°). In winter, the panels should be adjusted to a ~60-degree tilt. In summer, they should be flattened to a ~30-degree tilt. This simple biannual adjustment can significantly increase energy harvest compared to a fixed 45-degree angle.
Your latitude is the starting point for every calculation; from there, you fine-tune for the season.
Deciding If Seasonal Adjustments Are Worth It
Is the additional labor and complexity of seasonal adjustments worth the increased energy yield? The answer depends entirely on the project's goals, scale, and financial model.
The Business Case for Adjustments
The decision to adjust angles seasonally is a commercial one.
- For Homeowners: On an accessible ground-mounted system, a quick DIY tweak twice a year can mean a significant boost in energy credits for minimal effort.
- For Developers: On a utility-scale solar farm, manual adjustments are operationally unfeasible. Here, the need for seasonal optimization drives the investment in single-axis tracking systems, which automate the process for a much larger and more predictable financial return.
Ultimately, you must balance labor costs against potential energy gains. For most residential homes with flush-mounted panels on a sloped roof, adjustments are impractical. But for ground-mount systems or commercial flat-roof installations with adjustable racking, these seasonal tweaks are a powerful tool to enhance performance and deliver maximum value.
Fixed-Tilt vs. Tracking Systems: A Practical Comparison
Once you’ve mastered angle optimization, the next critical decision for any serious developer or EPC is whether to lock in a single angle or have the array follow the sun. This brings you to a fundamental business choice: deploy a traditional fixed-tilt system or invest in a more dynamic single-axis tracking system?
The conversation starts with a simple fact: trackers generate more energy. A single-axis tracker can boost a system's annual output by 25% or more by continuously adjusting the panel's orientation. However, this increased yield comes with higher capital costs, greater complexity, and increased maintenance requirements.
The real question is a commercial one: When does that extra production justify the higher investment?
The Business Case for Each System
For project owners and procurement managers, this choice directly impacts the Levelized Cost of Energy (LCOE). The decision forces a trade-off between upfront capital expenditure (CapEx), long-term operational costs (O&M), and total energy yield.
A fixed-tilt system is the reliable workhorse of the solar industry. It’s mechanically simple, cheaper to install, and allows for higher power density (more megawatts per acre). With minimal moving parts, its O&M costs are low, and its proven reliability makes it a dominant choice.
A tracking system introduces motors, controllers, and bearings—all potential points of failure that require scheduled maintenance and add operational risk. It's critical that every component, from the tracker motors to inverters from brands like Sungrow or Fronius, strictly adheres to NEC (National Electrical Code) and UL standards to ensure safe, reliable performance.
Decision Matrix: Fixed-Tilt vs. Single-Axis Tracking Systems
This isn't about which system is inherently "better," but which is the right fit for a specific project's financial model, location, and operational strategy. This matrix breaks down the key decision factors for developers, EPCs, and installers.
| Decision Factor | Fixed-Tilt System | Single-Axis Tracking System | Best For... |
|---|---|---|---|
| Upfront Cost (CapEx) | Lower | Higher | Projects with tight capital budgets. |
| Energy Yield | Good | Excellent (~25% higher) | Maximizing output on available land; projects with high PPA rates. |
| Land Density | High (more MW per acre) | Lower | Land-constrained projects or high land-cost areas. |
| O&M Costs | Very Low | Moderate | Sites with easy access and established O&M crews. |
| Complexity & Risk | Simple & Reliable | Complex; more failure points | Financially robust projects that can absorb higher O&M and operational risk. |
For Developers & EPCs: The choice often hinges on land availability and labor costs. Trackers require more space between rows to prevent self-shading and demand more skilled labor for installation and maintenance. In land-constrained areas or markets with high labor costs, the density and simplicity of a fixed-tilt system can deliver a better LCOE, even with lower production.
Despite the appeal of trackers, fixed-tilt systems remain prevalent due to their economic efficiency. Data shows the vast majority of utility-scale solar capacity—76% in one study—was installed using a fixed-tilt angle between 20 and 30 degrees. This highlights the enduring value of finding that one perfect, locked-in angle for building cost-effective, large-scale power plants. Learn more about these trends in large-scale solar development from industry reports.
Real-World Factors That Influence Your Final Angle
Calculating the ideal solar panel angle based on latitude provides a theoretical optimum, but real-world job sites introduce variables that demand smart compromises. For installers and project designers, mastering these trade-offs separates a good design from a great one.
For most residential projects, the primary constraint is the roof itself. You cannot change the pitch of an existing roof. If a roof has a 25-degree pitch but the ideal latitude-based angle is 35 degrees, the panels are almost always mounted flush. The minor production loss is far more acceptable than the massive cost and structural complexity of building custom racking to achieve the perfect tilt.
Ground-Mount and Weather Considerations
Ground-mount systems offer more flexibility but introduce new challenges, primarily inter-row shading. To maximize power density, you might be tempted to pack rows tightly. However, a steep tilt angle will cause the front row to cast a shadow on the row behind it, especially during low-sun winter months, crippling production. To increase site density, a slightly lower, sub-optimal tilt angle is often chosen. This reduces the required spacing between rows, allowing more panels to be installed and boosting total project capacity.
Local weather patterns also play a critical role.
- In regions with heavy snowfall (e.g., Rockies, Northeast), a steeper angle of at least 35-40 degrees is necessary to encourage snow to slide off instead of accumulating and blocking the cells.
- In dusty, arid climates with infrequent rain, a tilt of at least 10-15 degrees is crucial for self-cleaning, allowing occasional rain to wash away performance-degrading grime.
Compliance Watchout: Structural Loads vs. Energy Gains
Your final angle isn't just an energy decision; it's a structural one. In high-wind zones or areas with heavy snow loads, a steeper panel tilt creates a larger "sail" effect, drastically increasing the wind load on the racking and the roof. All installations must comply with local building codes and standards like ASCE 7. Always run structural calculations to ensure your chosen angle doesn't compromise the integrity of the system or the building—safety and compliance always precede squeezing out an extra percentage point of energy.
When designing a new home, integrating solar panels effectively is a key part of the overall energy strategy. For those exploring sustainable living, it's worth reviewing how different eco-friendly house plans can accommodate optimal solar placement right from the start.
Ultimately, choosing from the best solar panel brands is just one piece of the puzzle. It’s the ability to adapt to real-world site conditions that ensures a successful, profitable, and long-lasting installation.
Answering Your Questions About Solar Panel Angles
Even with a solid plan, questions arise on the job site. Here are direct, practical answers to common queries about panel angles.
Does A Few Degrees Of Difference Really Matter?
Yes, but the financial impact depends on the project scale.
For a large commercial or utility-scale array, a 2-3 degree deviation from the optimal angle can represent a significant loss in annual revenue. On a standard residential roof, the loss from a few degrees is smaller but still erodes the return on investment over the system's lifetime. A 5-10 degree variance is often an acceptable compromise, especially when constrained by an existing roof pitch. However, a major error can easily reduce a system's output by 5-15% or more—a hit no project budget can afford.
Is A Steeper Winter Angle Better Than A Flatter Summer Angle?
This depends on the customer's energy usage patterns and the utility's rate structure.
- If the goal is to offset high winter heating costs on a system with adjustable tilt, a steeper angle (Latitude + 15°) is the clear winner.
- Conversely, if the largest energy expense is summer air conditioning and the utility has high peak summer rates, a flatter angle (Latitude - 15°) is more financially advantageous.
For Fixed-Tilt Systems: If you are installing a fixed system that will not be adjusted, the optimal year-round setting is always the location's latitude. It is the calculated sweet spot that delivers the most balanced and bankable performance across all seasons.
What Is The Minimum Recommended Panel Angle?
We strongly recommend a minimum tilt of 10 degrees, regardless of location. This holds true even for installations near the equator where a flat angle might seem optimal for capturing direct overhead sun.
Critical Mistake: A flat, 0-degree installation is a recipe for long-term operational failure. That 10-degree tilt is essential to allow rain to wash away dust, pollen, and grime that accumulates and degrades production. It also ensures water does not pool on the panels, which can damage seals and frames over time, compromising the entire system's lifespan and voiding warranties.

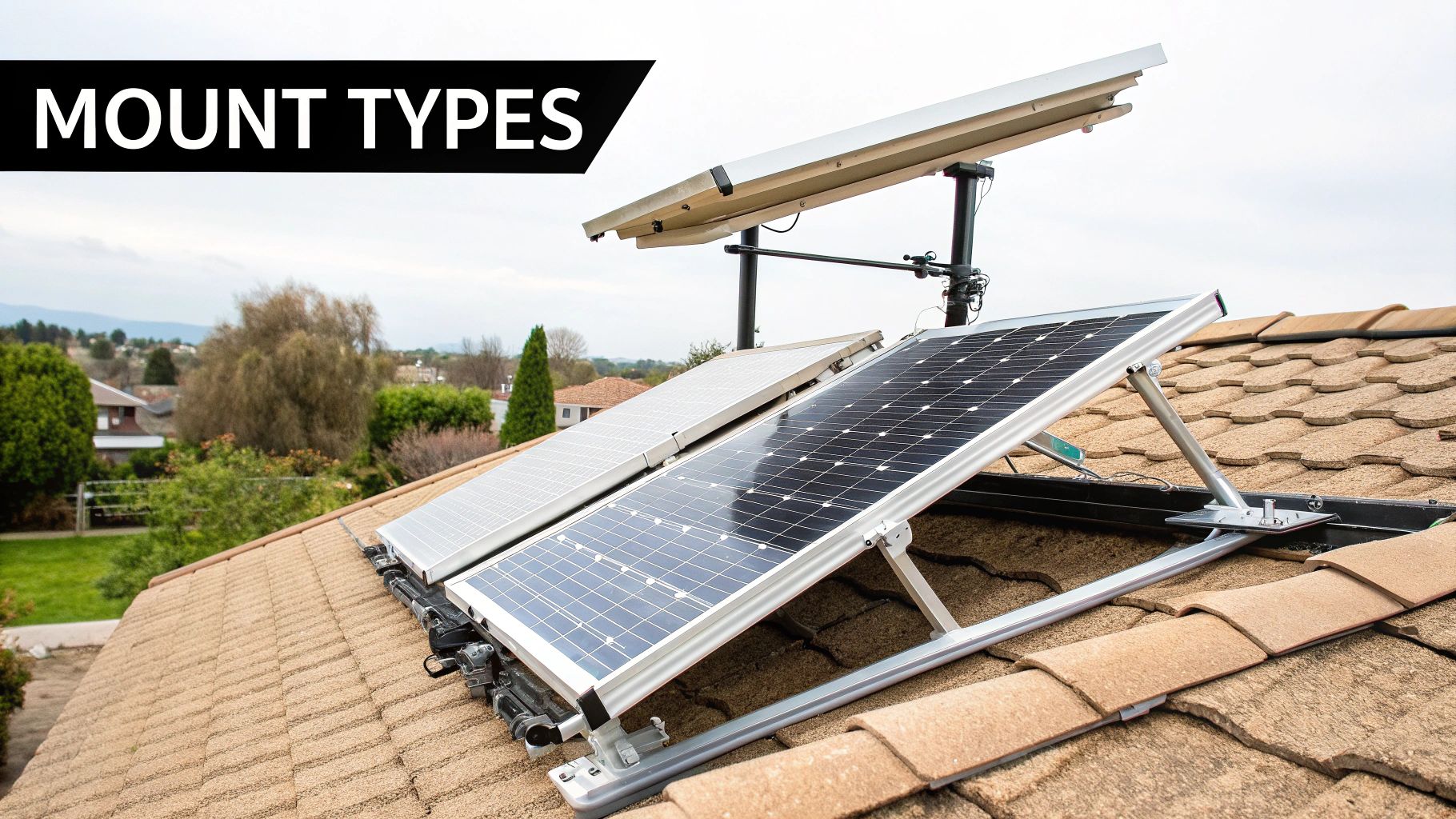

How Do I Adjust The Angle On Existing Panels?
The ability to adjust tilt depends entirely on the mounting hardware.
Many ground-mount and some commercial flat-roof racking systems are designed with adjustable legs, making seasonal tweaks straightforward. However, most residential systems on sloped roofs are mounted flush and are not adjustable.
If you require the flexibility to change panel tilt, it must be planned for during the design phase by specifying adjustable racking. Before attempting any adjustment, always consult the installer or the manufacturer's manual to avoid damaging equipment or voiding the warranty.
