What Direction Should Solar Panels Face for Max Power?
For solar installers, EPCs, and project developers, getting panel orientation right is the first and most critical step to hitting performance targets and ensuring project bankability. A misaligned array is a foundational error that compromises system output and ROI from day one. This guide provides the actionable data you need to optimize azimuth and tilt for any project in the U.S. market.
In the Northern Hemisphere, the optimal direction for a fixed-tilt array is true south. In the Southern Hemisphere, it's true north. This fundamental rule ensures panels receive the maximum solar irradiance over the course of a year, maximizing annual kWh production.

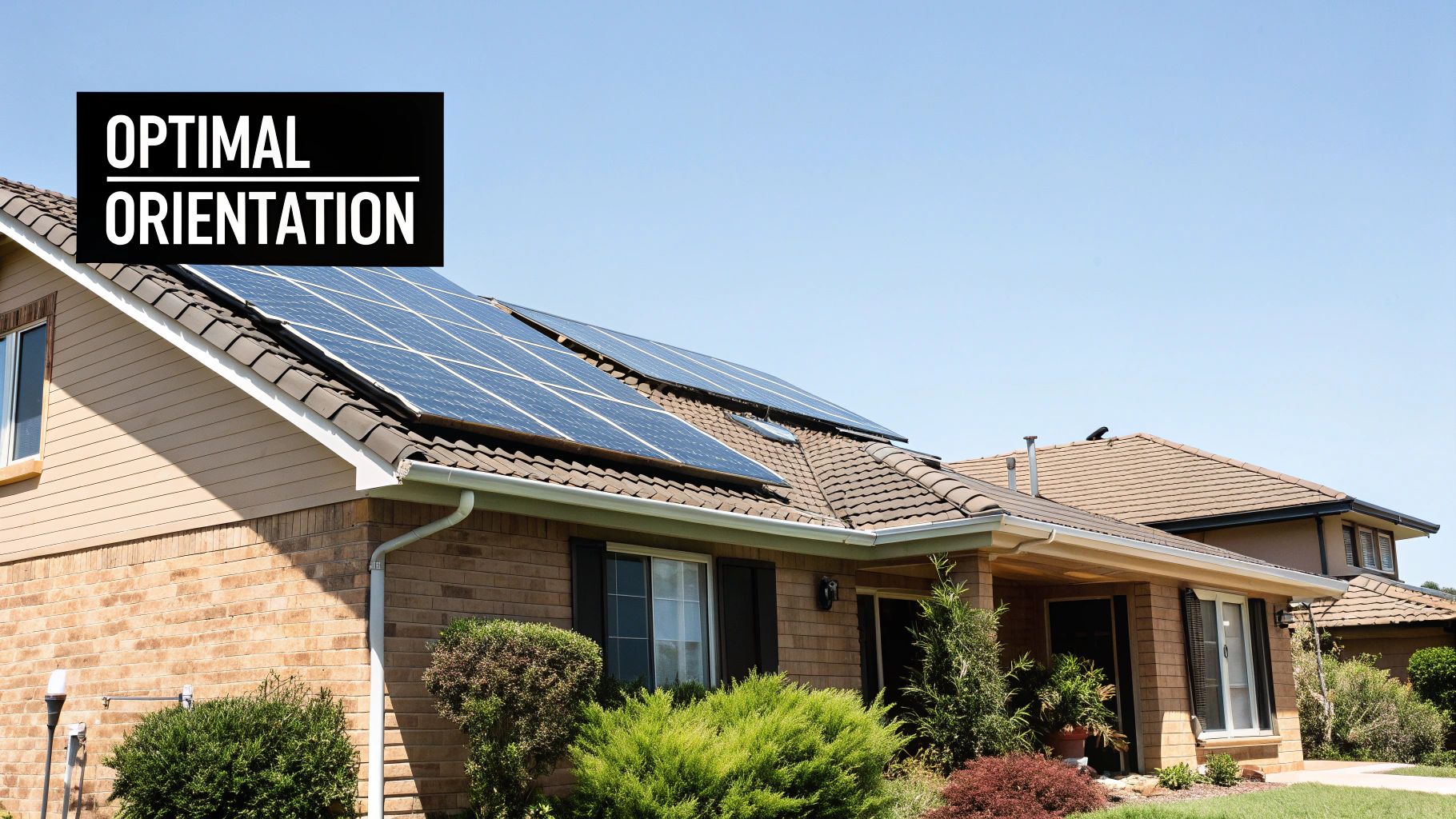

Unlocking Peak Power With Optimal Panel Direction
Maximizing a solar investment comes down to a core principle: point the panels where they capture the most sunlight. For professionals in the field, getting this right is non-negotiable for hitting performance targets and delivering on ROI. Frankly, incorrect orientation is one of the costliest and most common mistakes in solar design, impacting everything from energy yield models to long-term financial returns.
This guide breaks down exactly what installers, developers, and procurement managers need to know, whether for a residential rooftop or a utility-scale array. The fundamental rule is based on global position: in the Northern Hemisphere (including the U.S.), panels must face south. This isn't just a rule of thumb; it's backed by extensive data from sources like the U.S. Energy Information Administration on maximizing solar irradiance.
Compliance Watchout: A critical detail that trips up new installers is the difference between true south and magnetic south. A standard compass points to magnetic south, but due to magnetic declination—the angle between magnetic and true north—this can throw an array's azimuth off by several degrees, impacting production. Always use a GPS-based tool or a declination calculator to find true cardinal directions, a requirement for any NABCEP-compliant installation.
Solar Panel Direction At a Glance
What happens if a roof doesn't have a perfect south-facing plane? This table outlines the real-world production trade-offs.
| Hemisphere | Optimal Direction (Fixed-Tilt) | East-Facing Impact | West-Facing Impact |
|---|---|---|---|
| Northern | True South | ~15% less energy | ~15% less energy |
| Southern | True North | ~15% less energy | ~15% less energy |
While true south (or north) is ideal for maximizing total annual production, an east- or west-facing array isn't a deal-breaker. However, system designers must account for a production loss of roughly 15% in their energy models and financial projections.
Why Direction and Tilt Drive System Performance
We've covered the "what," so now let's get into the "why"—the physics that make panel orientation critical. Solar panels achieve peak power generation when sunlight strikes their surface at a direct, perpendicular angle. This maximizes solar irradiance, the raw solar energy hitting the panel surface. For system designers and installers, squeezing every last watt out of a system comes down to nailing two key variables.
Key Optimization Variables
- Azimuth (Direction): The compass direction the panels face. As established, true south is the target in the Northern Hemisphere for maximizing annual energy yield.
- Tilt (Angle): The vertical angle of the panels relative to the ground. This is just as critical as azimuth for optimizing performance.
Fine-tuning these two angles directly boosts total kilowatt-hour (kWh) production, accelerating the project's return on investment. For professional installers, guesswork is not an option. NABCEP standards demand precise azimuth and tilt calculations because even minor errors compound into significant production losses over a system's 25-year lifespan.
The tilt angle is especially important, and the optimal angle is primarily determined by geographic latitude. A validated rule of thumb is to set the fixed tilt angle to match the site's latitude. Of course, perfect orientation is only half the battle. To maintain peak performance, you must also keep the system clean. Learning how to clean solar panels for maximum efficiency is a simple step that prevents leaving free energy on the table.
How to Match Panel Tilt to Your Latitude
Once you’ve established a south-facing azimuth, the next performance lever is the tilt angle. For a fixed-tilt system—the most common design for its reliability and low maintenance—the industry-standard best practice is to set the panel’s tilt angle to match your geographic latitude. This angle provides the best year-round average exposure, ensuring the panels are well-positioned to capture sunlight regardless of the season.
However, for projects where maximum output is paramount, seasonal adjustments can capture additional energy. A fixed angle is always a compromise between the high sun of summer and the low sun of winter. By tweaking the tilt twice a year, you can chase peak production.

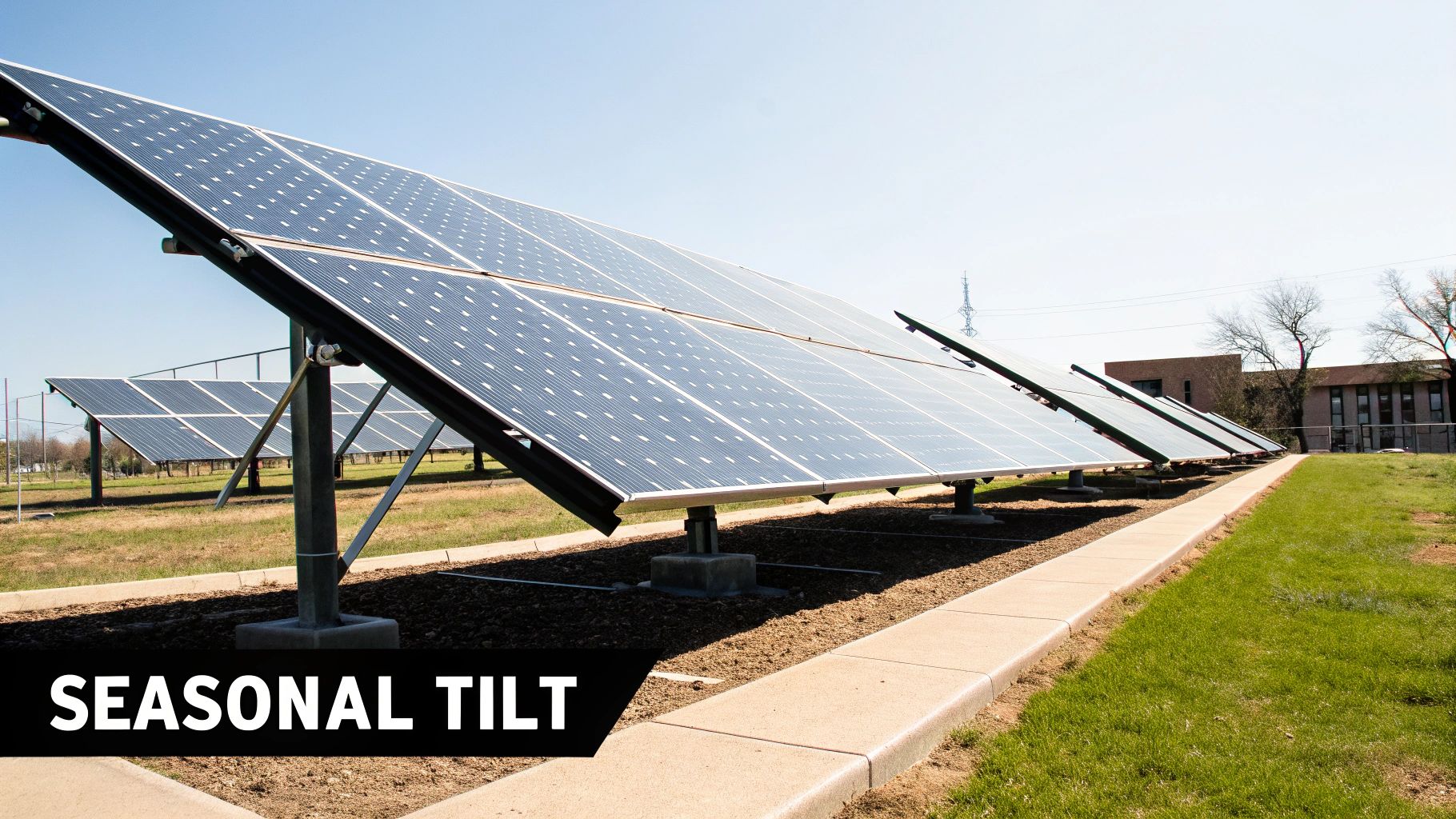

Optimizing Tilt for Seasonal Changes
- Winter Adjustment: To capture the low winter sun, increase the tilt angle. The standard adjustment is Latitude + 15 degrees. This steeper angle is perpendicular to the sun's path during shorter days.
- Summer Adjustment: In summer, the sun is high overhead. To optimize for this, decrease the tilt angle. The standard practice is Latitude - 15 degrees.
For facility managers or asset owners, the choice between a fixed-tilt system and one requiring manual adjustment comes down to an operational cost-benefit analysis. Does the marginal energy gain justify the labor cost of adjusting the tilt twice a year? For most commercial and residential projects, a fixed system angled at the site's latitude provides the ideal balance of performance and zero-maintenance reliability.
The chart below illustrates the significant production loss when panels are not oriented south.
As you can see, an east or west orientation results in a manageable 15% output drop. However, a north-facing array is a critical design flaw that can slash energy production by 50% or more, highlighting why correct azimuth is the first and most important step.
Recommended Fixed Tilt Angles by U.S. Latitude
This reference table provides a starting point for designing fixed-tilt arrays in major U.S. markets, optimized for year-round production.
| City | Approx. Latitude | Optimal Year-Round Tilt Angle | Winter Tilt Adjustment | Summer Tilt Adjustment |
|---|---|---|---|---|
| Miami, FL | 26° N | 26° | 41° | 11° |
| Houston, TX | 30° N | 30° | 45° | 15° |
| Phoenix, AZ | 33° N | 33° | 48° | 18° |
| Los Angeles, CA | 34° N | 34° | 49° | 19° |
| Denver, CO | 40° N | 40° | 55° | 25° |
| New York, NY | 41° N | 41° | 56° | 26° |
| Chicago, IL | 42° N | 42° | 57° | 27° |
| Seattle, WA | 48° N | 48° | 63° | 33° |
This table clearly illustrates the latitude rule in action. For projects requiring seasonal tweaks, the winter and summer adjustments show how to further dial in the system for maximum energy harvest.
When an East or West Orientation Makes Sense
While a south-facing array is the textbook rule for maximizing total energy production, real-world solar projects must account for site constraints and economic drivers. In many cases, an east- or west-facing array is not just a compromise—it's the financially optimal decision.
A perfect, unobstructed south-facing roof is a luxury. Many residential and commercial buildings lack one. In these common scenarios, a split east-west array is a viable solution, capturing strong sun in both the morning and the afternoon. Furthermore, site obstructions like neighboring buildings, trees, or HVAC units can cast significant shadows on a south-facing roof plane during peak production hours, making it a suboptimal choice.
Optimizing for Time-of-Use Rates
The most compelling reason to deviate from a south-facing orientation is financial, specifically for customers on a Time-of-Use (TOU) utility rate. These rate structures increase the price of electricity during peak demand hours, typically in the late afternoon and early evening (e.g., 4 PM to 9 PM).
A south-facing array peaks its production around noon, when electricity is often cheapest. A west-facing system, however, maximizes its output late in the afternoon, directly offsetting the most expensive grid energy.
For Installers & Developers: In markets with high TOU rates (like California), a west-facing array can deliver a significantly higher ROI than a south-facing system. While it may produce fewer total kilowatt-hours annually, the energy it does produce has a much higher economic value.
The strategy thus shifts from maximizing raw energy generation to maximizing cost savings. Aligning solar production with the highest-cost periods is key to unlocking the full financial value of a system.
Ground-Mount vs. Rooftop: Where Should Your Panels Go?
The decision between a ground-mounted or rooftop system has a massive impact on the ability to optimize orientation for maximum power. For developers and EPCs managing large-scale projects, this choice dictates the performance ceiling of the entire asset.
Ground-mounted systems offer complete design freedom. Installers can orient the array to true south and set the tilt angle to the exact degree required for optimal year-round production without compromise. For large projects where maximizing kWh output is the primary goal, ground-mounts are the superior choice.
Working with the Roof You Have
Rooftop arrays are constrained by the existing building. The roof's slope dictates the tilt, and its orientation dictates the azimuth. This makes it crucial to know how to maximize output from a less-than-perfect setup, especially for a commercial solar panel installation where financial returns are paramount.
Expert Tip: A south-facing roof is useless if it's shaded. Before any design work begins, a thorough shading analysis is mandatory. A single chimney, vent pipe, or adjacent structure can cast shadows that neutralize production during valuable peak sun hours.
A professional site assessment is a comprehensive analysis of the roof and its surroundings. Before committing to any rooftop project, run through this checklist:
- Structural Integrity: Has a licensed engineer verified the roof can support the dead load of the array and the dynamic wind/snow loads?
- Roof Age and Condition: Does the roof have at least 25 years of remaining life? A re-roof is far more cost-effective before panels are installed.
- Available Surface Area: Is there enough un-obstructed space to meet the project's energy targets?
- Obstruction and Shading: Map all vents, pipes, HVAC units, and potential shadow-casters for a full year of sun paths.
For a deeper dive into system planning and equipment selection, explore our guides on different types of solar panels.

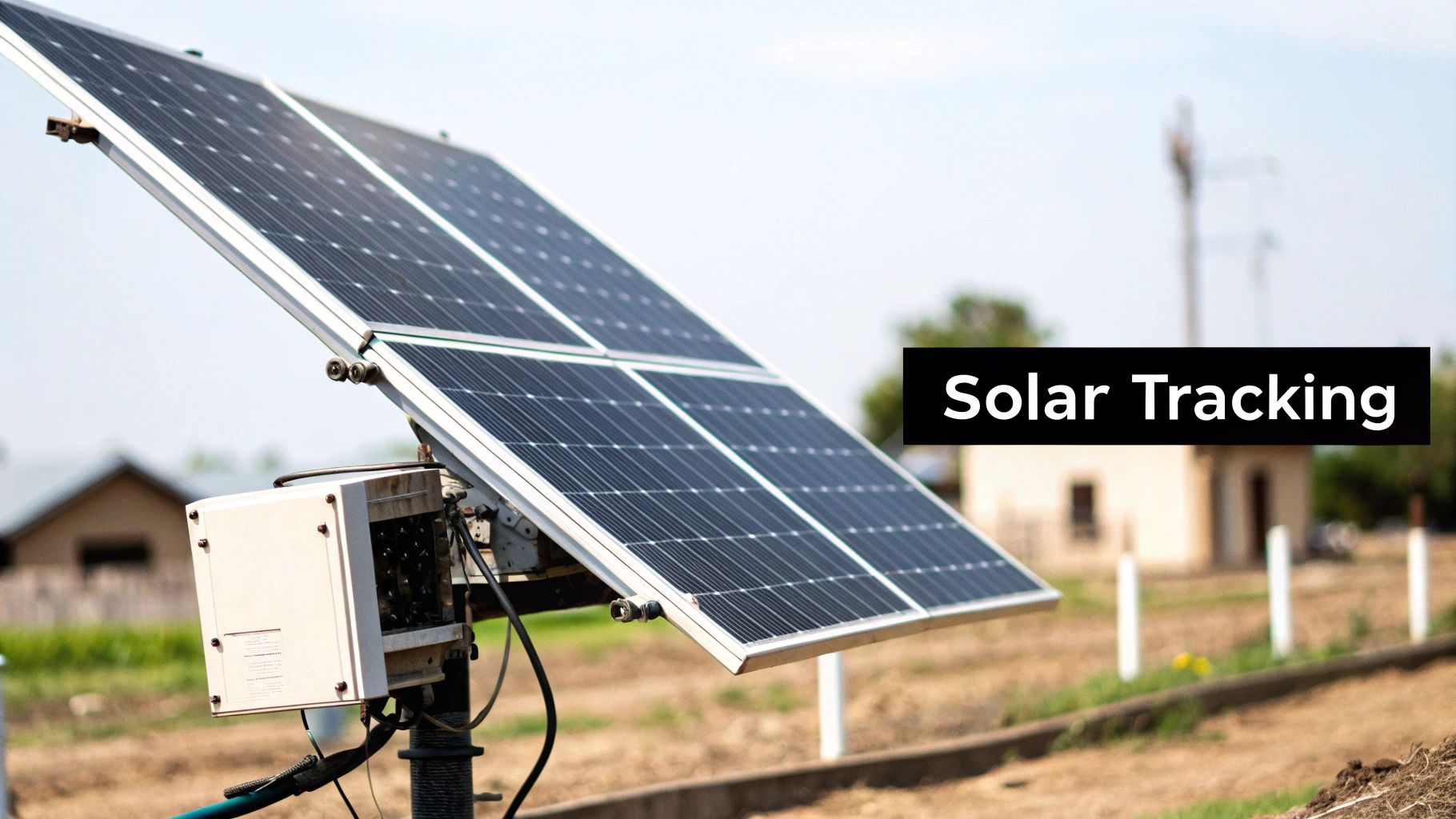

Using Solar Trackers for Ultimate Performance
For commercial and utility-scale projects where maximizing energy yield is critical, solar trackers offer the ultimate performance advantage. Unlike fixed-tilt systems, trackers dynamically follow the sun's path across the sky, ensuring the panels maintain an optimal angle to direct sunlight throughout the day. This can increase energy production by 25-40% compared to a fixed-tilt array.
Single-Axis vs. Dual-Axis Trackers
Two primary types of tracking systems are deployed in the field:
- Single-Axis Trackers: These systems rotate on one axis, typically tracking the sun from east to west. They provide a significant production boost and represent a cost-effective solution for large-scale solar farms.
- Dual-Axis Trackers: The pinnacle of orientation technology, these trackers move on two axes. They follow the sun's daily east-to-west path while also adjusting for its seasonal elevation. This keeps the panels at a perfect perpendicular angle to the sun at all times.
This dynamic optimization has a huge impact on project financials. While the upfront capital and maintenance costs are higher, the substantial increase in lifetime energy generation often leads to a much stronger ROI and lower Levelized Cost of Energy (LCOE).
Data confirms the value. As detailed in NASA's analysis of how tracking impacts energy capture, single-axis trackers can capture over 90% of available direct sunlight annually—a game-changing improvement over fixed-orientation systems.
Common Questions About Solar Panel Direction
For installers and system designers, addressing these common questions ensures project accuracy and optimal performance.
How Much Does a Few Degrees Matter?
A deviation of 5-10 degrees from true south will have a minimal impact on annual output—typically less than a 2% reduction in total energy production. While precision is always the goal, most professional installers work within a reasonable tolerance window. Sometimes, slightly altering the azimuth to align with roof rafters or avoid a minor obstruction is a better trade-off than achieving a perfect angle at the cost of installation complexity.
How to Find True South
Do not use a standard magnetic compass. It points to magnetic south, and the difference between magnetic and true south (magnetic declination) can significantly misalign your array.
The correct method is to use a GPS-based solar pathfinding app or look up the project's zip code in NOAA's Magnetic Field Calculator. For any professional installation, determining true south is a mandatory step in the site survey.
Critical Mistake: Using a magnetic compass without accounting for declination is a rookie error that will permanently impair system production. Always verify with a GPS-based tool.
What Is More Important: Direction or Tilt?
Both are critical, but direction (azimuth) has a greater impact on total annual energy production. The first priority is always to aim the panels toward the equator.
That said, at higher latitudes (e.g., northern U.S. states), tilt angle becomes increasingly important for capturing low-angle winter sun. The best practice is to optimize azimuth first, then set the tilt based on latitude and project goals. Our guides to advanced energy solutions cover these technical trade-offs in greater detail.
Can I Install Solar Panels on a Flat Roof?
Yes. Flat roofs are an excellent platform for solar arrays because they offer complete control over both direction and tilt. Installers use ballasted or mechanically attached racking systems to set the panels at the precise, optimized angle, free from the constraints of a sloped roof. This allows for the design of a perfectly oriented array that maximizes energy harvest.
