Commercial EV Charging Station Installation: A Developer's & Installer's Guide

Installing a commercial EV charging station is a multi-phase infrastructure project, not a simple hardware purchase. For developers, facility managers, and electrical contractors, successfully navigating this process—from initial site assessment and equipment selection to permitting and final commissioning—is critical for controlling costs, meeting project timelines, and ensuring the final asset is ready for today's EV demand and future growth. This guide provides a real-world framework for executing a commercial EV charging installation that delivers long-term ROI.

Laying the Groundwork for a Successful Installation Project

When tackling a commercial EV charging project, you must think strategically. This isn't just about bolting hardware to a wall; it's a major infrastructure upgrade that impacts property value, tenant/customer satisfaction, and operational budgets for years. For anyone involved—facility managers, developers, electrical contractors—treating it as a capital project from day one is the only path to a profitable outcome.

The initial planning phase sets the tone for the entire project. This is where you define the "why" based on your specific property type and business goals.

• For Facility Managers (Corporate Campus): The goal is boosting employee retention and meeting ESG targets. Level 2 chargers are the ideal solution for vehicles parked for 8+ hours.
• For Developers (Retail Center): The objective is attracting shoppers and increasing on-site dwell time. This use case can justify the higher capital expenditure for a DC Fast Charger (DCFC) to provide a meaningful charge in under an hour.
• For Property Owners (Multi-Family): The driver is providing a critical amenity for residents, future-proofing the building, and potentially creating a new revenue stream.

Aligning Goals with Infrastructure Realities

Immediately after defining goals, you need an electrical reality check. A common and costly mistake is selecting chargers before verifying if the building's electrical service can handle the new load without a massive, multi-thousand-dollar upgrade. An early-stage electrical assessment is the single most effective way to prevent catastrophic budget overruns and project delays.

The explosive growth in EV adoption is what’s making this so urgent. Between 2022 and 2024, the global count of public charge points more than doubled to over 5 million, with the U.S. alone adding nearly 200,000. These numbers scream opportunity and show why businesses need to get serious about investing in reliable charging. You can dig into more data on the EV charging station market to see these trends for yourself.

A typical project follows a clear sequence, starting with site evaluation, moving through the often-complex approvals process, and finishing with installation and commissioning.

Key Stages of a Commercial EV Charger Installation

Phase	Primary Objective	Key Stakeholders
1. Site Evaluation & Planning	Define project scope, assess electrical capacity, and select optimal locations for chargers.	Property Owner, Facility Manager, Electrical Contractor, EV Charging Consultant
2. Design & Engineering	Develop detailed electrical plans, schematics, and construction documents compliant with NEC and local codes.	Electrical Engineer, Architect, Utility Company
3. Permitting & Approvals	Secure all necessary permits from the local Authority Having Jurisdiction (AHJ) and utility interconnection agreements.	General Contractor, Project Manager, Municipal Planning Department
4. Equipment Procurement	Order chargers, switchgear, conduit, and other necessary hardware from a reliable supplier.	Procurement Manager, Electrical Supplier (Portlandia Electric), Charging Station Manufacturer
5. Installation & Construction	Perform trenching, conduit runs, electrical work, and mount the charging stations.	Licensed Electricians, Construction Crew, Site Superintendent
6. Commissioning & Testing	Activate, test, and configure the charging stations and network software to ensure full functionality.	Certified Installer, Network Provider, Facility Manager
7. Project Closeout	Final inspections, operational training, and handover to the property owner.	All Stakeholders

This table shows that the real heavy lifting happens long before a single tool is picked up.

As you can see, the physical installation is just the tip of the iceberg. The most critical work happens during the planning and approval stages. Nailing these early phases is absolutely essential if you want a smooth, cost-effective deployment that pays off in the long run.

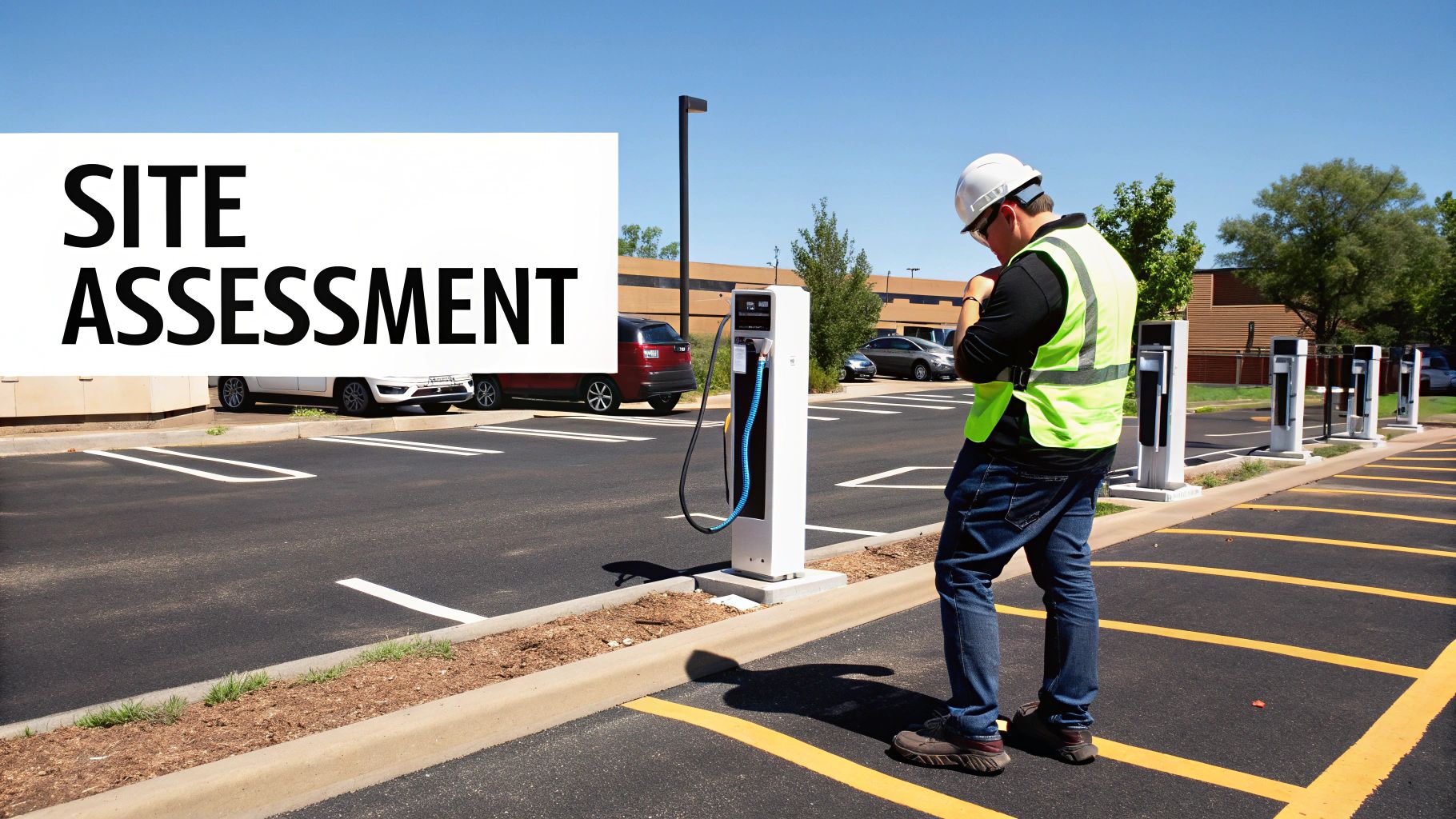

Conducting a Thorough Site and Electrical Assessment

A successful EV charger installation begins with a rigorous assessment of your property and its electrical backbone. Rushing this step is the number one cause of surprise costs and months-long delays that can derail a project completely.

Think from the end-user's perspective: where is the most convenient, visible, and safe location for charging? This initial walkthrough is a strategic decision that directly impacts user experience and your final installation cost.

Your site assessment checklist must include:

• Traffic Flow and Accessibility: Analyze vehicle movement patterns to place chargers where they are easy to access without creating congestion.
• ADA Compliance: This is non-negotiable. Federal and state laws like the Americans with Disabilities Act mandate strict requirements for EV charging space dimensions, access aisles, and ground slope. Incorporate this from day one.
• Proximity to Power: The distance from the main electrical panel to the charger locations is a primary cost driver. Shorter conduit runs mean less trenching, material, and labor, saving thousands of dollars.

Pro Tip for Facility Managers: Don't rely on blueprints alone. Observe your parking lot during peak hours. A location that appears ideal at 9 AM might be a logistical nightmare during a lunch rush or shift change. Real-world observation is invaluable.

Evaluating Your Electrical Backbone

Once you've identified potential locations, the technical evaluation begins. This is where you determine if this is a straightforward installation or a major electrical overhaul. A firm understanding of MEP engineering principles is essential here, as it lays the groundwork for your project's entire scope and budget.

The single most important question is: Do you have sufficient available electrical capacity?

To answer this, a licensed electrical contractor or engineer must perform a load calculation on your main service panel. They will analyze your building's peak electricity demand (typically over the last 12-24 months) and compare it against your total service capacity.

Understanding Electrical Capacity

Think of your building's electrical service as a highway. Total capacity is the number of lanes, and existing loads (HVAC, lighting, machinery) are the cars already on it. Installing EV chargers adds a new fleet of vehicles; you must ensure there are enough open lanes to accommodate them without causing a gridlock.

The assessment will yield one of three outcomes:

1. Sufficient Spare Capacity: The ideal scenario. Your panel can handle the new EV charging load without modifications.
2. Marginal Capacity: You have some room, but not enough for the full planned deployment. This is where technologies like load management are critical.
3. No Spare Capacity: The most costly outcome. A full utility service upgrade is required, potentially including a new transformer. This can add $50,000 or more to the project and extend the timeline by 6-12 months due to utility lead times.

The Role of Load Management

If you land in the "marginal capacity" category, modern smart charging technology provides a solution.

Load management is a feature in networked chargers that allows multiple units to share power from a single, smaller circuit. The system dynamically adjusts the power delivered to each vehicle based on demand, ensuring the total draw never exceeds the circuit's limit.

This is a game-changer. Instead of requiring a dedicated 40-amp circuit for each of four chargers (160 amps total), load management could enable all four to run from a single 100-amp circuit. This allows you to maximize the number of chargers on existing infrastructure, sidestepping costly panel and service upgrades.

Selecting The Right Commercial EV Charging Hardware

Choosing a commercial EV charger is a long-term operational decision that defines your property's user experience, ongoing costs, and revenue potential. This is not about selecting the cheapest unit; it's a strategic choice that must align with your specific business case and site realities.

The decision tree starts with two distinct technology paths: Level 2 AC chargers and high-power DC Fast Chargers (DCFC). They serve different use cases, and your choice dictates the entire project scope and budget.

Level 2 AC Chargers: The Workplace and Hospitality Standard

Level 2 chargers are the workhorses of commercial charging. They use AC power and are the perfect fit for "dwell time" locations where vehicles are parked for two hours or more.

Consider these common applications:

• Office Buildings: Employees plug in upon arrival and leave with a full battery—a high-value perk.
• Apartment Complexes: An in-demand amenity allowing residents to charge overnight.
• Hotels & Resorts: Guests can conveniently charge while they sleep or use on-site facilities.

These units are significantly more affordable to install than DCFCs due to their modest power requirements—typically a 208-240 volt, 40-80 amp circuit. Leading brands like ChargePoint and Enphase offer reliable, networked solutions built for these applications.

DC Fast Chargers: The Retail and Transit Powerhouse

DC Fast Chargers (DCFCs) are an entirely different class of asset. By bypassing a vehicle's onboard AC charger and delivering DC power directly to the battery, they can add hundreds of miles of range in under an hour.

DCFCs are essential for "transient" locations where drivers need a fast turnaround.

• Retail Strips and Malls: A driver can get a significant charge in the time it takes to shop or eat.
• Highway Corridors: This is the enabling infrastructure for long-distance EV travel.
• Commercial Fleet Depots: Logistics and service vehicles can be rapidly recharged between shifts, maximizing uptime.

The trade-off for this speed is significant cost and complexity. A DCFC installation is a major construction project requiring 480V 3-phase power and often triggering utility service upgrades. Top-tier manufacturers like ABB and Tritium specialize in these high-power, public-facing systems.

Critical Mistake to Avoid: Installing a Level 2 charger where a DCFC is needed (e.g., a busy travel plaza). This creates a poor user experience and a failed investment. Match the charging speed to your customer's average dwell time.

Level 2 vs DC Fast Charger Comparison for Commercial Sites

To make an informed procurement decision, you must compare the specifications side-by-side. The differences in power, cost, and application are stark.

Feature	Level 2 AC Charger	DC Fast Charger (DCFC)
Ideal Use Case	Workplaces, hotels, multi-family housing, long-dwell locations	Retail, highway corridors, fleet depots, short-dwell locations
Charging Speed	Adds 20-40 miles of range per hour	Adds 100-300+ miles of range per hour
Power Requirement	208-240V, 30-80 Amps	480V 3-Phase, 100+ Amps
Typical Installation Cost	$10,000 - $30,000 per dual-port station	$50,000 - $150,000+ per station
Key Benefit	Lower upfront cost, ideal for providing a valuable amenity	High-speed charging, strong potential for direct revenue generation

Ultimately, your property's typical visitor dwell time is the biggest factor. If people are staying for hours, Level 2 is your answer. If they're in and out quickly, only a DCFC will meet their needs.

Networked vs. Non-Networked Systems

Beyond power levels, you must choose between networked ("smart") chargers and non-networked "dumb" units. For any commercial application, networked chargers are the only viable option.

Networked chargers connect to a central software platform, enabling remote monitoring, payment processing, access control, and load management. This transforms the hardware from a simple power outlet into a manageable business asset. You can set pricing, track usage data, and receive automated alerts for maintenance issues—all remotely.

This is especially critical given industry trends. The number of global EV charging ports is projected to explode from 28 million today to roughly 206 million by 2040. As competition intensifies, intelligent, reliable, and well-managed stations will be essential for success. You can see the full forecasts for global EV port expansion on electrek.co to get a sense of the scale.

Navigating Permits And Utility Interconnection

The physical installation of commercial EV chargers is often the most straightforward part of the project. The most significant delays and budget overruns typically arise from navigating the bureaucratic maze of municipal permits and utility interconnection approvals.

Your first step is identifying the Authority Having Jurisdiction (AHJ)—usually your local city or county building department. Their interpretation of the National Electrical Code (NEC), specifically Article 625, will govern every aspect of your installation, from conduit depth to safety signage.

Assembling Your Permit Application Package

Submitting an incomplete or inaccurate permit application is the fastest way to get your project sent to the bottom of the review pile, causing weeks or months of delay. A professional, comprehensive package is mandatory.

A complete submittal package must include:

• Detailed Site Plans: Stamped architectural drawings showing the precise location of chargers, parking stalls, trenching paths, and all ADA-compliant elements.
• Single-Line Electrical Diagrams: An engineer-approved electrical schematic illustrating how the chargers connect to the main service panel, specifying wire gauges, conduit sizes, and overcurrent protection devices.
• Load Calculations: The engineering analysis proving the building's existing electrical service can safely accommodate the new EV charging load.
• Equipment Spec Sheets: Manufacturer-provided technical specification sheets for the selected chargers, switchgear, and any other new electrical equipment.

Familiarizing yourself with general commercial building permit requirements can help you avoid common mistakes that cause costly delays.

The Critical Utility Interconnection Process

In parallel with the AHJ permitting process, you must secure approval from the electric utility to connect your new load to their grid. This is a separate, often lengthy process that must be initiated as early as possible.

Hidden Cost Alert: Waiting to engage the utility until after you have building permits is a critical error. Start the interconnection application process immediately after your initial site assessment. This allows the utility to conduct its own engineering review to determine if the local grid infrastructure, including the transformer serving your property, can handle the increased demand. A project with multiple DCFCs can easily trigger a utility-led transformer upgrade, a process with major costs and lead times often exceeding six months.

What Triggers a Major Service Upgrade

The utility will scrutinize your load calculations to determine if the new EV charging load pushes your building’s total demand beyond its current service rating.

If you exceed this threshold, your project scope expands significantly. You are now undertaking a full electrical service upgrade, which means a larger budget, a longer timeline, and more complex engineering. This financial analysis is similar to evaluating commercial solar installation costs, where infrastructure upgrades often represent a substantial portion of the total project cost.

The most effective way to mitigate delays is to build a professional relationship with both the AHJ and the utility. Provide them with clean, complete, engineer-stamped documents and maintain open communication.

Managing The Installation And Commissioning Process

With permits approved and equipment on site, the project transitions from planning to execution. This phase demands disciplined project management to ensure the installation is completed on schedule, within budget, and to the highest safety and quality standards.

The first step is civil and groundwork. This often involves trenching to run underground conduit from the electrical room to the charger locations. Careful coordination with site operations is essential to minimize disruption. Following trenching, concrete pads are poured to provide a stable foundation for the charging stations, and protective steel bollards are installed to safeguard the equipment from vehicle impacts.

Executing The Electrical Work

Once the groundwork is complete, licensed electricians begin the technical installation. This involves pulling heavy-gauge wire through the new conduit and making all connections in strict accordance with NEC Article 625 and local codes.

Component selection is critical. Using appropriate wiring and cabling solutions rated for continuous high-power use is fundamental to the system's long-term safety and reliability.

Key electrical milestones include:

• Panel Connections: Terminating the new circuits at the main switchgear or a dedicated EV subpanel.
• Charger Mounting: Securely fastening the EVSE (Electric Vehicle Supply Equipment) hardware to the concrete pads.
• Final Wiring: Connecting power and data communication lines inside the charging station enclosures.

This work requires an experienced electrical contractor who understands the unique demands of EV charging infrastructure.

The Overlooked Final Step: Commissioning

Compliance Watchout: A common mistake is assuming the project is finished once the chargers are powered on. The final and most critical phase is commissioning. This is a comprehensive, multi-point verification process to ensure the hardware, software, network, and payment systems are functioning together flawlessly before the public has access.

Skipping or rushing commissioning is a recipe for failure. A non-functional charger on launch day creates a negative user experience that can damage your property's reputation.

A thorough commissioning checklist must include:

• Hardware Functionality Test: Verify that the charger initiates a session correctly and delivers power at its rated amperage. For DCFC units, confirm the liquid cooling system activates under load.
• Network Connectivity Test: Ensure a stable cellular or Wi-Fi connection and that the station is communicating with the central management software.
• Payment System Verification: Test the credit card reader and RFID authorization to confirm sessions are billed at the correct rate.
• Safety System Checks: Verify that all ground-fault circuit interrupters (GFCI) and emergency-stop mechanisms are fully operational per UL requirements.

This rigorous process guarantees a reliable, professional experience for drivers from day one. As the U.S. expands its network of roughly 183,000 public stations to compete with global leaders, reliability is paramount.

For sites with limited electrical capacity, integrating battery storage can be a strategic move. Understanding what an energy storage system is can enable the installation of more powerful chargers without triggering a costly utility upgrade.

Answering Your Top Installation Questions

Even with a detailed plan, developers, facility managers, and contractors have critical questions about the realities of a commercial EV charging project. Here are direct answers to the most common inquiries we receive from project partners.

How Much Does The Installation Cost?

The total project cost varies significantly based on site conditions, charger type, and labor rates.

A typical dual-port Level 2 station installation ranges from $10,000 to $30,000. However, a DC Fast Charger project frequently lands between $50,000 and $150,000 per station, with costs potentially exceeding this if a new utility transformer and service upgrade are required.

For a detailed breakdown of all cost components, see our guide on the full EV charging station installation cost.

What Are The Ongoing Operational Costs?

Your investment continues after installation. Budgeting for ongoing operational expenditures (OpEx) is essential for maintaining a reliable and profitable charging network.

Key OpEx categories include:

• Electricity: Your largest variable cost, determined by local utility rates and station utilization.
• Network Software Fees: A recurring subscription (typically per port, per month/year) for payment processing, remote monitoring, and load management.
• Payment Processing Fees: A percentage of each transaction paid to the credit card processor.
• Maintenance: To minimize downtime, a proactive maintenance plan is critical. Budget $500 to $1,500 per port annually for preventative maintenance and potential repairs, separate from electricity costs.

How Long Does The Entire Process Take?

The on-site construction may only take a few days, but the overall project timeline is dictated by "soft" processes like permitting and utility approval.

• Simple Level 2 Installation (with ample electrical capacity): 4 to 8 weeks from project kickoff to commissioning.
• Complex DCFC Installation (requiring a service upgrade): 6 to 12 months, with the majority of time spent on engineering, permitting, and waiting for utility-side work.

Expert Tip for Project Managers: The most effective way to accelerate your timeline is to engage the utility company at the very beginning of the planning process. This proactive communication uncovers potential grid constraints early, saving months of delays and redesign costs.

Are There Incentives Or Grants Available?

Yes. A complex ecosystem of federal, state, and local utility programs exists to reduce the upfront capital investment.

The federal Alternative Fuel Vehicle Refueling Property Credit (30C) is a major driver, but state and utility-level rebates are often the most lucrative. These programs can cover a significant portion of both hardware and "make-ready" installation costs. Incentives are constantly changing, so thorough research during the initial planning phase is mandatory to maximize your project's financial return.

---
