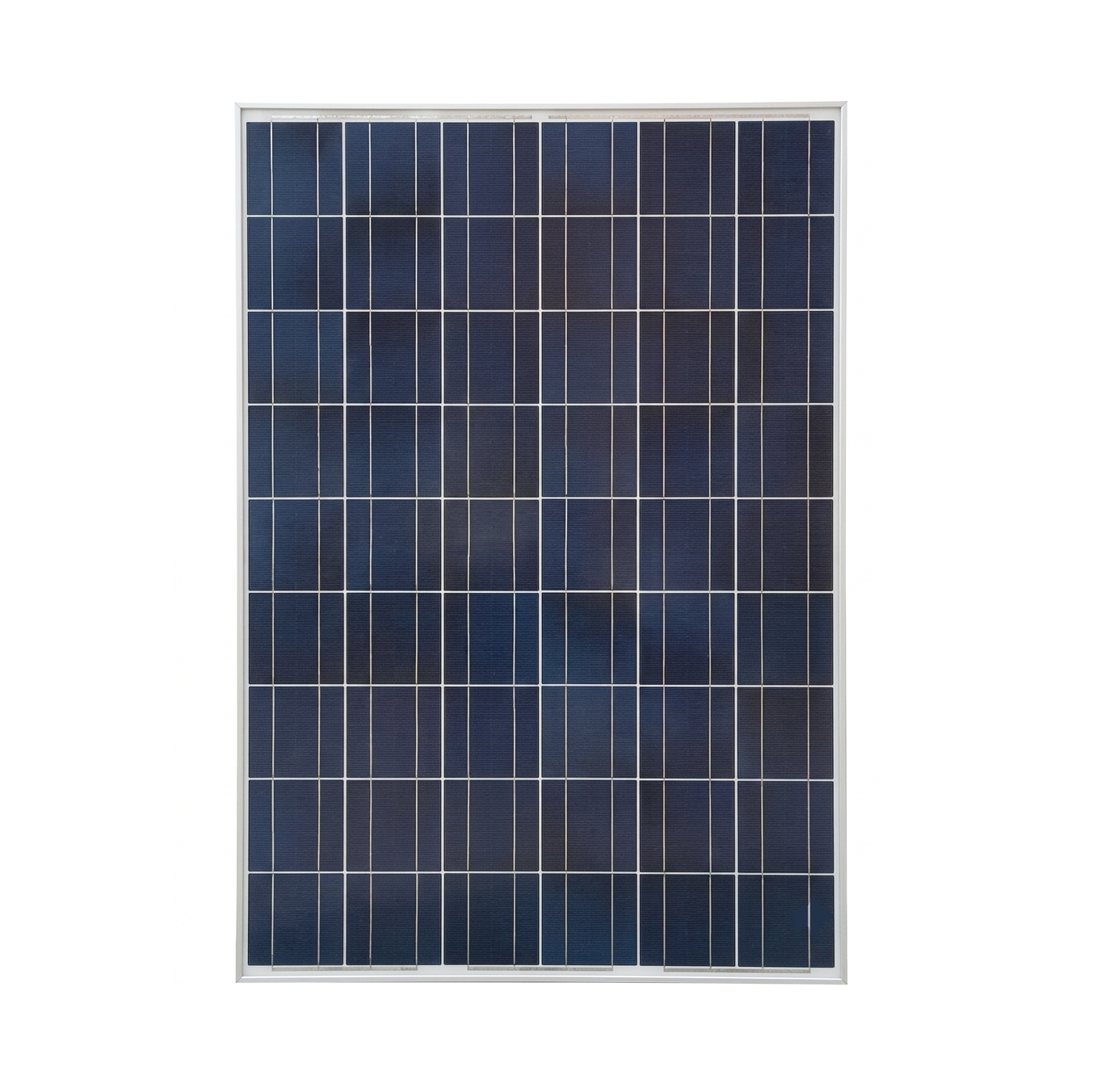

Brightwatts 200W
Brightwatts 200W
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-2347

Brightwatts 200W

Brightwatts 200W

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Specifications

Power Rating 200W

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Brightwatts BI-156-200W-G27V 200W Polycrystalline Framed Solar Panel

Model BI-156-200W-G27V | Polycrystalline Silicon | 54 Full-Cell 156×156 mm | Monofacial | 1000V System Voltage

200 W
Max Power Output
High
Module Efficiency
54 Cells
Polycrystalline

Product Overview

The Brightwatts 200W polycrystalline solar panel delivers reliable power for off‑grid and grid‑tied projects. This robust 54‑cell module is engineered for dependable daily production in demanding environments. It suits remote battery charging, small residential arrays, mobile applications, and light commercial loads. With a typical output of 200 watts at STC, it helps reduce reliance on generators and the grid. A tempered glass front and anodized aluminum frame protect the cells from impact and harsh weather. The panel operates across a wide temperature range from -40°C to 90°C for year‑round performance. Factory fitted “plug‑n‑play” leads and junction box simplify installation on RVs, cabins, and rooftops. Brightwatts, Inc. supplies this module for customers across the United States seeking proven solar hardware.

Key Benefits

Dependable 200W output: The module delivers a typical power rating of 200 watts at STC, with a minimum of 190 watts. This provides steady production for charging batteries and supporting small DC and AC loads.

Wide operating temperature range: The panel is tested from -40°C to +90°C for temperature cycling. This makes it suitable for hot desert sites and cold winter climates.

Rugged construction for harsh sites: Tempered glass and an anodized aluminum frame shield the polycrystalline cells. Static load and hail impact testing support installations in windy and storm‑prone regions.

Easy plug‑and‑play installation: A pre‑installed junction box with plug‑in leads reduces wiring time. Installers can quickly connect the panel to charge controllers or inverters.

Flexible system design: A maximum system voltage of 1000V DC allows series string configurations. This supports both small stand‑alone systems and larger grid‑connected arrays.

How It Works

When sunlight strikes the Brightwatts BI‑156‑200W‑G27V module, the polycrystalline cells generate direct current power. The 54 series‑connected 156×156 mm cells raise the voltage to efficient charging levels. At maximum power, the panel operates around 26.6 volts with a current of 7.51 amps. Open‑circuit voltage reaches 32.72 volts, while short‑circuit current is about 7.9 amps. These electrical values make the module well matched to MPPT charge controllers and many modern inverters. Power is carried through the junction box and factory leads to the rest of the system. Multiple panels can be wired in series or parallel to reach the desired array voltage and current. The rugged laminate and frame protect the cells so they continue producing energy year after year.

Solar energy conversion: Each polycrystalline cell absorbs photons and releases electrons to create current. The cells are wired in series so their voltages add together, increasing the module voltage. Under test conditions, this design yields a typical 200 watt output with a voltage at maximum power near 26.6 volts.

Power delivery to your system: Current flows from the cell strings into the rear junction box and out through plug‑in leads. These leads connect to a charge controller or inverter that conditions the DC power. Strings can be configured to match controller input limits and achieve optimal energy harvest.

Protection and reliability features: Three bypass diodes in the junction box protect cell strings when partial shading occurs. The tempered glass and aluminum frame guard against mechanical stress and hail impact. Temperature sensitivity data helps designers predict output across seasonal temperature swings.

Technical Specifications

Brand / Seller Brightwatts, Inc. (United States)
Model Number BI-156-200W-G27V
Technology / Cell Type Polycrystalline silicon, 156×156 mm square cells
Cell Count and Layout 54 series connected full cells
Maximum Power (Pmax) 200 Wp typical, 190 W minimum
Power Tolerance ± 5 %
Voltage at Maximum Power (Vmpp) 26.6 V
Current at Maximum Power (Impp) 7.51 A
Open Circuit Voltage (Voc) 32.72 V
Short Circuit Current (Isc) 7.9 A
Operating Temperature Range -40°C to +90°C
Temperature Coefficient of Power -1.00 W/°C (nominal 170 W reference)
Temperature Coefficient of Voc -0.115 V/°C (nominal module)
Temperature Coefficient of Isc +0.0026 A/°C (nominal module)
Panel Dimensions (H × W × D) 1482 × 992 × 50 mm
Weight 18.6 kg (40.92 lbs)
Front Glass Tempered glass laminate
Frame Type Anodized aluminum frame
Junction Box and Diodes Rear junction box with 3 bypass diodes and plug‑n‑play leads
Maximum System Voltage 1000 V DC
Qualification Test Conditions Humidity freeze and damp heat 85% RH, 1000 hours; temperature cycling -40°C to +90°C, 200 cycles
Mechanical Load and Impact Static load front and back 2400 Pa; hailstone impact 25 mm steel ball at 23 m/s

Certifications & Compliance

Certifications: Designed to meet UL 1703 and IEC 61215 module standards
Inverter Compatibility: Suitable for most 12 V and 24 V MPPT charge controllers and string inverters within 1000 V DC limits
Environmental: Tested for humidity freeze, damp heat, temperature cycling, static load, and hail impact for long outdoor service life
Warranty: Limited peak power warranty for 20 years, subject to manufacturer’s terms and conditions

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
