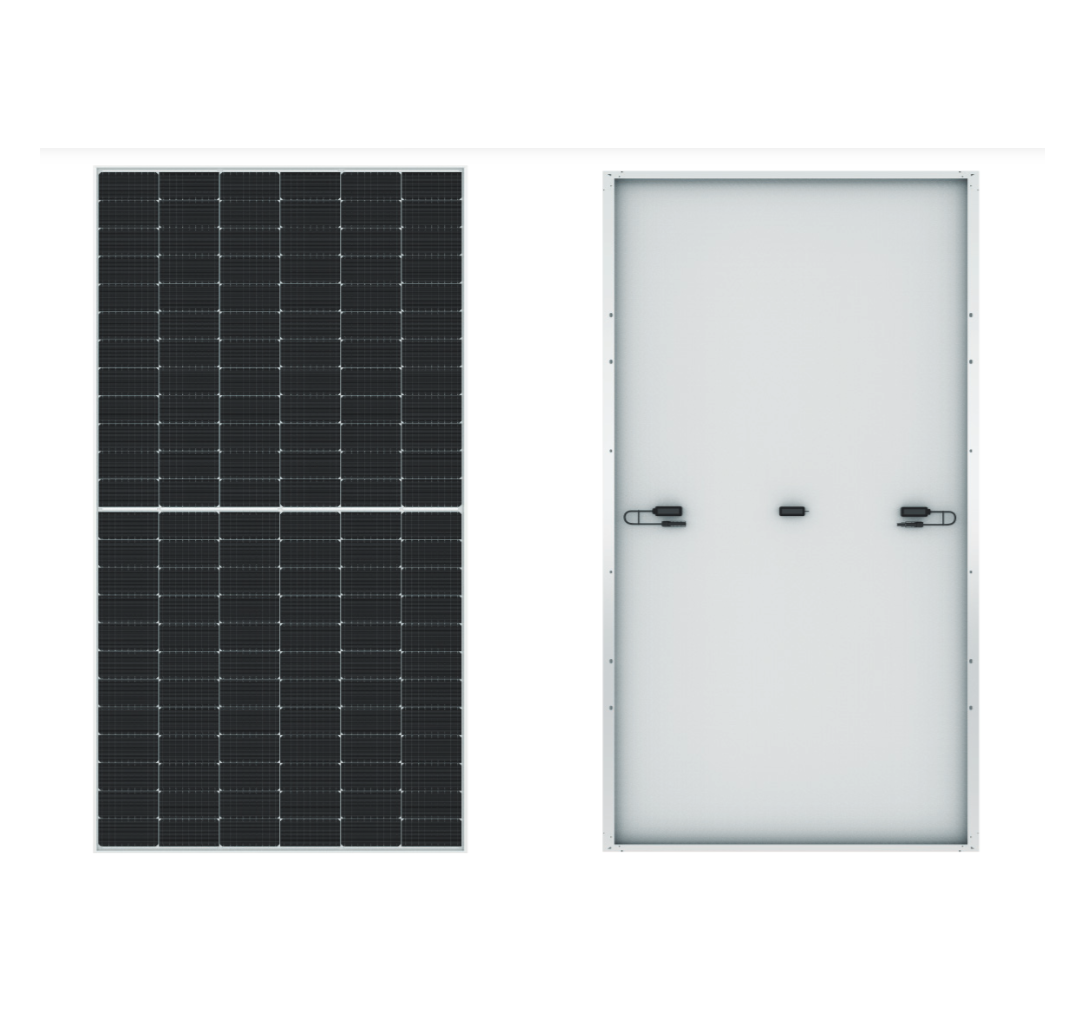

Hinergy LR5-72HPH-550M
Hinergy LR5-72HPH-550M
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-8351

Hinergy LR5-72HPH-550M

Hinergy LR5-72HPH-550M

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Specifications

Length 550 m

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Hinergy LR5-72HPH-550M 550W Monocrystalline Half-Cut Solar Panel

Model LR5-72HPH-550M | Monocrystalline Half-Cut | 144 Half-Cell | Monofacial | 1500V System Voltage

550W
Max Power Output
21.3%
Module Efficiency
144
Monocrystalline Half-Cell

Product Overview

The Hinergy LR5-72HPH-550M is a high-output monocrystalline solar panel built for strong real-world performance. It delivers a maximum power rating of 550 Wp and a module efficiency of 21.3%. Its half-cell design helps improve energy capture while reducing internal losses. This panel is designed for demanding residential, commercial, and utility-scale solar installations. The 144-cell layout supports stable operation and efficient land use. With a durable frame and tempered glass construction, the module is prepared for long-term outdoor exposure. Its positive power tolerance also adds extra confidence during system design.

Key Benefits

High Power Output: The 550 Wp rating supports larger array designs and stronger energy production.

Excellent Efficiency: A 21.3% module efficiency helps maximize generation within limited roof or ground space.

Half-Cell Architecture: The 144 half-cell format can reduce resistive losses and improve performance consistency.

Durable Construction: Tempered glass and an anodized aluminium frame support reliable outdoor operation.

Flexible System Design: A 1500V maximum system voltage helps suit modern commercial and utility projects.

How It Works

The LR5-72HPH-550M converts sunlight into usable electricity through monocrystalline silicon cells. Each cell absorbs solar radiation and produces direct current power. The half-cell layout helps divide current flow, which can reduce electrical losses. That structure also supports better shading tolerance in many installation layouts. The panel is engineered to operate efficiently across a wide temperature range. Its voltage and current characteristics allow it to integrate smoothly into string-based systems. When paired with a compatible inverter, the module can contribute steady energy output throughout the day. This makes it suitable for projects that value efficiency, space savings, and long service life.

Sunlight Absorption: Monocrystalline cells capture solar energy and convert it into direct current electricity. The high-efficiency cell design supports strong output in compact installations.

Half-Cell Current Flow: The panel uses 144 half-cells to split current paths and reduce internal resistance. This helps improve operating stability and energy yield.

System Integration: The electrical ratings support string planning and inverter matching. The module can be configured for modern solar systems with 1500V design capability.

Technical Specifications

Technology Monocrystalline
Model Number LR5-72HPH-550M
Product Warranty 12 Years
Power Warranty 1 year to 98%, 25 years to 84.8%
Total Degradation Rate 0.61%
Power Tolerance 0 ~ +3%
Maximum Power (Pmax) 550 Wp
Voltage at Maximum Power (Vmpp) 41.95 V
Current at Maximum Power (Impp) 13.12 A
Open Circuit Voltage (Voc) 49.8 V
Short Circuit Current (Isc) 13.98 A
Panel Efficiency 21.3%
Operating Power 411.1 Wp
Operating Voltage (Vmpp) 38.97 V
Operating Current (Impp) 10.56 A
Operating Voltage (Voc) 46.82 V
Operating Current (Isc) 11.31 A
Temperature 45±2 °C
Operating Temperature Range -40 to 85 °C
Temperature Coefficient of Pmax -0.34%/°C
Temperature Coefficient of Voc -0.265%/°C
Temperature Coefficient of Isc 0.05%/°C
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Panel Dimensions 2278 x 1134 x 35 mm
Weight 27.5 kg
Cell Size 182 × 182 mm
Cell Number 144
Glass Type Tempered Glass
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box Diodes 3 Junction
Power Range 545 ~ 560 Wp
Efficiency Range 21.1 ~ 21.7%
Seller Name Qingdao Hinergy New Energy Co., Ltd.
Country China

Certifications & Compliance

Certifications: Not specified in the provided data.
Inverter Compatibility: Suitable for modern grid-tied and string inverter systems.
Environmental: Built for wide temperature operation from -40 to 85 °C.
Warranty: 12-year product warranty and 25-year power warranty to 84.8%.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
