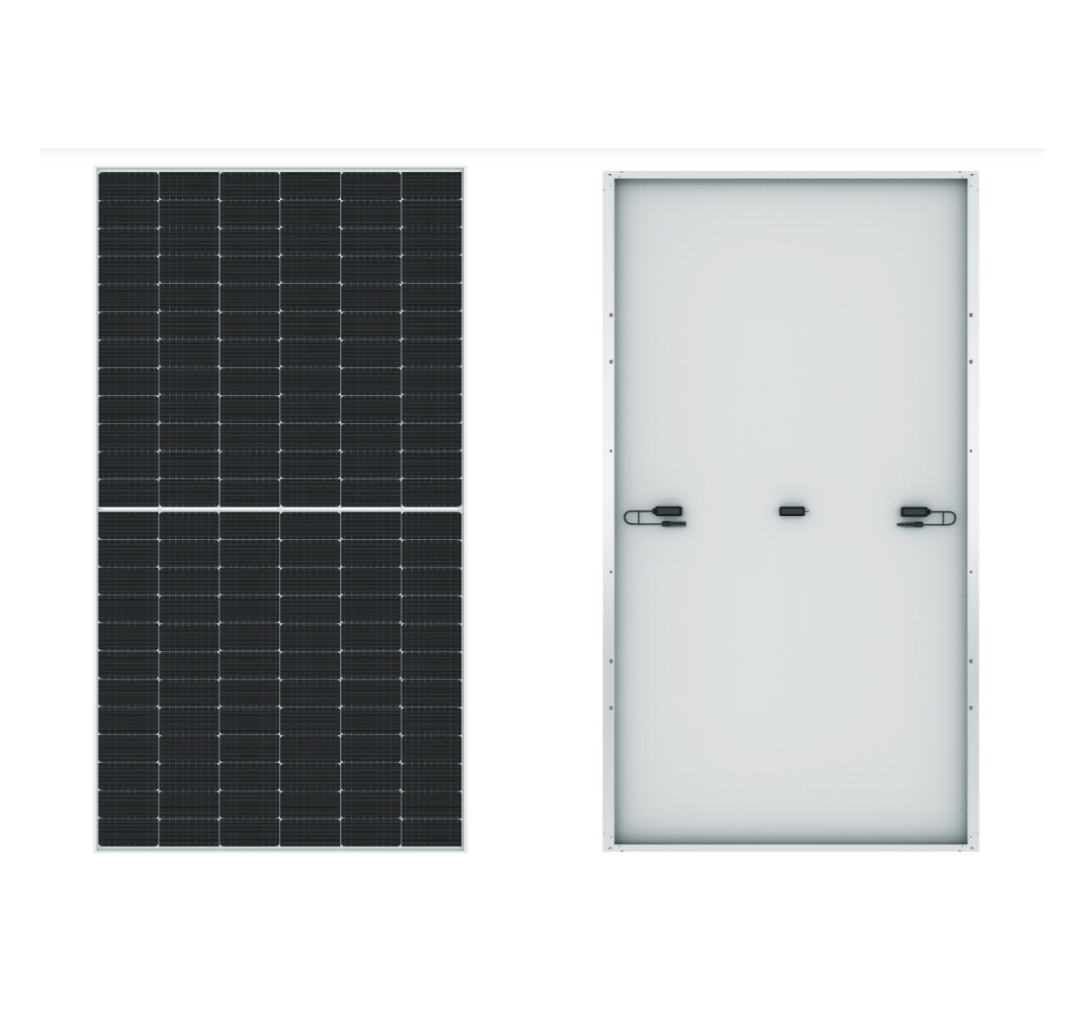

Hinergy LR5-72HPH-555M
Hinergy LR5-72HPH-555M
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-8352

Hinergy LR5-72HPH-555M

Hinergy LR5-72HPH-555M

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Specifications

Length 555 m

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Hinergy LR5-72HPH-555M 555W Monocrystalline Solar Panel

Model LR5-72HPH-555M | Monocrystalline | 144 Half-Cell | Monofacial | 1500V System Voltage

555W
Max Power Output
21.5%
Module Efficiency
144
Half-Cell Design

Product Overview

The Hinergy LR5-72HPH-555M is a high-output monocrystalline solar panel designed for dependable performance and strong energy yield. It offers a rated power output of 555W, which suits modern residential, commercial, and utility-scale systems. The module reaches up to 21.5% efficiency, helping maximize generation within limited roof or ground space. Its 144 half-cell layout supports stable operation and improved energy capture. With a 12-year product warranty and strong long-term degradation control, it is built for projects that value consistent output. The 1500V system rating also supports efficient system design and reduced balance-of-system costs.

Key Benefits

High Power Output: The 555W rating supports strong system performance and higher energy production.

Excellent Efficiency: At 21.5%, the module uses available space efficiently and boosts generation potential.

Stable Half-Cell Design: The 144 half-cell structure helps reduce resistive losses and supports reliable operation.

Durable Construction: Tempered glass, anodized aluminum, and a robust junction box improve outdoor durability.

Project-Friendly Electrical Design: The 1500V system voltage and 25A fuse rating suit modern system layouts.

How It Works

The Hinergy LR5-72HPH-555M converts sunlight into direct current electricity through monocrystalline silicon cells. Its half-cell layout improves current flow and helps reduce internal resistance. That can support better performance during partial shading and high-temperature conditions. The module then sends generated power through its junction box and connectors for integration into a solar array. Its electrical ratings are designed for efficient string configuration and dependable long-term operation. The panel’s structure also supports mechanical protection in outdoor environments. Together, these features create a module that is simple to integrate and built for steady solar production.

Monocrystalline Cell Conversion: High-quality monocrystalline cells capture sunlight and convert it into usable DC power. This supports strong efficiency and consistent output.

Half-Cell Power Flow: The 144 half-cell format reduces current in each cell section. That helps lower resistive losses and improve energy yield.

Array Integration: With a 1500V system limit and 25A fuse rating, the panel integrates well into modern PV string designs. This improves flexibility for larger installations.

Technical Specifications

Brand Hinergy
Model Number LR5-72HPH-555M
Cell Technology Monocrystalline
Cell Count 144
Power Range 545 to 560 Wp
Maximum Power Output 555 Wp
Panel Efficiency 21.5%
Power Tolerance 0 to +3%
Voltage at Maximum Power 42.1 V
Current at Maximum Power 13.19 A
Open Circuit Voltage 49.95 V
Short Circuit Current 14.04 A
Temperature 45±2 °C
Operating Temperature Range -40 to 85 °C
Temperature Coefficient of Pmax -0.34%/°C
Temperature Coefficient of Voc -0.265%/°C
Temperature Coefficient of Isc 0.05%/°C
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Dimensions 2278 x 1134 x 35 mm
Weight 27.5 kg
Cell Size 182 × 182 mm
Glass Type Tempered Glass
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box 3 Junction Diodes
Seller Name Qingdao Hinergy New Energy Co., Ltd.
Country of Origin China

Certifications & Compliance

Certifications: Not specified in the provided product data.
Inverter Compatibility: Suitable for standard 1500V solar PV systems.
Environmental: Designed for reliable operation from -40 to 85 °C.
Warranty: 12-year product warranty, plus power warranty of 98% in year 1 and 84.8% in year 25.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Hinergy LR5-72HPH-555M 555W Monocrystalline Solar Panel

Model LR5-72HPH-555M | Monocrystalline | 144 Half-Cell | Monofacial | 1500V System Voltage

555W
Max Power Output
21.5%
Module Efficiency
144
Half-Cell Design

Product Overview

The Hinergy LR5-72HPH-555M is a high-output monocrystalline solar panel designed for dependable performance and strong energy yield. It offers a rated power output of 555W, which suits modern residential, commercial, and utility-scale systems. The module reaches up to 21.5% efficiency, helping maximize generation within limited roof or ground space. Its 144 half-cell layout supports stable operation and improved energy capture. With a 12-year product warranty and strong long-term degradation control, it is built for projects that value consistent output. The 1500V system rating also supports efficient system design and reduced balance-of-system costs.

Key Benefits

High Power Output: The 555W rating supports strong system performance and higher energy production.

Excellent Efficiency: At 21.5%, the module uses available space efficiently and boosts generation potential.

Stable Half-Cell Design: The 144 half-cell structure helps reduce resistive losses and supports reliable operation.

Durable Construction: Tempered glass, anodized aluminum, and a robust junction box improve outdoor durability.

Project-Friendly Electrical Design: The 1500V system voltage and 25A fuse rating suit modern system layouts.

How It Works

The Hinergy LR5-72HPH-555M converts sunlight into direct current electricity through monocrystalline silicon cells. Its half-cell layout improves current flow and helps reduce internal resistance. That can support better performance during partial shading and high-temperature conditions. The module then sends generated power through its junction box and connectors for integration into a solar array. Its electrical ratings are designed for efficient string configuration and dependable long-term operation. The panel’s structure also supports mechanical protection in outdoor environments. Together, these features create a module that is simple to integrate and built for steady solar production.

Monocrystalline Cell Conversion: High-quality monocrystalline cells capture sunlight and convert it into usable DC power. This supports strong efficiency and consistent output.

Half-Cell Power Flow: The 144 half-cell format reduces current in each cell section. That helps lower resistive losses and improve energy yield.

Array Integration: With a 1500V system limit and 25A fuse rating, the panel integrates well into modern PV string designs. This improves flexibility for larger installations.

Technical Specifications

Brand Hinergy
Model Number LR5-72HPH-555M
Cell Technology Monocrystalline
Cell Count 144
Power Range 545 to 560 Wp
Maximum Power Output 555 Wp
Panel Efficiency 21.5%
Power Tolerance 0 to +3%
Voltage at Maximum Power 42.1 V
Current at Maximum Power 13.19 A
Open Circuit Voltage 49.95 V
Short Circuit Current 14.04 A
Temperature 45±2 °C
Operating Temperature Range -40 to 85 °C
Temperature Coefficient of Pmax -0.34%/°C
Temperature Coefficient of Voc -0.265%/°C
Temperature Coefficient of Isc 0.05%/°C
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Dimensions 2278 x 1134 x 35 mm
Weight 27.5 kg
Cell Size 182 × 182 mm
Glass Type Tempered Glass
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium
Junction Box 3 Junction Diodes
Seller Name Qingdao Hinergy New Energy Co., Ltd.
Country of Origin China

Certifications & Compliance

Certifications: Not specified in the provided product data.
Inverter Compatibility: Suitable for standard 1500V solar PV systems.
Environmental: Designed for reliable operation from -40 to 85 °C.
Warranty: 12-year product warranty, plus power warranty of 98% in year 1 and 84.8% in year 25.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
