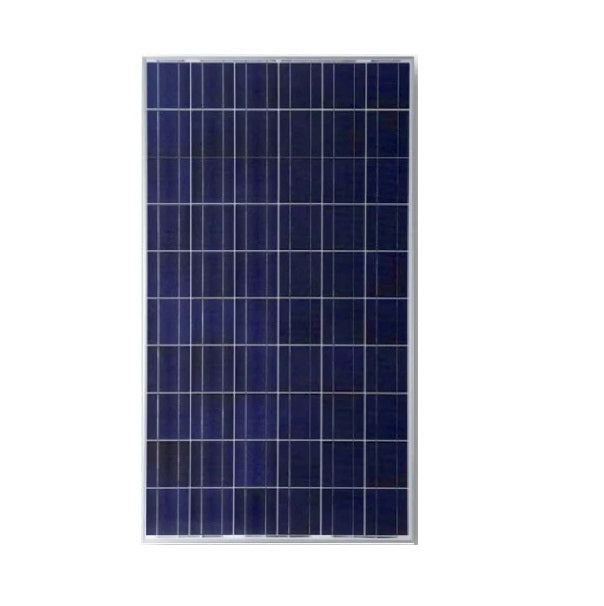

SPOT S-230-60-1
SPOT S-230-60-1
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-16527

SPOT S-230-60-1

SPOT S-230-60-1

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Solar Power Technology SPOT S-230-60-1 230W Polycrystalline Solar Panel

Model S-230-60-1 | Polycrystalline | 60 Cells | Monofacial | 1000V System Voltage

230 Wp
Max Power Output
14.14%
Module Efficiency
60
Polycrystalline Cells

Product Overview

The SPOT S-230-60-1 is a reliable 230W polycrystalline solar panel built for stable performance and long-term value. It uses multicrystalline silicon cells, which are carefully laminated for strong electrical output and dependable field operation. This module is designed for residential and commercial solar systems where cost efficiency matters. Its sturdy anodized aluminum frame, tempered glass surface, and weather-resistant junction box support durable outdoor use. With a 60-cell layout and a compact footprint, it suits rooftop installations, solar home systems, water pumping, and grid-connected applications. The panel also offers a practical balance of power, efficiency, and mechanical strength for everyday solar projects.

Key Benefits

Affordable solar output: This module delivers solid wattage for budget-conscious solar installations.

Durable construction: Tempered glass and an anodized aluminum frame improve outdoor durability.

Reliable electrical performance: The panel is electrically matched to help reduce losses and improve consistency.

Versatile applications: It is suitable for homes, lighting systems, telecommunications, and pumping needs.

Built-in protection: Bypass diodes and quality insulation help support safer system operation.

Long warranty support: A 25-year limited warranty adds confidence for project planning.

How It Works

The SPOT S-230-60-1 converts sunlight into usable electricity through crystalline silicon technology. When sunlight strikes the cells, electrons begin to move and generate direct current power. That energy is then carried through the module wiring and junction box for connection to a solar controller, battery, or inverter. The panel is engineered with EVA encapsulation, strong glass, and moisture-resistant materials to help protect the cells during daily exposure. Its bypass diodes also help reduce power loss when partial shading occurs. These design choices support dependable output in both grid-connected and stand-alone systems.

Crystalline cell conversion: Sunlight activates the multicrystalline silicon cells, creating electrical current. This forms the base of the module’s power generation.

Encapsulation and protection: The cells are sealed between EVA layers and a durable backsheet. This helps resist moisture, UV exposure, and electrical leakage.

Bypass diode support: Three bypass diodes help manage current flow during shading or mismatch. This helps maintain performance across the string.

Technical Specifications

Brand Solar Power Technology Co., Ltd.
Model Number S-230-60-1
Technology Polycrystalline / Multicrystalline Silicon
Cell Count 60 Cells
Rated Maximum Power (Pmax) 230 Wp
Power Tolerance -5% to +5%
Voltage at Maximum Power (Vmpp) 29.3 V
Current at Maximum Power (Impp) 7.85 A
Open Circuit Voltage (Voc) 36.7 V
Short Circuit Current (Isc) 8.42 A
Module Efficiency 14.14%
Power Range 230 to 250 Wp
Efficiency Range 14.14% to 15.37%
Temperature Coefficient of Pmax -0.39%/°C
Temperature Coefficient of Voc -0.32%/°C
Temperature Coefficient of Isc 0.05%/°C
Maximum System Voltage 1000 V
Series Fuse Rating 20 A
Dimensions 1640 x 992 x 33 mm
Weight 20.4 kg
Glass Type Tempered Glass
Encapsulant Type EVA
Frame Type Anodized Aluminium
Junction Box Weather Resistant with 3 Bypass Diodes
Cable Cross Section 4 mm²
Cable Length 750 mm
Applicable Uses Solar home systems, water pumping, grid systems, telecom, lighting, and fencing

Certifications & Compliance

Certifications: ISO 9001:2008, IEC 61215, IEC 61730, TIS 1843-2553
Inverter Compatibility: Compatible with grid-connected and stand-alone solar systems
Environmental: Built with UV-stable EVA, moisture protection, and corrosion-resistant framing
Warranty: 25 years limited warranty

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
