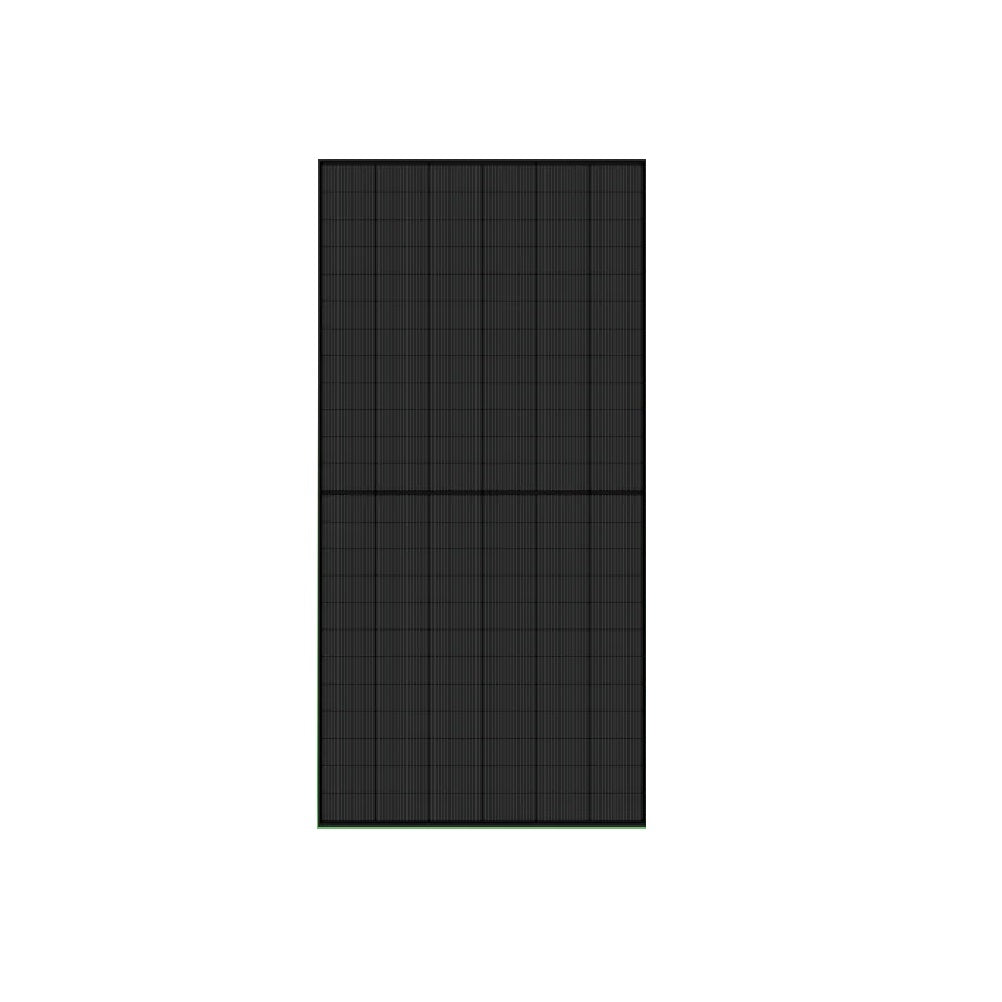

TSEC TS72-CMH-570 H1
TSEC TS72-CMH-570 H1
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-20472

TSEC TS72-CMH-570 H1

TSEC TS72-CMH-570 H1

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

TSEC TS72-CMH-570 H1 570W TOPCon Monocrystalline Solar Panel

Model TS72-CMH-570 H1 | N-Type TOPCon | 144 Half-Cell Monocrystalline | Monofacial | 1500V System Voltage

570 W
Max Power Output
22.1%
Module Efficiency
144
N-Type TOPCon

Product Overview

The TSEC TS72-CMH-570 H1 570W TOPCon monocrystalline solar panel is engineered for high yield and long service life. This advanced TOPCon module delivers strong power density with 22.1 percent efficiency in a robust 144 half-cell layout. It is designed for commercial rooftops, ground mounts, and utility projects that require dependable performance. Zero light induced degradation and a low temperature coefficient support consistent power in demanding climates. The panel is produced in Taiwan by TSEC Corporation under strict quality systems. A 12 year product warranty and up to 30 year linear power warranty help protect your investment. With a maximum system voltage of 1500 volts, it integrates easily into modern high voltage arrays. The black frame and standard dimensions allow clean aesthetics and straightforward installation.

Key Benefits

High 570W output: Each module provides up to 570 watts at STC for powerful arrays. System designers can meet project targets with fewer panels and reduced balance of system hardware.

Efficient N-type TOPCon cells: N-type TOPCon cell technology supports higher efficiency and better low light behavior. Energy harvest is improved during mornings, evenings, and cloudy conditions.

Long term performance warranty: Power output is warranted at 91.4 percent after 20 years and 87.4 percent after 30 years. A low annual degradation rate around 0.42 percent supports long term returns.

Robust construction for harsh sites: The module uses AR coated glass, an anti salt mist frame, and IP68 junction boxes. This build supports installation in coastal, agricultural, or high wind regions.

Flexible system integration: The 1500 volt system rating, 25 amp series fuse, and EVO 2 compatible connectors allow broad inverter pairing. Standard cable length simplifies string design and layout.

How It Works

This module converts sunlight into DC electricity using advanced N type TOPCon monocrystalline cells. The 144 half cell layout increases shade tolerance and reduces resistive losses across the module surface. When irradiance reaches the panel, photons are absorbed in the 182 millimeter cells and generate charge carriers. These carriers are directed by the cell structure and collected as usable current at the module terminals. The tempered glass and encapsulant protect the cells from weather while maintaining strong light transmission. An IP68 junction box routes power through EVO 2 compatible connectors into the system wiring. Multiple modules are then wired in series and parallel strings to reach target voltage and power levels. The produced DC power is finally converted by inverters into AC electricity for site loads or grid export.

N-type TOPCon cell architecture: N-type TOPCon cells use a passivated contact structure on the rear of each cell. This structure reduces recombination losses and improves voltage and efficiency. The design also helps limit light induced degradation over time.

Half-cell layout and module design: The 144 half cell format divides current flow and lowers internal resistance. This layout improves performance under partial shading and reduces hotspot risk. The AR coated front glass and low WVTR encapsulant maintain optical and mechanical stability.

System integration and protection: Three bypass diodes in the junction box support better behavior under shading. The 25 amp series fuse rating and 1500 volt maximum system voltage suit large strings. IP68 protection and a rugged frame enable reliable operation across wide temperature ranges.

Technical Specifications

Manufacturer / Brand TSEC Corporation (Taiwan)
Model Number TS72-CMH-570 H1
Cell Technology Monocrystalline N-type TOPCon solar cells
Cell Format 144 half cells, 6 x 24 layout, 182 mm cells
Module Type Monofacial monocrystalline module
Maximum Power (Pmax) 570 Wp at STC
Power Range for Series 570 Wp to 605 Wp (ALPHA TOPCon series)
Module Efficiency 22.1% nominal for 570 W model
Voltage at Maximum Power (Vmp) 43.76 V
Current at Maximum Power (Imp) 13.03 A
Open Circuit Voltage (Voc) 51.08 V
Short Circuit Current (Isc) 13.73 A
Power Tolerance -3% to +6.75%
Nominal Operating Cell Temperature (NOCT) 45 ± 2 °C
Operating Temperature Range -40 °C to +85 °C
Temperature Coefficient of Pmax -0.29 % / °C
Temperature Coefficient of Voc -0.25 % / °C
Temperature Coefficient of Isc +0.045 % / °C
Maximum System Voltage 1500 V DC (IEC/UL)
Series Fuse Rating 25 A
Front Covering PV coated tempered solar glass
Encapsulant Material Low WVTR encapsulant film
Backsheet Durable backsheet, high weather resistance
Frame Type and Color Black aluminum anti salt mist frame
Junction Box Protection IP68, three bypass diodes
Connector Type EVO 2 compatible connectors
Cable Cross Section 4 mm² (12 AWG equivalent)
Cable Length 1500 mm
Module Dimensions (H x W x D) 2278 x 1134 x 35 mm
Module Weight 27.5 kg
Maximum Mechanical Load 5400 Pa (front side test rating)
Fire Resistance Class Class C

Certifications & Compliance

Certifications: IEC 61215:2021, IEC 61730-1:2021, IEC 61730-2:2021, UL 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 (certification in progress for some markets).
Inverter Compatibility: Suitable for most modern string and central inverters supporting 1500 V DC systems and standard EVO 2 connectors.
Environmental: Designed for low LCOE, improved low light response, zero light induced degradation, and tested for tough salt mist exposure.
Warranty: 12 year materials and workmanship warranty plus 30 year linear power warranty, with 91.4% power guaranteed at year 20 and 87.4% at year 30, corresponding to about 0.42% annual degradation.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
