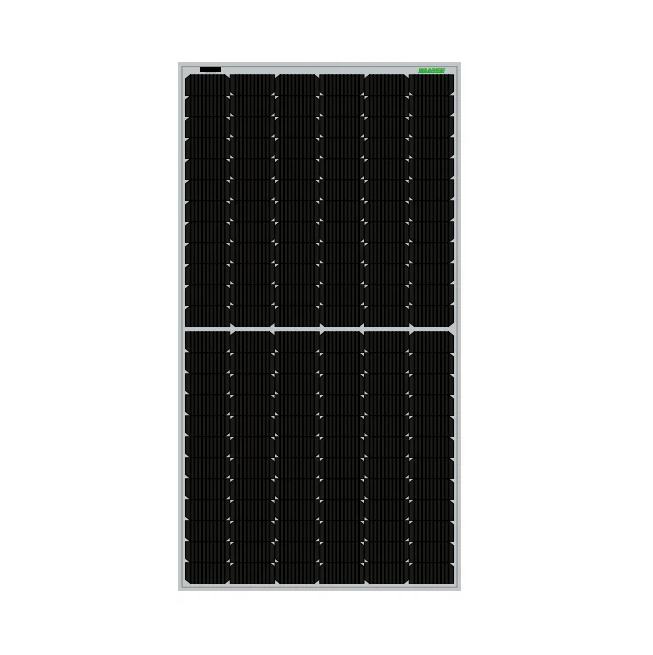

Waaree Energies Bi-55-515 515W Bifacial PERC Monocrystalline Solar Panel
Model Bi-55-515 | Bifacial PERC | 144 Half-Cell Mono | Bifacial | 1500V System Voltage
Product Overview
The Waaree Energies Bi-55-515 is a high-performance bifacial solar panel designed for reliable energy production. It uses monocrystalline PERC technology and a dual-glass construction for improved durability. This 515W module is built for large-scale systems that need strong output, stable electrical performance, and long-term value. With 144 half-cells and a 20.01% efficiency rating, it is suited to commercial and utility installations. The bifacial design can capture reflected light from the rear side, which may increase total system yield. A 12-year product warranty and 12-year performance support add further confidence.
Key Benefits
High power output: Delivers 515 Wp at STC for efficient energy generation in demanding installations.
Bifacial design: Rear-side generation helps improve total yield when site conditions support reflected light.
Dual-glass durability: Framed dual-glass construction supports long-term reliability and enhanced mechanical strength.
Half-cut cell architecture: 144 half-cells help reduce resistive losses and improve performance under partial shading.
Strong temperature behavior: Low power temperature coefficient supports steadier output in hot operating conditions.
Wide system compatibility: A 1500V maximum system voltage supports modern utility-scale solar designs.
How It Works
This solar panel converts sunlight into direct current through monocrystalline PERC cells. The cells are arranged in a 144 half-cell layout to support efficient current flow and lower power losses. When sunlight reaches the front surface, electrical energy is produced immediately. Reflected light reaching the rear side can also be converted, which may increase generation in bright ground-mounted systems. The dual-glass structure protects internal components while helping the module withstand harsh environmental exposure. Stable voltage and current values support predictable performance across a wide operating range.
Monocrystalline PERC conversion: High-efficiency cells absorb sunlight and convert it into usable DC electricity. PERC architecture improves light capture and energy output.
Half-cell current management: The 144-cell half-cut layout reduces resistive losses. It also helps maintain performance under shading and variable irradiance.
Bifacial rear-side gain: Light reflected from the installation surface can be collected from the rear side. This can raise system output depending on design and location.
Technical Specifications
| Brand | Waaree Energies Ltd |
| Model Number | Bi-55-515 |
| Technology | Bifacial, PERC |
| Cell Type | Monocrystalline, 182×182 mm |
| Cell Count | 144 cells / 12x6 || 12x6 arrangement |
| Power Range | 515 to 545 Wp |
| Max Power Output | 515 Wp |
| Module Efficiency | 20.01% |
| Voltage at Maximum Power | 40.99 V |
| Current at Maximum Power | 12.57 A |
| Open Circuit Voltage | 48.86 V |
| Short Circuit Current | 13.49 A |
| NOCT Power | 388.3 Wp |
| NOCT Voltage at Maximum Power | 37.7 V |
| NOCT Current at Maximum Power | 10.29 A |
| NOCT Open Circuit Voltage | 45.8 V |
| NOCT Short Circuit Current | 10.89 A |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Panel Dimensions | 2272 x 1133 x 35 mm |
| Weight | 32.5 kg |
| Glass Thickness | 2 mm |
| Junction Box Protection | IP68 |
| Connector Type | MC4 |
| Cable Cross Section | 4 mm2 |
| Cable Length | 500 mm |
| Temperature at NOCT | 43 ± 2 °C |
| Operating Temperature Range | -40 to 85 °C |
| Temperature Coefficient of Pmax | -0.35 %/°C |
| Temperature Coefficient of Voc | -0.27 %/°C |
| Temperature Coefficient of Isc | 0.05 %/°C |
| Cell Size | 182 × 182 mm |
| Seller Name | Waaree Energies Ltd |
| Country of Origin | India |
Certifications & Compliance
Certifications: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, BLACK & VEATCH factory assessment
Inverter Compatibility: Suitable for modern 1500V PV system designs and standard MC4-connected arrays
Environmental: Bifacial dual-glass construction supports durable outdoor operation across -40 to 85 °C
Warranty: 12-year product warranty, 12-year power warranty, 91.95% output at 12 years, 82.05% output at 30 years, 0.6% total degradation rate
Documentation
Product Datasheet (PDF)● Available | Contact us for lead time and pricing
