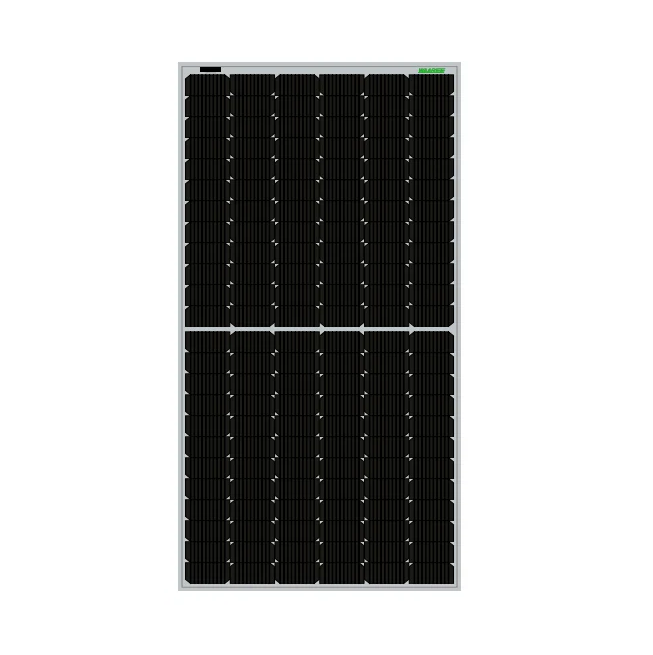

Waaree Energies Bi-55-520
Waaree Energies Bi-55-520
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Trusted by 1,000s of Contractors & Installers
In Stock
SKU  PES-SPS-SOL-22632

Waaree Energies Bi-55-520

Waaree Energies Bi-55-520

OEM Authorized Dealer BABA Compliant Full OEM Warranty 7-10 Business Day Delivery

Secure Payment Methods

Visa Mastercard PayPal American Express Discover
truck
In Stock

Get yours today!

truck
9+ sold

In the last 7 days

truck
Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

form icon
Request a Free Quote
Support Agent

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.
phone (888) 876-0007
phone Instant Live Chat
phone Mon-Fri 10am-6pm EST
View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Waaree Bi-55-520 520W Bifacial Mono PERC Solar Panel

Model Bi-55-520 | Mono PERC Bifacial | 144 Half-Cut Cells | Bifacial | 1500V System Voltage

520 W
Max Power Output
20.20%
Module Efficiency
144
N-Type TOPCon

Product Overview

The Waaree Bi-55-520 520W Bifacial Mono PERC Solar Panel is designed for projects that demand high output and reliable performance. This dual glass module uses advanced monocrystalline PERC cells and bifacial technology to capture light from both sides. Energy yields are increased without needing extra roof or ground space. The panel delivers a strong 520 Wp nominal power rating at standard test conditions with 20.20% module efficiency. It fits neatly into commercial, industrial, and large residential arrays. The robust dual glass construction improves durability in harsh environments. With a 12 year product warranty and extended power guarantee, long term energy production is supported. The Waaree Bi-55-520 panel helps lower levelized cost of energy while maintaining strong performance over decades.

Key Benefits

High power density per module: Each panel delivers 520 Wp of rated power, allowing powerful arrays with fewer modules. System design can stay compact while still meeting ambitious energy targets.

Bifacial energy gains: Light is harvested from both front and rear sides for higher specific yield. Backside gain potential up to 30% can be achieved with reflective surfaces and optimized mounting.

Durable dual glass construction: The framed dual glass design protects cells from moisture and mechanical stress. Long term reliability is enhanced compared to traditional backsheet modules.

Optimized for modern systems: The 1500 V system voltage and 25 A series fuse rating suit utility and commercial designs. Compatibility with standard MC4 type connectors simplifies integration.

Long lasting performance warranty: A 12 year product warranty is combined with a 30 year power output guarantee. Output is warranted at 91.95% in year 12 and 82.05% by year 30.

How It Works

This Waaree Bi-55-520 module converts sunlight into usable DC power using high efficiency mono PERC cells. Light strikes the 182 mm monocrystalline cells on the front glass and generates an electric current. At the same time, diffuse and reflected light reaches the rear glass surface and adds extra power through bifacial gain. The half cut cell layout reduces resistive losses and improves shade tolerance. Current from all cells is collected within the split junction box and delivered through MC4 compatible connectors. A suitable inverter then converts the DC power into AC electricity for on site use or grid export.

Bifacial dual glass light capture: The module uses 2.0 mm low iron glass on both sides to allow light entry. The front side captures direct irradiance, while the rear side collects reflected light from the ground or roof. This design can raise effective module efficiency significantly in well designed installations. Rear side gains between 15% and 30% are achievable depending on surface albedo and mounting height.

Half cut mono PERC cell architecture: The 144 half cut cells are arranged in a 12x6 plus 12x6 layout for improved performance. Each full cell is divided to lower operating current and reduce resistive losses. The PERC structure enhances light trapping and boosts conversion efficiency. This design also improves shade tolerance because the module behaves like two parallel strings.

Thermal and electrical optimization: The module is engineered with favorable temperature coefficients for hot climates. Power loss is limited to around -0.35% per degree Celsius above STC cell temperature. Voltage and current behavior is predictable across changing conditions, simplifying string design. The 1500 V maximum system voltage allows longer strings and reduced balance of system costs.

Technical Specifications

Brand Waaree Energies Ltd
Model Number Bi-55-520
Cell Technology Monocrystalline PERC, bifacial
Cell Size 182 mm x 182 mm (M10 class)
Number of Cells 144 half cut cells (12x6 || 12x6)
Nominal Power Output (STC) 520 Wp
Power Output at NOCT 391.9 Wp
Module Efficiency (STC) 20.20%
Power Range for Series 515 Wp to 545 Wp (Ahnay series)
Voltage at Max Power (Vmp, STC) 41.14 V
Voltage at Max Power (Vmp, NOCT) 37.90 V
Current at Max Power (Imp, STC) 12.65 A
Current at Max Power (Imp, NOCT) 10.34 A
Open Circuit Voltage (Voc, STC) 49.01 V
Open Circuit Voltage (Voc, NOCT) 46.00 V
Short Circuit Current (Isc, STC) 13.55 A
Short Circuit Current (Isc, NOCT) 10.94 A
Bifacial Backside Power Gain Approx. 15% to 30% depending on site and design
Nominal Operating Cell Temperature (NOCT) 43 ± 2 °C
Operating Temperature Range -40 °C to +85 °C
Temperature Coefficient of Pmax -0.35 % / °C
Temperature Coefficient of Voc -0.27 % / °C
Temperature Coefficient of Isc +0.05 % / °C
Maximum System Voltage 1500 V DC
Series Fuse Rating 25 A
Module Dimensions (L x W x T) 2272 mm x 1133 mm x 35 mm
Weight 32.5 kg
Front and Back Glass 2.0 mm low iron glass on each side
Junction Box Protection Class IP68, weatherproof PPO housing
Connector Type MC4 compatible, IP68 rated
Cable Cross Section and Length 4 mm², 500 mm length
Cell Encapsulant PID free and UV resistant encapsulant

Certifications & Compliance

Certifications: Manufactured under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 quality, environmental, and safety systems. Factory processes are independently assessed by Black & Veatch for reliability and performance assurance.
Inverter Compatibility: Compatible with most modern grid tied string and central inverters designed for 1500 V DC systems. MC4 compatible connectors and standard IV parameters make integration straightforward with leading inverter brands.
Environmental: Designed for harsh outdoor use with IP68 junction box and dual glass construction. The panel is suited for desert, coastal, and high humidity locations when mounted according to manufacturer guidance.
Warranty: 12 year limited product warranty against manufacturing defects. Linear power warranty with guaranteed output of 91.95% at year 12 and 82.05% at year 30, corresponding to an average annual degradation rate of approximately 0.6%.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
