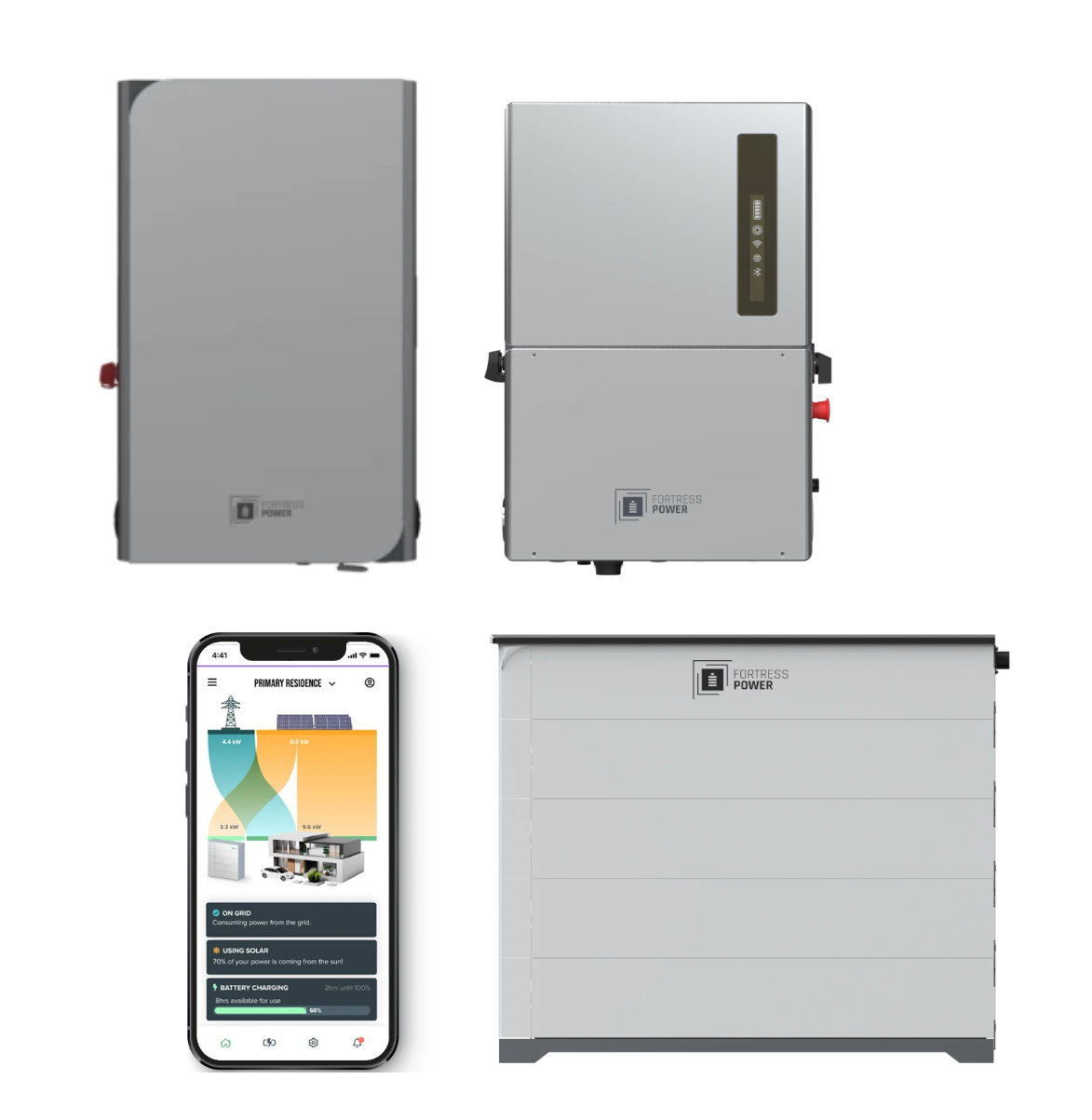

Fortress Power Avalon HV Pro ESS with Smart Energy Panel, 7.6kW Inverter, 14.7kWh (3 x 4.9kWh Batteries), 200 A Transfer Switch

Fortress Power Avalon HV Pro ESS with Smart Energy Panel, 7.6kW Inverter, 14.7kWh (3 x 4.9kWh Batteries), 200 A Transfer Switch

Regular price $14,371.39 USD
Regular price Sale price $14,371.39 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-ESS-BTS-0001
  • Brands: Fortress Power
  • Compliance special features:
    • UL9540A Certified
    • NEC 2023 / Rule 21 / NY Megawatt Block
    • Outdoor / Indoor Rated (NEMA 3R/4X)
    • Scalable / Stackable
  • Documents:
  • Mpn number: 658978958
  • Product specifications:

    Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh

    AVALON HV INVERTERDC Input (PV)ModelAV-INV-081423-7.6Max. Input Voltage600 VRated Voltage380 VStart-Up Voltage80 VMPPT Voltage Range80 - 520 V AMax. Input Current Per String16 AMax. Short Circuit Current Per String25.6 ANumber Of MPPTs/Number Of Strings Per MPPT4/1AC OutputRated Output Power7.6 kWMax. Apparent Output Power (Grid)7.6 kVaMax. Apparent Output Power (Off-Grid)12.2 kVa, 10 secBack-Up Switch Time<10 msRated Output Voltage (L1-L2)240 VRated Output Voltage (L1/L2-N)120 VAc Output Voltage Range211 - 264 VRated Frequency60 HzFrequency Range55 - 65 HzRated Output Current31.7 AMax. Output Current (Grid)31.7 AMax. Output Overcurrent Protection, 10 sec (off-Grid)50.7 AMax. Allowance Phase Configurations100%Backup Support Configurationswhole-home and dedicated loadsPower Factor>0.99 (0.8 leading - 0.8n lagging)THD<3%AC Input (Grid)Input Voltage Range211 - 264 VMax. Input Current47.6 AFrequency Range58.8 - 61.2 HzEfficiencyPV Max. Efficiency97.60%PV CEC Efficiency97.20%Battery Charged by PV Max. Efficiency98.50%Battery Charged/Discharged to AC Max. Efficiency97.00%ProtectionGround Fault DetectionYesResidual (Leakage) Current DetectionYesIntegrated AFCI (DC Arc-Fault Circuit Protection)YesDc Reverse-Polarity ProtectionYes (PV only)Rapid Shutdown NEC 2017integrated sunspec-certified transmitterRSD ReceiverAPSmartManual Inverter Bypass SwitchYesEnergy StorageBattery voltage range120-500 VMaximum Charge/Discharge Current50 ABattery CommunicationCAN/RS485General DataDimensions (W*H*D)221.87*34.88*8.62 in (555.5*866*219mm)Weight89.59 Ibs (40.64 kgs)Mountingwall mountTopology **transformerlessOperation Temperature Range-13 ? to 140 ? (-25? to 60?)Ingress ProtectionTYPE 4X (IP66)Noise Emission<30 dB(A)Cooling Methodnatural convectionMax. Operation Altitude13,120 h (4000m)ComplianceUL 1741, UL 1741 SA, UL 1741 SB, UL9540, IEEE 1547-2018, IEEE, 1547.1-2020, UL 1699B, UL 1998, California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class BGenerator SupportYesAVALON HV BMS & BATTERYModel NoAV-BATT-081423-3Battery Modules3Nominal Voltage (V)144Operation Voltage Range (V)119.25 ~ 157.5Nominal Capacity (Ah)102Nominal Energy (Kwh)14.7Nominal Charge/Discharge Current (A)50Maximum Units In Parallel4Warranty (Years)10Cycle Life @ EOL 70%8000Communication ProtocolCANWeight302 lbs (137 kg)Dimensions43 x 28.15 x 10.96 in (1092 x 715 x 278.4 mm)Ingress ProtectionIP65Operation Temperature Charge0? to 50?Operation Temperature Discharge-20? to 55?CertificationsUL1973, UL9540. UL9540A, CEC, SGIP, AC156Transportation ClassificationUN3480, Class 9AVALON SMART ENERGY PANELPerformanceModelAV-EP-081423AC Voltage120/240 VFeed-in TypeSplit PhaseGrid Frequency50/60 HzCurrent Rating200 AMax Input Short Circuit Current10 kAOvercurrent Protection Device100 - 200A; service entrance ratedAc Meternon-RGM is standard, Revenue Grade Meter is optionalPrimary Connectivityethernet / wifi / bluetoothUser InterfaceFortress AppBackup Transitionautomatic transfer for backupExpandabilitysupports up to 3 Avalon HV hybrid inverters, up to 35 kW loadWarranty10 yearsMechanicalDimensions35.4 x 22.2 x 9.45in (900 x 565 x 240mm)Weight55 lbs (25 kg)Mounting Optionswall mountElectrical ConnectionsSmart Load Control12 positions. Control up to 12 single phase loads, 6 split phase loads, or any combination, up to 50ASmart Load Control Modesautomatic, scheduled, or manual controlEv Charging Smart Load Provisionup to 50AAc Coupling Smart Load Provisionup to 50AGenerator Smart Load Provisionup to 50ANon-Backup Lug ConnectionsincludedEnvironmentalOperating Temperature-4 ? to 122 ? (-20C to 50C)Operating Humidityup to 100% condensingMaximum Elevation3000m (9,843 ft)Environmentindoor and outdoor ratedEnclosure TypeNEMA 3RCompliance & CertificatesCertificationsUL67, UL1741 PCS, UL869A, UL916EmissionsFCC Part 15, ICES 003Accessories (not included, unless otherwise noted)Main BreakerEaton CSR2200N, 2pole/200A/25kAICPCS Inverter Grid Breaker (Included)NDB2T-63, 2pole/200A/25kAICPCS Inverter Backup BreakerEaton BR260orBR2125, 1or2or3pole/60Aor125A/25kAICOther System Components (EV, AC Coupled Inverter, Generator)based on component specHold Down KitEaton X-IQ-NA-HD-200A with screws

  • Qb p cost: 24.44
  • MPN Number: 658978958
View full details
  • Fortress power Avalon HV Pro ESS 7.6kW 14.7kWh is designed to seamlessly integrate into any home, providing a reliable solution for power outages while optimizing energy usage for cost savings. With advanced load management, the system ensures efficient operation by adapting to your specific needs. The user-friendly app offers real-time monitoring and control, making it easier to manage your energy resources. Whether installed indoors or outdoors, Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh scalable system provides the flexibility and reliability needed to secure your home’s energy future.

    Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh Features

    Smart energy management for efficient operation

    Automatically optimizes energy usage, reducing costs and ensuring reliable backup power during outages.

    Scalable up to 176.4 kWh for extensive backup

    Expandable storage capacity to meet growing energy demands, providing long-lasting power security.

    Compatible with various inverters and grid configurations

    Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh easily integrates with multiple inverters and grid setups, offering flexibility in installation and use.

    Indoor/outdoor installation with a durable enclosure

    Weather-resistant design suitable for both indoor and outdoor environments, ensuring robust performance.

    Intuitive app for real-time monitoring and control

    User-friendly mobile app allows seamless control and monitoring of the system from anywhere.

    How it works

    Fortress Power Avalon HV Pro ESS 7.6kW 14.7kWh is truly an all-in-one, wholehome backup system. The system combines a hybrid inverter, high-voltage battery, and a smart energy panel.

    Avalon Smart Energy Panel

    Thumbnail

    Maintain control of your large and small appliances. Plus, monitor how your system is working.


    Avalon HV Inverter
    Thumbnail

    Convert DC energy from your solar panels to AC energy to serve your home needs.

    Avalon HV Battery

    Thumbnail

    Stores your energy, providing you safety and security during a power outage.
