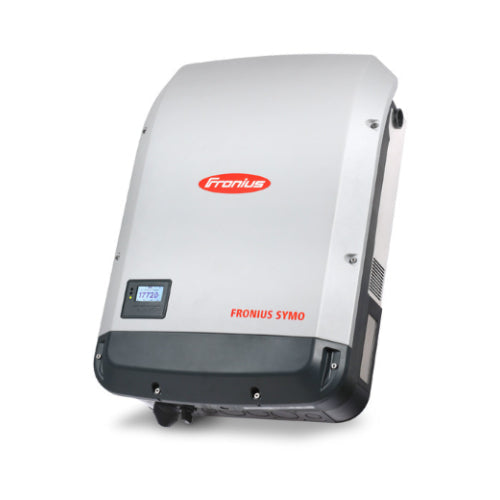

Fronius Symo Advanced 24.0-3 480vac Lite - 4,21,00,95,801

Fronius Symo Advanced 24.0-3 480vac Lite - 4,21,00,95,801

Regular price $3,450.00 USD
Regular price Sale price $3,450.00 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SIV-0324
  • Brands: Fronius
  • Documents:
  • Height: 28.5
  • Length: 8.9
  • Special sections quote cta:
    • AFCI
  • Width: 20.11
View full details
  • Fronius Symo Advanced 24.0-3 480V Inverter

    The Fronius Symo Advanced 24.0-3 480V inverter is a top-tier solution for commercial solar power applications. This efficient inverter, associated with model number Fronius 4,21,00,95,801, provides reliable energy conversion for large-scale installations. Its advanced features, including a transformerless design and integrated data management, ensure both high efficiency and excellent usability.

    Product Features

    High Efficiency Performance

    The Fronius 4,21,00,95,801 inverter boasts a maximum efficiency of 98%, ensuring optimal energy conversion from your solar panels to usable electricity.

    Advanced Cooling System

    Equipped with variable speed fans, this inverter maintains optimal operating temperatures, enhancing longevity and performance during high-demand periods.

    Comprehensive Monitoring Solutions

    Featuring Wi-Fi and Ethernet capabilities, this inverter allows seamless monitoring and data logging via Fronius Solar.web, keeping you informed about your system's performance at all times.

    Robust Protective Mechanisms

    Built with integrated DC reverse polarity protection and AFCI, the Fronius Symo ensures safety and compliance with UL 1741-2010 standards.

    Flexible Installation Options

    Designed for both indoor and outdoor installations with NEMA 4X protection, this inverter offers versatility in mounting to suit various site conditions.

    How It Works

    This solar inverter efficiently converts direct current (DC) from photovoltaic panels into alternating current (AC) suitable for commercial grid applications. It manages multiple input strings and optimizes output through Maximum Power Point Tracking (MPPT).

    Maximum Power Point Tracking (MPPT)

    The embedded MPPT technology maximizes the energy harvest by continuously adjusting the panel load to maximize output.

    Transformerless Operation

    This feature increases efficiency and reduces weight, making it easier to install while offering a high power output range that suits various applications.

    Integrated Data Management

    The inverter includes a datalogger and web server for comprehensive monitoring and remote adjustments via the Fronius Datamanager.

    Specifications

    Model Number 4,21,00,95,801
    Max. Output Power 23995 VA
    Output Configuration 480 V Delta +N
    Frequency Range 45-65 Hz (nominal 60 Hz)
    Efficiency Max 98%, CEC 97.5%
    Operating Temperature Range -40F to 140F (-40C to 60C)
    Protection Class NEMA 4X
    Remote Monitoring Wi-Fi/Ethernet, Fronius Solar.web
    Installation Type Indoor/Outdoor
    Weight 95.7 lbs
