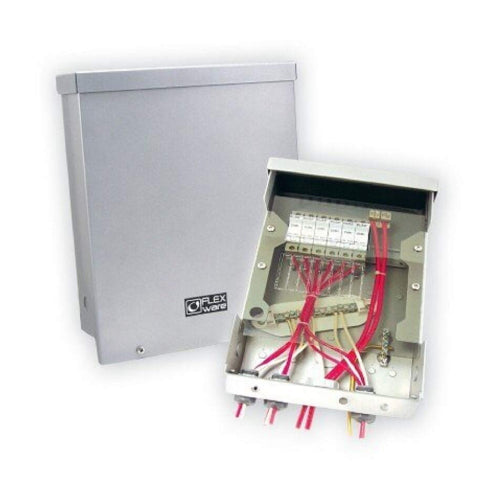

Outback Power FWPV-8 Array Combiner Box Overview

The Outback Power FWPV-8 Array Combiner Box is a versatile and robust solution for managing photovoltaic (PV) systems. Designed to accommodate a range of overcurrent protection requirements, this combiner box is perfect for both small and large setups. Its durable, rainproof aluminum enclosure ensures reliable outdoor performance, offering multiple mounting options for enhanced flexibility. This product sets new standards in PV balance-of-system hardware, offering easy, efficient installation.

Product Features

Efficient Array Combination

With the target keyword Outback Power FWPV-8, this combiner box facilitates the effortless integration of multiple strings from a single array, optimizing electricity conversion and system organization.

Durable Construction

Featuring a powder-coated aluminum enclosure, this product is built to withstand outdoor conditions while maintaining optimal performance and security. Its UL Type 3R rating ensures rainproof protection.

Flexible Mounting Options

The combiner box supports vertical wall, pole, or sloped roof mounts up to 14 degrees, offering versatile installation options suited to various setups.

Secure and Safe Design

A padlock hole in both the chassis and cover allows for up to a 3/8 inch lock, enhancing security while preventing unauthorized access or tampering.

User-Friendly Installation

The box includes dual output lug terminals and features a polycarbonate deadfront panel, which aids in neat wire routing and prevents accidental contact with live terminals.

How It Works

The FLEXware FWPV-8 facilitates the management of photovoltaic systems by combining multiple input strings into a single output. Its design accommodates both low and high voltage applications, supporting various circuit breaker and fuse holder configurations.

Comprehensive Circuit Support

The system allows for up to 8 separate circuits using 150VDC breakers, ensuring flexibility in designing PV system layouts and meeting different electrical needs.

Enhanced Safety Mechanisms

Each component of the combiner box ensures that safety and security are prioritized, with design features aimed at preventing accidental electrical contact and optimizing system stability.

Optimized Wire Management

The angled terminal bus bar and generous wiring knockouts facilitate efficient wire management, minimizing clutter and reducing installation challenges.
