Tigo Energy 490-00000-10

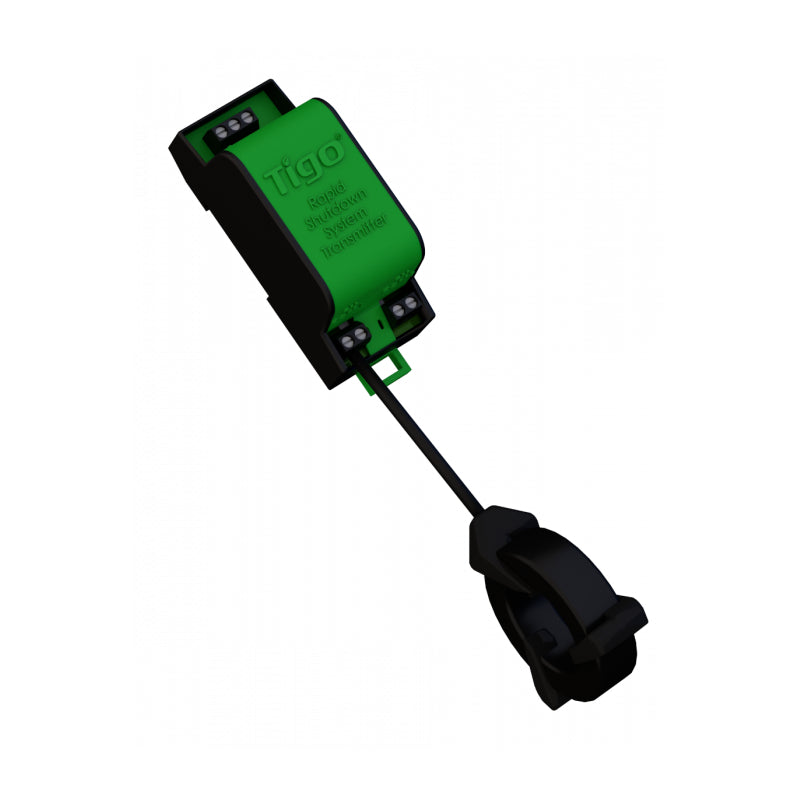

Tigo RSS Transmitter Din Rail - Single RSS Core

The Tigo RSS Transmitter Din Rail, featuring the singular RSS Core model 490-00000-10, is designed to optimize solar array performance by providing reliable and efficient rapid shutdown capabilities. Leveraging Tigo Energy's advanced Pure Signal Technology, this transmitter enhances the safety and operational efficiency of photovoltaic systems, ensuring compliance with industry standards.

Product Features

Pure Signal Technology

Experience enhanced signal clarity and reduced interference with the Tigo RSS Transmitter's Pure Signal Technology, ensuring consistent communication and operation within solar setups.

Single Core Efficiency

Utilizing a single RSS Core, this transmitter effectively manages up to 10 conductors, optimizing the rapid shutdown system setup for straightforward installation and maintenance.

Comprehensive Safety Compliance

Meet NEC 2017 and 2020 690.12 Rapid Shutdown requirements with ease, as the RSS Transmitter ensures that Tigo TS4-A-F and TS4-A-2F units automatically enter rapid shutdown mode when necessary.

Seamless Integration

The RSS Transmitter efficiently integrates with multiple leading inverters, featuring compatibility with the Tigo Enhanced label for smooth operations within existing photovoltaic systems.

Flexible Installation Options

With its Din Rail mounting capability and optional outdoor kit, the RSS Transmitter caters to various environmental conditions, ensuring robust and reliable performance.

How It Works

The Tigo RSS Transmitter operates by synchronizing with Tigo TS4 units and ensuring rapid shutdown through its network of connected cores, enhancing safety and system compliance in everyday solar energy use.

Core Connectivity

Connects up to 10 conductors per core, allowing for scalable and flexible wiring configurations using its advanced Pure Signal Technology.

Din Rail Installation

Featuring a compact design that fits securely onto a standard 35mm DIN Rail, it offers a streamlined solution for space-efficient installations.

Enhanced Signal Coordination

The transmitter outputs a coordinated keep-alive signal to the array, ensuring uninterrupted power through its reliable signal transmission framework.

Specifications

Manufacturer Part Number (MPN)	490-00000-10
Input Voltage	12V DC (+/-2%)
Input Current	1A
Maximum System Voltage	1500V DC
Communication Type	Power Line Communication (PLC)
Outdoor Rating	IP68, NEMA3R
Operating Temperature Range	-40°C to +70°C
Weight	670g
Dimensions	178.5mm x 134mm x 25.5mm
Cable Rating	1000V Rated, 1500V Rated
