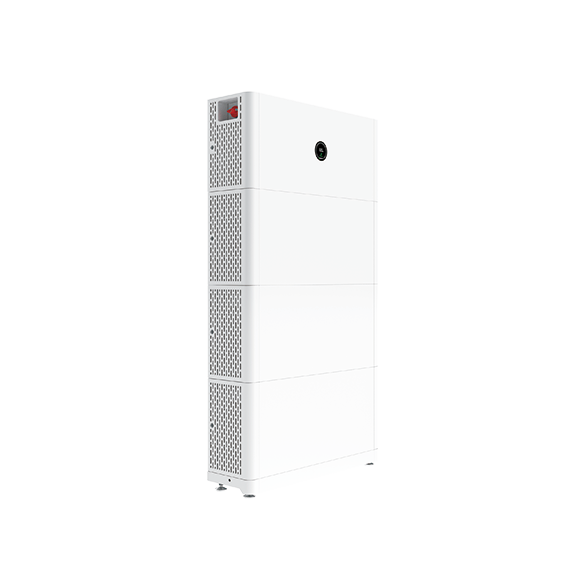

The Growatt APX 5.0P-B1 US is a 5kWh cobalt-free LiFePO4 high-voltage battery module for the APX HV storage system — stack 1–6 modules per tower under one APX power module.
Key Features
- 5kWh LFP (cobalt-free) high-voltage battery module
- 1–6 modules per storage tower (5–30kWh)
- Built-in modular energy optimization; stacked cable-free installation
- IP66, -10°C to 50°C operating range
- Requires one APX55042-P0-US Power Module (BMS) + base per tower
Compatibility: Growatt MIN TL-XH-US inverters; APX55042-P0-US power module required
Specifications
| Model | APX 5.0P-B1 US |
| Part Number | SD00.0005200 |
| Capacity | 5.0 kWh LFP |
| System | High-voltage stack, 1–6 modules per tower |
| Enclosure | IP66 |
| Chemistry | LiFePO4 (cobalt-free) |
| Certifications | IEC62619 (cell & pack), IEC60730, UL1973, UN38.3 |
Authorized Growatt distribution — full 10-year manufacturer warranty. Ships single units via ground freight from Growatt USA (Eastvale, CA) or our Louisville, KY warehouse.
| Manufacturer | Growatt |
|---|
