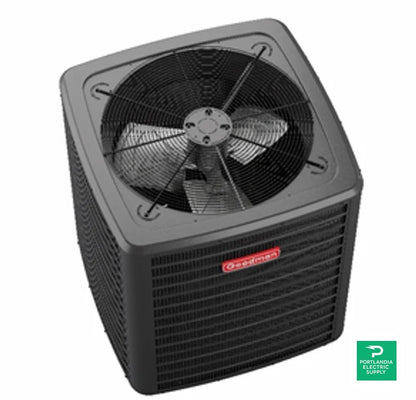

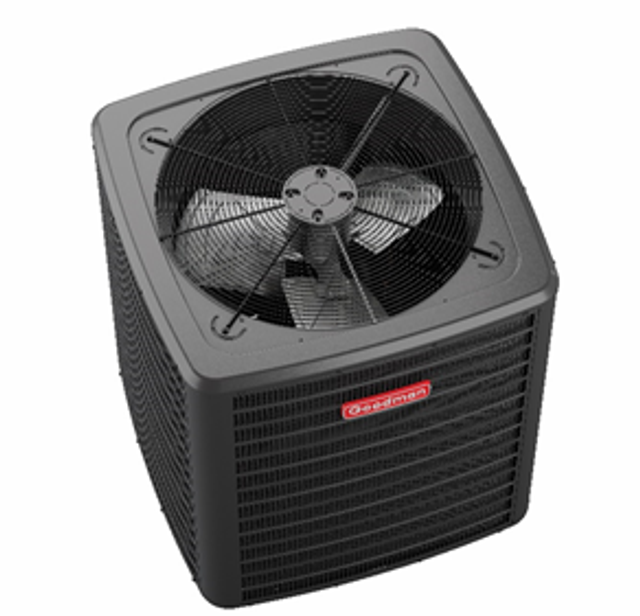

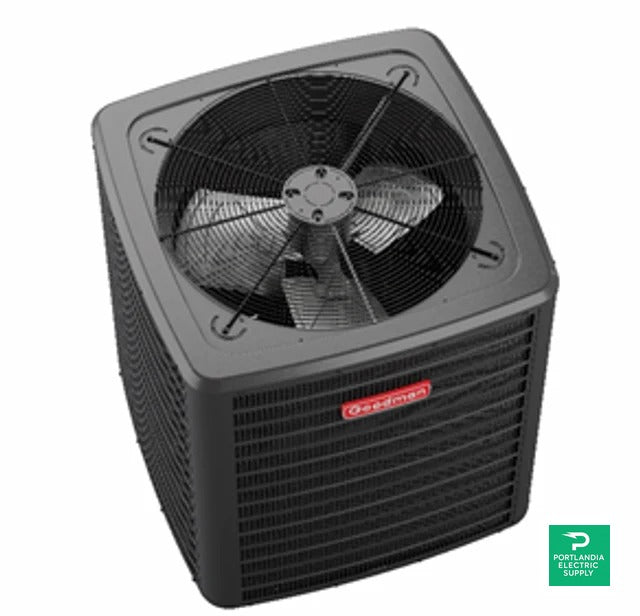

Goodman GLXS3BN6010 — 5-Ton, 13.4 SEER2, R-32
The Goodman GLXS3BN6010 air conditioner is a dependable, single-stage R-32 condenser designed for efficient split-system cooling. It ships pre-charged for 15' of 3/8" liquid line and includes a factory filter-drier, high-pressure protection, and easy-access sweat service valves for quick installation.
Key Features
- R-32 refrigerant (lower GWP than R-410A)
- GLXS3B series rated up to 15 SEER2 (this model 13.4 SEER2)
- Single-stage scroll compressor (RLA 23.9 / LRA 148.0)
- 5 mm copper-tube / enhanced aluminum-fin coil
- Enclosed contactor; factory filter-drier; high-pressure switch
- AHRI Certified & ETL Listed
Specifications
| Cooling Capacity | 5.0 ton (60,000 BTU/h) |
|---|---|
| Sound | 74 dBA |
| Electrical | 208/230 V, 1-phase, 60 Hz; MCA 31.1 A; MOCP 50 A |
| Refrigerant Connections | Liquid line: 3/8″ O.D.; Suction line: 1-1/8″ O.D. |
| Service Valves | Liquid: 3/8″ (sweat); Suction: 7/8″ (sweat) |
| Cabinet (W × D × H) | 35.5 × 35.5 × 39.5 in |
| Weight | 229 lb (ship 244 lb) |
| Refrigerant | R-32; factory charge 91 oz |
Replaces GSXN3 models in the R-32 lineup.
