GoodWe 4G Dongle - GA10081-83-00P

GoodWe 4G Dongle - GA10081-83-00P

$206.64 USD
$206.64 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-PA-ELC-1978
View full details

Product Description

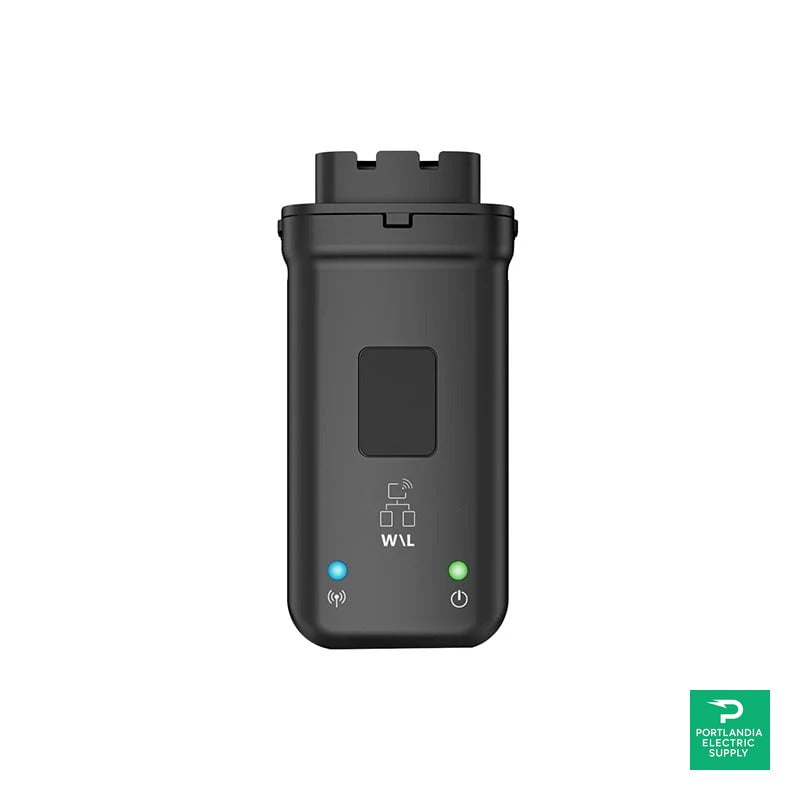

  • GoodWe GA10081-83-00P 4G dongle — Cellular USB (IP65)

    The GoodWe GA10081-83-00P 4G dongle provides cellular connectivity for GoodWe inverters where Wi-Fi isn’t feasible, with simple USB plug-and-play and LED status indication.

    Key Features

    Rugged, low-power cellular backhaul

    With IP65 enclosure, <4 W draw, and broad LTE/WCDMA/GSM band support (model-dependent), the GoodWe GA10081-83-00P 4G dongle keeps systems online in remote or challenging sites.

    Specifications

    GoodWe GA10081-83-00P 4G dongle — full technical data
    General
    Max. inverters supported 1
    Connection interface USB
    Installation Plug and Play
    Indicator LED
    Dimensions (W × H × D) 49 × 96 × 32 mm
    Standard SIM card size 25 × 15 mm
    Ingress protection IP65
    Power consumption < 4 W
    Environment
    Operating temperature −30 ~ +60 °C
    Storage temperature −40 ~ +70 °C
    Relative humidity 0–100% (non-condensing)
    Max. operating altitude 4000 m
    Wireless bands (per regional kit)
    LTE-FDD B1 / B3 / B7 / B8 / B20 / B28A
    LTE-TDD B40
    WCDMA B1 / B8 (alt.: B1 / B2 / B5 / B8)
    GSM / GPRS B3 / B8

    Consult the datasheet to match carrier compatibility for your region before deploying the GoodWe GA10081-83-00P 4G dongle.
