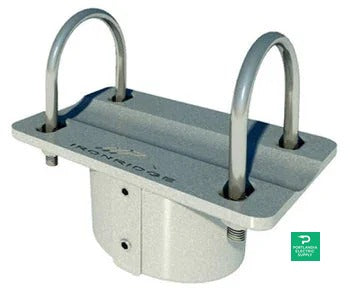

Ironridge Sga Bonding Rail Connector Top Cap - 70-0300-SGA
Ironridge Sga Bonding Rail Connector Top Cap - 70-0300-SGA
PayPal Pay in 4 interest-free payments of $15.39 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-PA-REC-0485
- MPN
- 70-0300-SGA
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Ironridge. 50,000+ SKUs from 169 authorized brands.
Ironridge 70-0300-SGA
The Ironridge SGA Bonding Rail Connector Top Cap is designed for seamless integration in solar mounting applications, featuring superior build quality with aluminum construction. This product, part number 70-0300-SGA, provides reliable performance and helps ensure that your installation is durable and secure. The use of high-quality materials enhances its longevity while enabling fast and easy assembly, making it an essential component for any solar project.
Product Features
High-Quality Aluminum Construction
This top cap is made from premium aluminum, ensuring strength and durability in various environmental conditions. The material choice, ALMAG 535, provides excellent resistance to corrosion, allowing the product to maintain its integrity over time.
Easy Installation Process
Designed with usability in mind, the Ironridge SGA Bonding Rail Connector Top Cap facilitates quick and straightforward installation, reducing setup time and effort. The included components, like the set screws and washers, enhance the ease of assembly.
Secure Fixing Components
The kit comes with multiple fixing components, including conical set screws and flat washers that ensure a secure fit. This feature guarantees that your installation remains stable under various load conditions, providing peace of mind during usage.
Versatile Compatibility
This top cap is compatible with both 2-inch and 3-inch SGA rails, making it versatile for different solar configurations. Its adaptability to various systems enhances its usability across multiple installations.
Galvanized Fastening Elements
All fastening elements include galvanized steel parts, which improve rust resistance and overall longevity. This consideration in material selection significantly boosts the product's reliability in outdoor environments.
How It Works
The Ironridge SGA Bonding Rail Connector Top Cap works by securing the upper ends of solar rails to provide a stable platform for solar panels. Its various components come together to create a robust assembly that holds essential parts in place, allowing for the safe operation of your solar energy system.
Cap Component
The flat cast aluminum cap serves as the primary protective cover for the rail structure, sealing the top and preventing debris infiltration while maintaining aesthetic appeal.
U-Bolts
The custom U-bolts in this kit provide additional support to the system, allowing for a firm connection to the rail while facilitating bonding as required by electrical codes.
Locking and Flat Washers
The included locking and flat washers play a crucial role in maintaining tension within the assembly, preventing loosening due to vibration or environmental movement.
Specifications
| Item Number | 70-0300-SGA |
| Material | ALMAG 535 Aluminum |
| Finish | Clear Anodized |
| U-Bolt Size | Custom for SGA Pipe |
| Set Screw Quantity | 2 |
| Washer Type | Flat and Lock, Galvanized |
| Nut Type | Hex Nut, Galvanized |
| Overall Weight | 7.5 lbs |
| Dimensions (L x W x H) | 3.0 x 3.5 x 2.8 inches |
| Thread Size | 3/8-16 THD |
| SKU | PES-PA-REC-0485 |
|---|---|
| MPN | 70-0300-SGA |
| Manufacturer | Ironridge |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Pallet price | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
