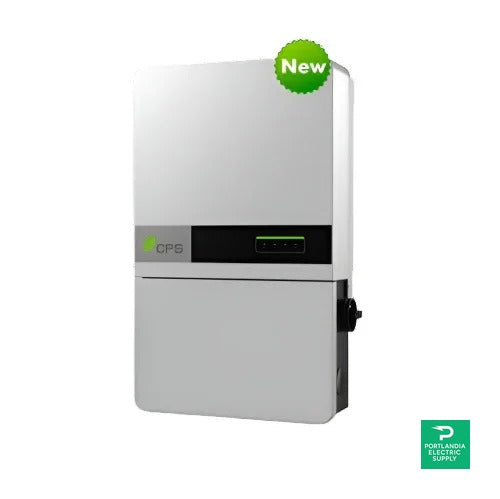

Chint 25kW 3Phase String Inverter 480Vac with RSD Wire Box
The Chint Power SCA25KTL-DO-R/US-TIGO is a high-performance string inverter designed for various applications like rooftops and carports. This reliable inverter is engineered to meet North American standards, achieving a peak efficiency of up to 98.5% and CEC efficiency of 98.0%. Its robust design includes an integrated Rapid Shutdown Wire-box for enhanced safety, making it a versatile solution for different environments and grid connections.
Product Features
High Efficiency Design
Featuring a remarkable 98.5% peak efficiency, the Chint Power Inverter maximizes energy conversion, ensuring optimal output for your solar installations.
Flexible Installation
Thanks to the 15-90° mounting orientation, this inverter offers adaptability for low-profile roof installations, accommodating various angles for seamless integration.
Advanced Safety Features
With NEC 2017 PVRSS certified rapid shutdown and UL listed arc-fault circuit protection, this inverter prioritizes user safety and compliance with industry regulations.
Integrated Monitoring and Upgrades
The optional Flex Gateway allows for remote firmware upgrades and real-time monitoring, providing users with enhanced control and system insights.
Durable Outdoor Enclosure
The NEMA Type 4X enclosure ensures the inverter withstands harsh environmental conditions, guaranteeing durability and consistent performance.
How It Works
The CPS SCA25KTL inverter efficiently converts DC inputs from solar panels into AC outputs for grid distribution. It operates with multiple components to enhance performance and reliability.
DC Input and MPP Trackers
The inverter includes two MPP trackers, optimizing solar energy harvest by adjusting to different panel orientations and sun exposure.
Rapid Shutdown Wire-Box
This component ensures compliance with safety standards by providing rapid disconnection of power during maintenance or emergency situations.
Integrated Monitoring System
The inverter supports comprehensive monitoring through the CPS Flex Gateway, achieving streamlined data collection and system management.
Specifications
| Model Name | CPS SCA25KTL-DO-R/US-480 |
| Max. PV Power | 37.5kW (22kW per MPPT) |
| Max. DC Input Voltage | 1000Vdc |
| Start-up DC Input Voltage | 330V / 80W |
| Number of MPP Trackers | 2 |
| Rated AC Output Power | 25KW |
| Output Voltage Range | 422 - 528Vac |
| Max. Efficiency | 98.5% |
| Topology | Transformerless |
| Operating Temperature Range | -22°F to +140°F / -30°C to +60°C |
| SKU | PES-SPS-SIV-0401 |
|---|---|
| MPN | SCA25KTL-DO-R/US-TIGO |
| Manufacturer | Chint Power |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Shop by inverter type | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number | |
| Voltage |
No documents available for this product. Contact us to request documentation.
