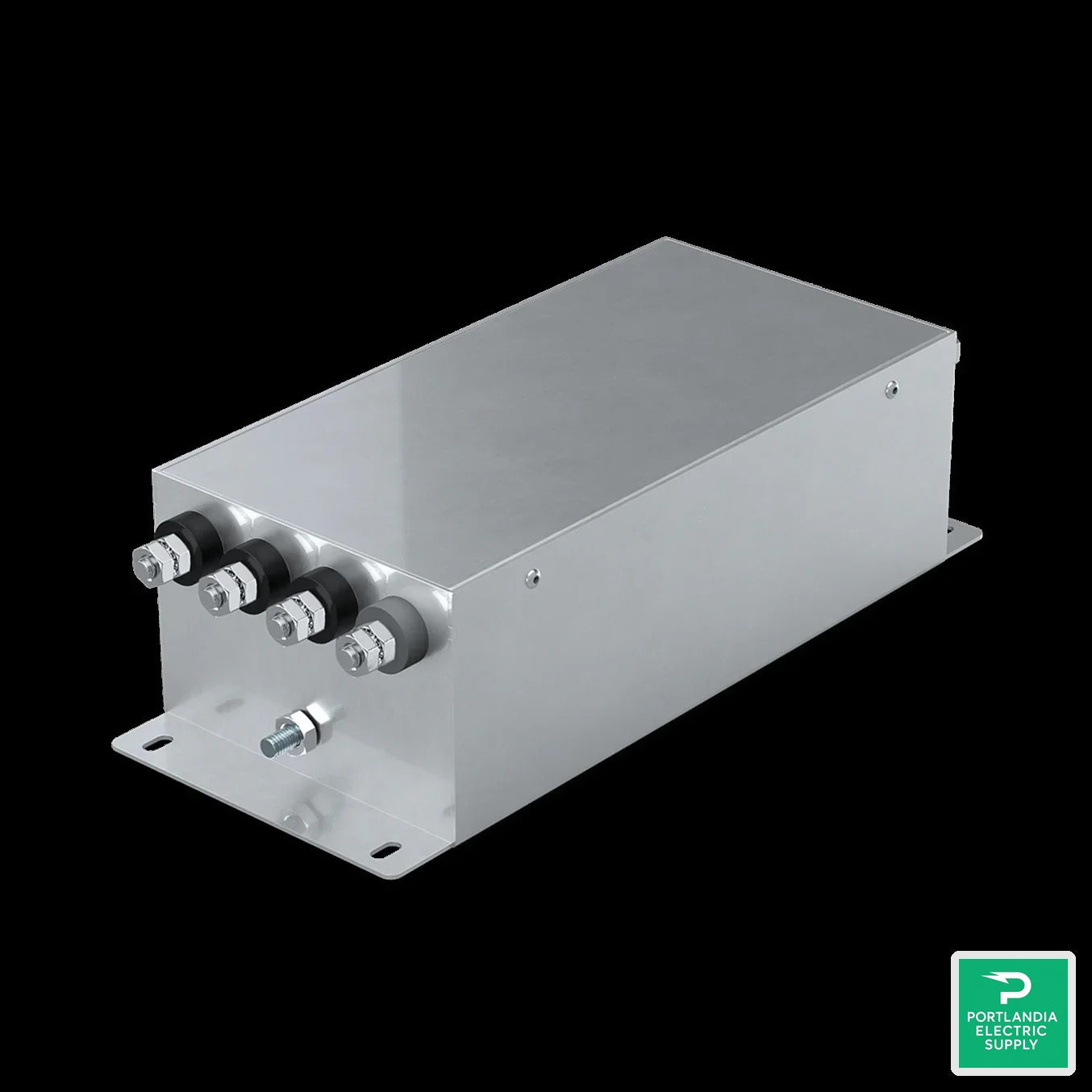

Enphase Enphase Radius Power Line Filter - Q-LCF-250-3P

Enphase Enphase Radius Power Line Filter - Q-LCF-250-3P

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Enphase Enphase Radius Power Line Filter - Q-LCF-250-3P

Trusted by 1,000s of Contractors & Installers

Available to Order

SKU PES-PA-ELC-1103

OEM Authorized Dealer Full OEM Warranty

$1,181.64 USD

$ $1,181.64 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Datasheet

Installation Manual

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-PA-ELC-1103
MPN: Q-LCF-250-3P

Complete the job

Compatible gear contractors pair with this item

Solar panels Runergy Hyperion 400W Mono PERC Bifacial Dual Glass HY-DH108P8B-400 Solar Panel

$140.99

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Enphase Enphase Radius Power Line Filter - Q-LCF-250-3P $1,181.64

Certifications<

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

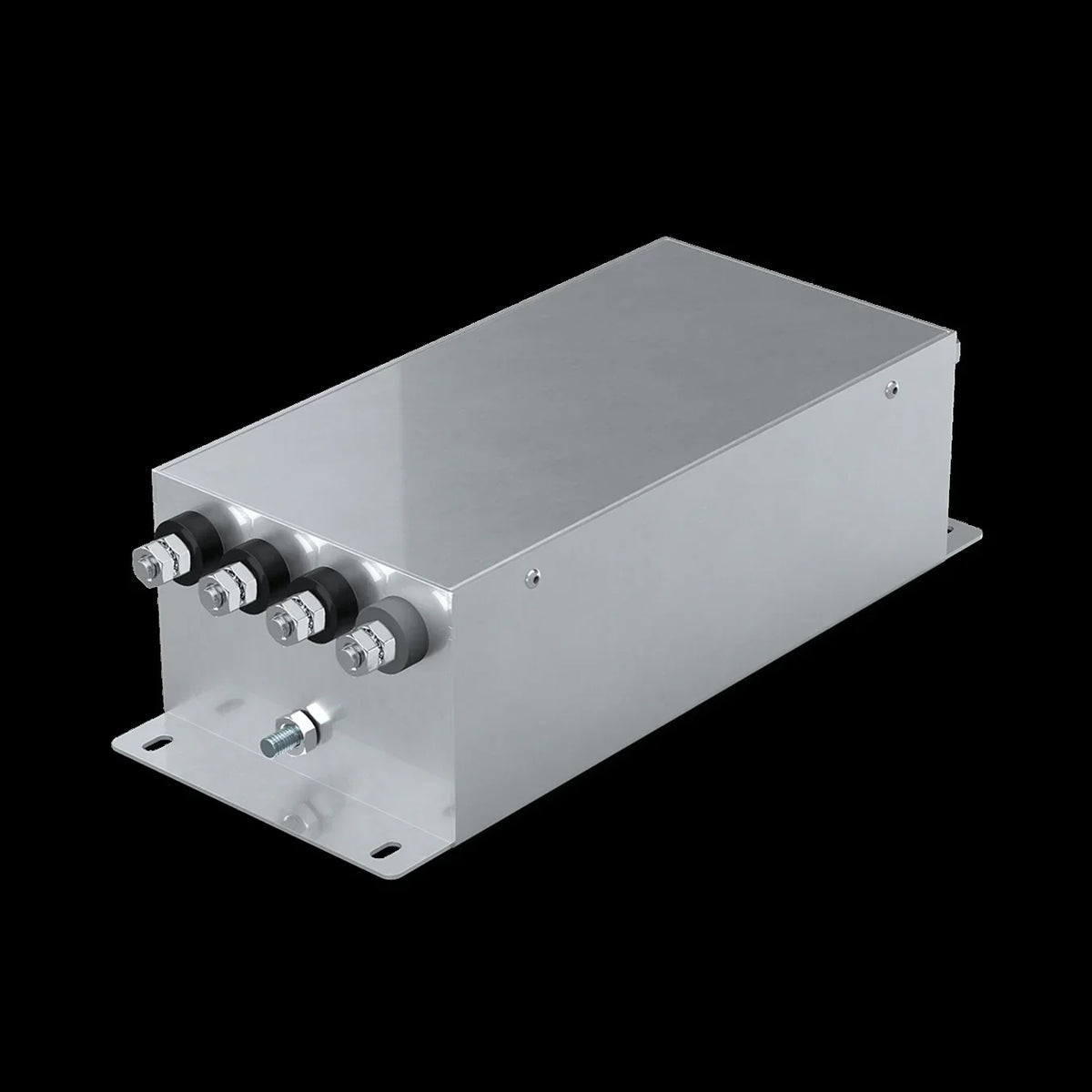

Enphase Q-LCF-250-3P

The Enphase Radius Power Line Filter Q-LCF-250-3P is an essential component in commercial settings, designed to enhance communication efficiency across Enphase microinverter installations. By effectively separating power line communication (PLC) domains, this product ensures uninterrupted operations even under challenging conditions such as multiple IQ Gateways on a single utility transformer. Its compatibility with IQ6, IQ7, and IQ8 Commercial Series Microinverters makes it a versatile solution for modern energy demands, delivering reliability and performance for various applications.

Product Features

High Current Capacity

The Q-LCF-250-3P supports a maximum current of up to 250 A, ensuring it can handle significant electrical loads. This feature is crucial for maintaining optimal performance in environments where multiple devices operate simultaneously, allowing users to rely on its robust functionality.

Advanced Voltage Handling

With a maximum voltage rating of 480 VAC + 10%, this power line filter accommodates a broad range of voltage conditions. This capability ensures that the device can adapt to varying electrical environments without compromising performance or safety.

Wide Temperature Range

This filter operates effectively in ambient temperatures ranging from -40°C to 65°C (-40°F to 149°F). This feature enables its use in diverse climates, making it suitable for various commercial applications, ensuring reliable performance regardless of environmental conditions.

Compact and Lightweight Design

Weighing only 13.6 kg (29.98 lbs) and measuring 400.1 mm Aƒ— 162 mm Aƒ— 114.3 mm, the Q-LCF-250-3P is designed for easy installation and integration into existing systems. Its compact size does not compromise functionality, allowing for effective use in limited spaces.

Compliance with Safety Standards

The product is RoHS compliant and certified by cURus and EN60939, ensuring it meets essential safety standards. This compliance provides peace of mind to users, knowing that this filter is built adhering to high safety and environmental standards.

How It Works

The Enphase Radius Power Line Filter operates by isolating communication signals across the electrical system to enhance data transmission and reduce noise interference. This installation ensures seamless communication between microinverters and gateways, which is vital for optimal system performance.

Connecting Configuration

The filter connects both the Enphase IQ Gateway and microinverters on the load side, while the utility feed connects to the line side. This configuration allows for effective communication while protecting the system from electrical noise.

Noise Reduction Capability

By separating PLC domains, the filter minimizes the impact of electrical disturbances caused by site loads. This capability is essential for maintaining clear communication and maximizing the efficiency of the microinverter system.

Installation Flexibility

The design accommodates various configurations and can be mounted in an appropriate enclosure using standard mounting holes, making it adaptable to different installation environments.

Specifications

Maximum Current per Line	250 A (temperature adjusted to 65°C)
Maximum Voltage	480 VAC + 10%
Frequency	50/60 Hz
Power Dissipation	75 W max (current dependent)
Ambient Temperature Range	-40°C to 65°C (-40°F to 149°F)
Weight	13.6 kg (29.98 lbs)
Dimensions	400.1 mm Aƒ— 162 mm Aƒ— 114.3 mm (15.75" Aƒ— 6.36" Aƒ— 4.5")
RoHS/Safety Compliance	Yes/cURus, EN60939
Terminal Style/Size	Stud/M10
Typical Leakage Current	<10 mA (480 V/50 Hz or 60 Hz)
