LONGi 540W Solar Panel 144 Cell Bifacial LR5-72HBD-540M Clearance

LONGi 540W Solar Panel 144 Cell Bifacial LR5-72HBD-540M Clearance

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock

SKU PES-SPS-SPL-0171

LONGi 540W Solar Panel 144 Cell Bifacial LR5-72HBD-540M Clearance

$225.00 USD

$ $225.00 USD

Sale Sold out

Quantity

Secure Payment Methods

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Specifications

Datasheet

Rated Power (Pmax) 540 W

Open Circuit Voltage (Voc) 49.50 V

Max Power Voltage (Vmp) 41.65 V

Short Circuit Current (Isc) 13.85 A

Max Power Current (Imp) 12.97 A

Module Efficiency 20.9%

Cell Type Monocrystalline PERC

Cell Count 144 half-cut (6x24)

Bifacial Yes (bifaciality 70%)

Max System Voltage 1500 V DC (IEC/UL)

Max Series Fuse 25 A

Temperature Coefficient Pmax -0.34%/C

Temperature Coefficient Voc -0.265%/C

Temperature Coefficient Isc +0.05%/C

NOCT 45 C (+/-2)

Operating Temperature -40 to +85 C

Power Tolerance 0 to +3%

Pallet & Bulk Packaging

Per Pallet 31 panels

Per Container 620 panels

System Compatibility

ConnectorLONGi LR5 / MC4 EVO2

FrameAnodized aluminum alloy

GlassDouble glass (bifacial)

Max modules per string (1500V)30

Bifaciality70%

Need help sizing? Call (888) 876-0007

Certifications

IEC 61215Design qualification

IEC 61730Safety qualification

UL 61730North American safety standard

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

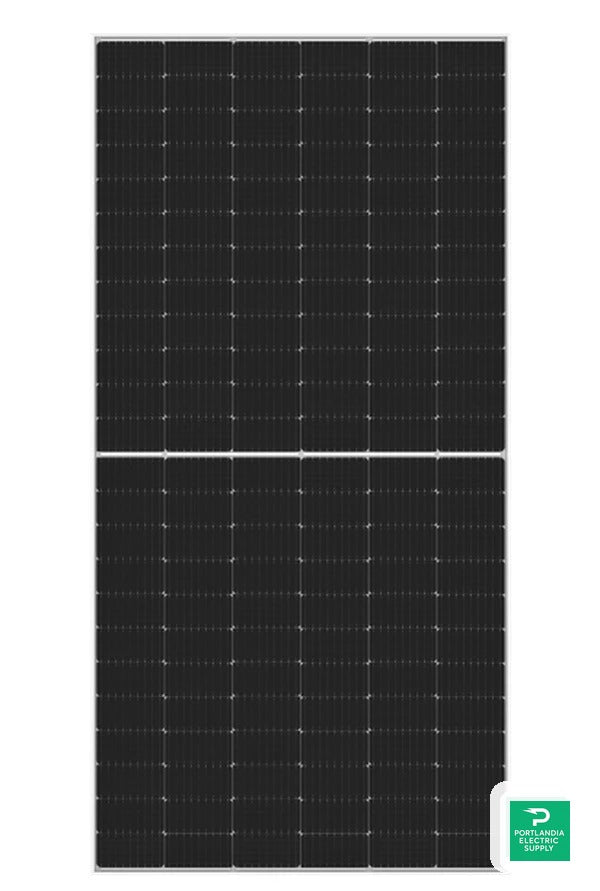

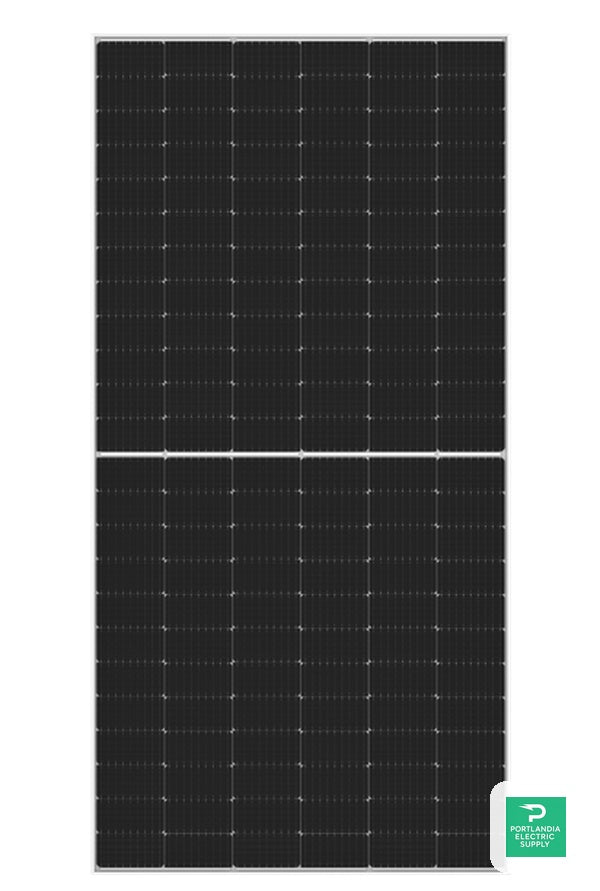

LONGi LR5‑72HBD‑540M is a high-efficiency bifacial monocrystalline solar panel featuring 144 half-cut PERC cells and dual-glass construction (glass–transparent backsheet).

Rated Power: 540 W • Module Efficiency: 21.1 %

Max System Voltage: 1500 V DC • MC4 connectors • Power Tolerance: 0 to +5 W

Mechanical load rated to withstand 5400 Pa snow/front and 2400 Pa wind/back pressure.

Temperature range: −40 °C to +85 °C.

Dimensions: 88.81″ × 43.77″ × 1.37″ (2256 × 1112 × 35 mm) • Weight: 71.21 lb (32.3 kg).

Warranty: 12‑year material/workmanship guarantee; 30‑year performance warranty (≤2 % first‑year degradation, ≤0.45 % annually thereafter; ≥84.95 % output after 30 years).

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

LONGi LR5‑72HBD‑540M is a high-efficiency bifacial monocrystalline solar panel featuring 144 half-cut PERC cells and dual-glass construction (glass–transparent backsheet).

Rated Power: 540 W • Module Efficiency: 21.1 %

Max System Voltage: 1500 V DC • MC4 connectors • Power Tolerance: 0 to +5 W

Mechanical load rated to withstand 5400 Pa snow/front and 2400 Pa wind/back pressure.

Temperature range: −40 °C to +85 °C.

Dimensions: 88.81″ × 43.77″ × 1.37″ (2256 × 1112 × 35 mm) • Weight: 71.21 lb (32.3 kg).

Warranty: 12‑year material/workmanship guarantee; 30‑year performance warranty (≤2 % first‑year degradation, ≤0.45 % annually thereafter; ≥84.95 % output after 30 years).
