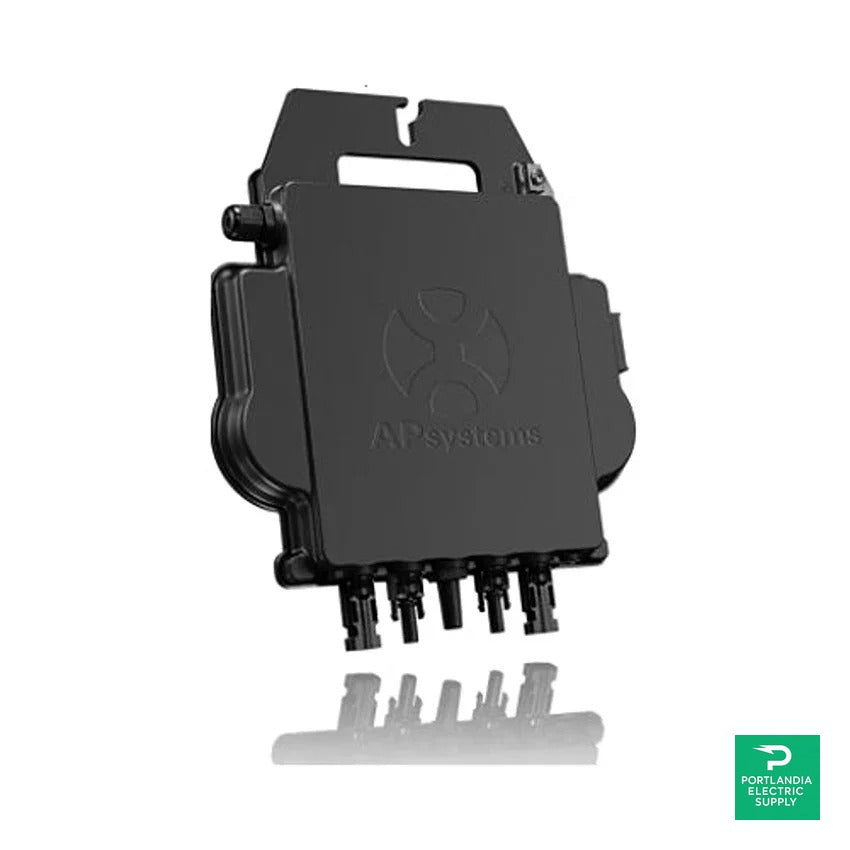

APsystems 768W Microinverter - 118001-DS3-L
The APsystems 118001-DS3-I microinverter is a cutting-edge solution designed for maximizing solar energy capture and conversion with efficiency. Tailored for residential and commercial use, this compact and robust device ensures seamless integration with larger solar power modules. With its dual input capabilities and advanced energy management, this inverter sets new standards in the industry, enhancing both performance and reliability.
Product Features
High Power Output
This microinverter offers exceptional power outputs of 640VA, 768VA, and 880VA, handling increased capacity from modern solar panels effortlessly, making it ideal for diverse solar power systems.
Dual MPPT Channels
Equipped with two independent Maximum Power Point Tracking (MPPT) channels, the DS3 ensures optimal energy harvesting even with varying sunlight exposure, enhancing overall efficiency.
Advanced Communication
Utilizing encrypted ZigBee communication, this device ensures secure and stable wireless data transmission between components, supporting robust energy management systems.
Innovative Design
The microinverter's compact architecture, enhanced with silicone encapsulation, promotes efficient thermal dissipation and superior waterproofing, ensuring long-lasting operation.
Integrated Reactive Power Control
Featuring Reactive Power Control (RPC), the inverter effectively stabilizes photovoltaic power influxes in the grid, adapting dynamically to fluctuating solar conditions.
How It Works
The APsystems DS3-I microinverter operates by converting DC power generated by solar panels into usable AC power for homes and businesses. Its dual-channel design allows simultaneous connection to two solar modules, optimizing power conversion and enabling remote monitoring for seamless maintenance.
Power Conversion
Transforms DC collected from solar panels to AC power, suitable for residential and commercial grid use, with high conversion efficiency and stability.
Secure Communication
Encrypted wireless connectivity offers safe and reliable communication with energy management systems, facilitating easy access to energy data and diagnostics.
Thermal Management
Advanced thermal management design, incorporating silicone encapsulation, reduces stress on electronic components, ensuring durability and consistent performance.
Specifications
| Recommended PV Module Power Range | 265Wp-570Wp+ |
| Peak Power Tracking Voltage | 25V - 55V |
| Maximum Input Voltage | 60V |
| Maximum Input Current | 18A |
| Nominal Output Voltage/Range | 240V / 211V - 264V |
| Nominal Output Current | 3.20A |
| Nominal Output Frequency/Range | 60Hz / 59.3Hz - 60.5Hz |
| Power Factor (Default/Adjustable) | 0.99 / 0.7 leading to 0.7 lagging |
| AC Bus Cable | 12AWG / 10AWG |
| Efficiency | 97% |
| SKU | PES-SPS-SIV-0551 |
|---|---|
| MPN | 118001-DS3-I |
| Manufacturer | APsystems |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Shop by inverter type | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number | |
| Wattage |
No documents available for this product. Contact us to request documentation.
