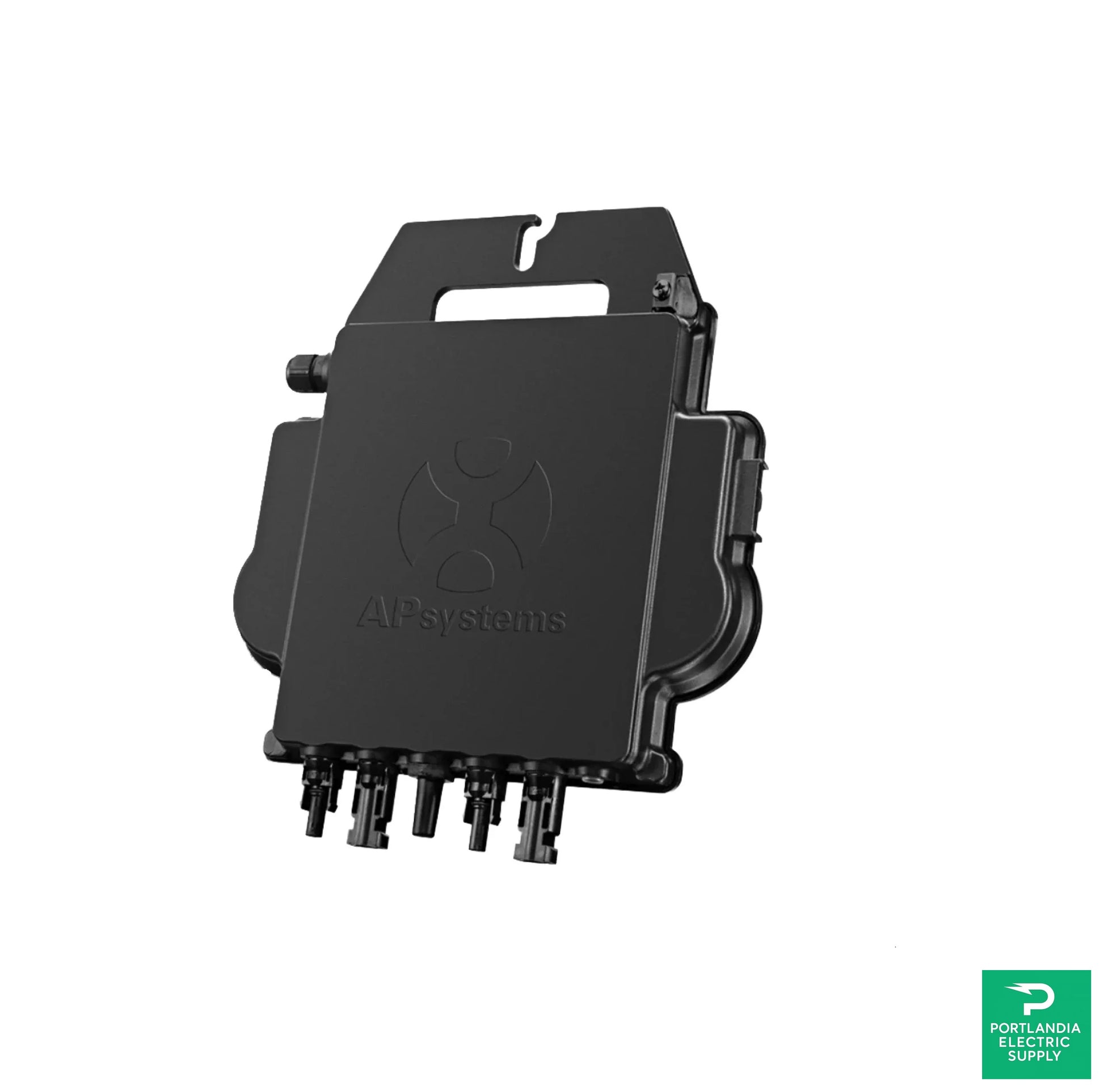

APsystems 118001-DS3-L
Innovative APsystems DS3 768VA Microinverter for Maximum Efficiency
The APsystems DS3 118001-DS3-L microinverter is a powerful solution designed to connect two solar modules, providing a seamless and efficient energy conversion. Featuring a high nominal output power of 768VA, it adapts to modern solar needs with optimized features for residential and commercial use. This microinverter ensures reliable energy management and operational efficiency, making it a standout choice for solar power systems.
Product Features
Dual Module Connectivity
The APsystems DS3 microinverter allows connection to two solar modules at once, utilizing its high performance to optimize energy output effectively, catered for both home and commercial solar installations.
Enhanced Output Power
With nominal power configurations reaching up to 768VA, the DS3 microinverter efficiently meets the needs of larger power modules, ensuring a steady flow of high-quality solar energy.
Independent MPPT Channels
Each DS3 unit comes equipped with two independent Maximum Power Point Tracking (MPPT) channels, providing precise energy tracking and conversion for optimal efficiency under diverse environmental conditions.
ZigBee Encrypted Communication
This microinverter employs encrypted ZigBee wireless communication for secure data transmission, facilitating robust and reliable energy monitoring across your solar network.
Regulatory Compliance
The DS3 microinverter adheres to strict safety and compliance standards, including CA Rule 21 and NEC 2020 690.12 Rapid Shutdown compliance, ensuring secure energy regulation and system reliability.
How It Works
The APsystems DS3 microinverter operates by converting the DC power generated by solar panels into AC power suitable for grid use. It connects directly to each solar module, ensuring maximum power extraction and efficient energy conversion.
Efficient DC to AC Conversion
The DS3 microinverter's primary function is its efficient conversion of DC power from solar panels into AC power, optimizing the energy flow and ensuring high performance.
Smart Energy Management
Integrated energy management features, including remote diagnostics and 24/7 access via apps or web portal, support seamless operation and maintenance of the solar energy system.
Reactive Power Control
The Reactive Power Control (RPC) feature helps manage power spikes and facilitates better grid interaction, enhancing the overall efficiency and stability of power delivery.
Specifications
| Model | DS3-L |
| Recommended PV Module Power | 265Wp-570Wp+ |
| Peak Power Tracking Voltage | 25V-55V |
| Maximum Input Voltage | 60V |
| Maximum Input Current | 18A x 2 |
| Nominal Output Voltage | 240V / 211V-264V |
| Nominal Output Current | 3.20A |
| Nominal Output Frequency | 60Hz/59.3Hz-60.5Hz |
| Power Factor | 0.99/0.7 leading to 0.7 lagging |
| Operating Temperature Range | -40°F to +149°F (-40°C to +65°C) |
Specifications & Documents: Full specifications & datasheet for Apsystems DS3 768VA Microinverter - 118001-DS3-L
