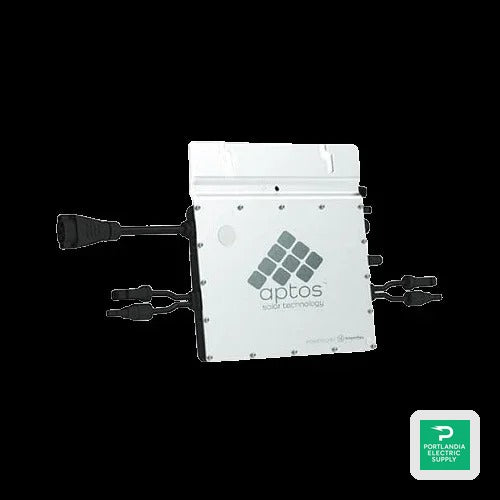

Aptos MAC-400R Microinverter - High Performance 400W
The Aptos MAC-400R microinverter is designed for maximized AC power output, making it an ideal companion for high-power solar panels. This innovative product offers seamless integration and compatibility with third-party devices, offering users an efficient and versatile solution for solar energy management. With system monitoring capabilities through Aptos' cloud software, it ensures you stay informed and in control of your energy production.
Product Features
High Power Output
The MAC-400R delivers up to 400W of output, surpassing typical alternatives by providing 10% more AC power, ensuring optimal energy generation from your solar panels.
Superior Reliability
Backed by a leading 25-year warranty and validated by extensive testing over 28 countries, this microinverter is built for long-term performance and reliability.
Durable Outdoor Enclosure
Featuring a NEMA6 (IP67) rating, the MAC-400R is constructed to endure tough outdoor environments, offering robust protection against the elements.
Efficient Installation
Streamline your setup with integrated trunk cables for easy connectivity with 120 & 144 cell PV panels, plus capabilities for daisy-chain and battery integration.
Advanced Safety Features
This microinverter includes a built-in rapid shutdown feature, meeting National Electrical Code standards, alongside robust 6,000V surge protection.
How It Works
The MAC-400R microinverter converts DC output from solar panels to AC for use in home systems, providing consistency and efficiency in energy management, both technical users and newcomers alike can benefit from its straightforward interfaces.
Module Integration
Designed for integration with high-power modules, the MAC-400R pairs effortlessly with panels to maximize energy capture and system potential.
Cloud Monitoring
Comes equipped with Aptos Solar Technology€™s cloud-based software, allowing for real-time monitoring and trend analysis of energy output and system performance.
Enclosure and Safety
The robust outdoor-ready enclosure not only protects vital components but also incorporates advanced safety mechanisms for reliable operation under varied conditions.
Specifications
| Commonly Used Module Power | 320W-540W+ |
| Maximum Input Voltage | 60V |
| MPPT Voltage Range | 16-60V |
| Start-up Voltage | 22V |
| Maximum Input Current | 12.5A |
| Peak Output Power | 400VA |
| Nominal Output Voltage/Range | 240/211-264V |
| Nominal Frequency/Range | 60/55-65Hz |
| Power Factor (Adjustable) | >0.99 default |
| Total Harmonic Distortion | <3% |
| Cooling | Natural Convection |
| Nighttime Power Consumption | <50mW |
| Enclosure Rating | Outdoor-NEMA (IP67) |
| SKU | PES-SPS-SIV-0449 |
|---|---|
| MPN | MAC-400R |
| Manufacturer | Aptos |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Length | |
| Pallet price | |
| Shop by inverter type | |
| Unit price | |
| Width | |
| Manufacturer | |
| Wattage |
No documents available for this product. Contact us to request documentation.
