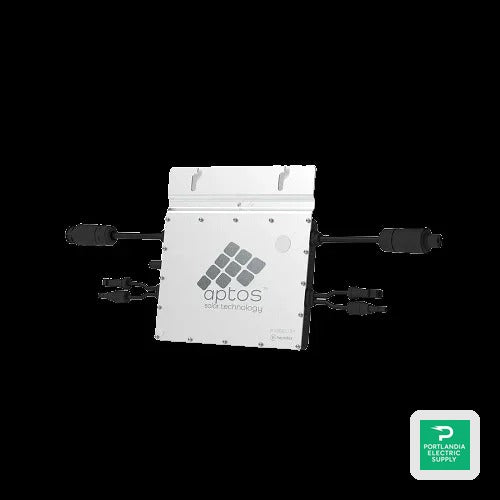

High-Output Aptos MAC-800R Solar Inverter
The Aptos MAC-800R microinverter is designed to maximize your solar panel€™s potential by delivering up to 800W of AC power. This innovative device pairs seamlessly with Aptos high-power solar technology, ensuring efficient energy conversion and use. Engineered for easy integration, the MAC-800R is compatible with various third-party devices, making it a versatile choice for advanced solar setups.
Product Features
Enhanced Power Output
The Aptos MAC-800R stands out with its ability to deliver up to 800W of maximum AC power, outperforming similar products by 10%. This feature ensures your solar system harnesses the most energy possible.
Long-lasting Reliability
Benefit from a robust 25-year warranty and proven reliability backed by over 7MW of testing hours. Enjoy peace of mind with a product tested across 28 different countries.
Rugged Build Quality
This microinverter is enclosed in a NEMA6 (IP67) rated casing, offering superior protection even in the harshest outdoor environments.
Simplified Installation
The Aptos MAC-800R includes fully integrated trunk cables for hassle-free installation, supporting 120 and 144 cell PV panels with daisy-chain connections, and is ready for battery integration.
Advanced Safety Features
Equipped with a built-in rapid shutdown feature conforming to NEC standards, this inverter enhances safety with 6,000V surge protection to safeguard your system.
How It Works
The Aptos MAC-800R operates efficiently by converting DC power from solar panels into AC power for home or commercial use. Its intelligent design allows for detailed system monitoring via Aptos cloud-based software, providing users with insights into energy production and system performance.
Microinverter Functionality
This component converts DC electricity from each solar panel into AC power, enabling optimal energy use within your trusted power grid.
Monitoring System
The integrated AST Cloud Monitoring system allows users to track energy output and trends, ensuring peak system performance and efficiency.
Quality Enclosure
Designed to withstand various climates, the NEMA6 (IP67) enclosure ensures that the inverter remains operational and protected against dust and water intrusion.
Specifications
| Module Power | 320W-540W+ |
| Ambient Temperature Range | -40 to +65°C |
| Maximum Input Voltage | 60V |
| Dimensions | 250 X 170 X 28 mm |
| Weight | 3.0 kg |
| Enclosure Rating | Outdoor-NEMA (IP67) |
| Cooling Method | Natural Convection - No Fans |
| Peak Output Power | 800 VA |
| CEC Peak Efficiency | 96.7% |
| Nominal MPPT Efficiency | 99.8% |
| Nighttime Power Consumption | <50 mW |
| Total Harmonic Distortion | <3% |
| Communication | 2.4GHz Proprietary RF (Nordic) |
| Warranty | 25 Years |
| SKU | PES-SPS-SIV-0454 |
|---|---|
| MPN | MAC-800R |
| Manufacturer | Aptos |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Length | |
| Pallet price | |
| Shop by inverter type | |
| Unit price | |
| Width | |
| Manufacturer | |
| Wattage |
No documents available for this product. Contact us to request documentation.
