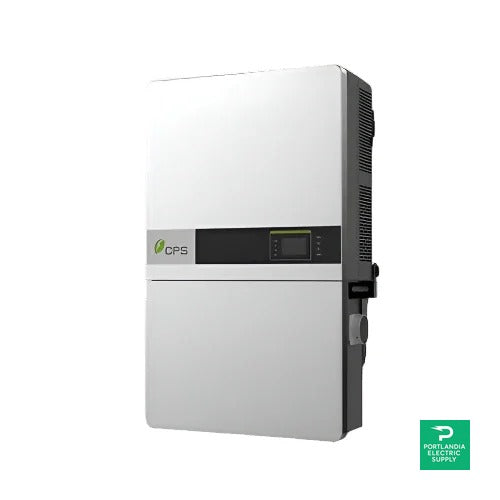

Chint 25kW 3-Phase String Inverter with APS RSD Wirebox
The Chint Power SCA25KTL-DO/US-208-APS inverter is expertly crafted for North American rooftop and carport installations. Emphasizing high efficiency, peak efficiency reaches 97.0%, and a CEC efficiency of 96.5%. The unit boasts a wide operating voltage range and robust temperature endurance, enclosed in a NEMA Type 4X rating, ensuring optimal functionality in diverse conditions.
Product Features
Rapid Shutdown Compliance
Designed with NEC 2017/2020 PVRSS certification for rapid shutdown, this inverter ensures enhanced safety features, making it a reliable choice for commercial settings.
Advanced Circuit Protection
Incorporating UL-listed arc-fault circuit protection, along with certifications under UL 1741-SB and IEEE 1547-2018, this unit promises uncompromising safety standards.
Flexible Installation
Offers a mounting orientation ranging from 15 to 90 degrees, facilitating low-profile roof installations that maintain aesthetic and functional integrity.
Remote Capabilities
The optional FlexOM Gateway facilitates remote firmware upgrades, streamlining maintenance and system monitoring from afar.
Integrated Disconnect Switches
Equipped with both AC and DC disconnect switches, this inverter simplifies operations, enhancing both usability and installation efficiency.
How It Works
This Chint inverter operates efficiently in varied environmental conditions, leveraging its transformerless topology for improved energy conversion. Key components include an LCD interface for on-site diagnostics and three MPPTs for optimizing energy capture across diverse solar installations.
Smart Grid Features
Features like Volt-RideThru, Freq-RideThru, and Specified-PF improve grid compatibility and energy management.
Separable Wire-box Design
The design allows for straightforward maintenance and swift service on the unit, ensuring minimal disruption to operations.
Copper and Aluminum Compatibility
The AC connections support both copper and aluminum wires, facilitating adaptable installation scenarios with different materials.
Specifications
| Model Name | CPS SCA25KTL-DO/US-208 |
| Max. PV Power | 45kW (17kW per MPPT) |
| Max. DC Input Voltage | 1000Vdc |
| MPPT Voltage Range | 480-850Vdc |
| Number of MPP Trackers | 3 |
| Rated AC Output Power | 25kW |
| Enclosure Protection | NEMA Type 4X |
| Max. Efficiency | 97.0% |
| Operating Temperature Range | -22F to +140F / -30C to +60C |
| Certifications and Standards | UL1741-SA, UL1741-SB Ed. 3, IEEE 1547-2018 |
| SKU | PES-SPS-SIV-0398 |
|---|---|
| MPN | SCA25KTL-DO/US-208-APS |
| Manufacturer | Chint Power |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Phase | |
| Shop by inverter type | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number | |
| Voltage |
