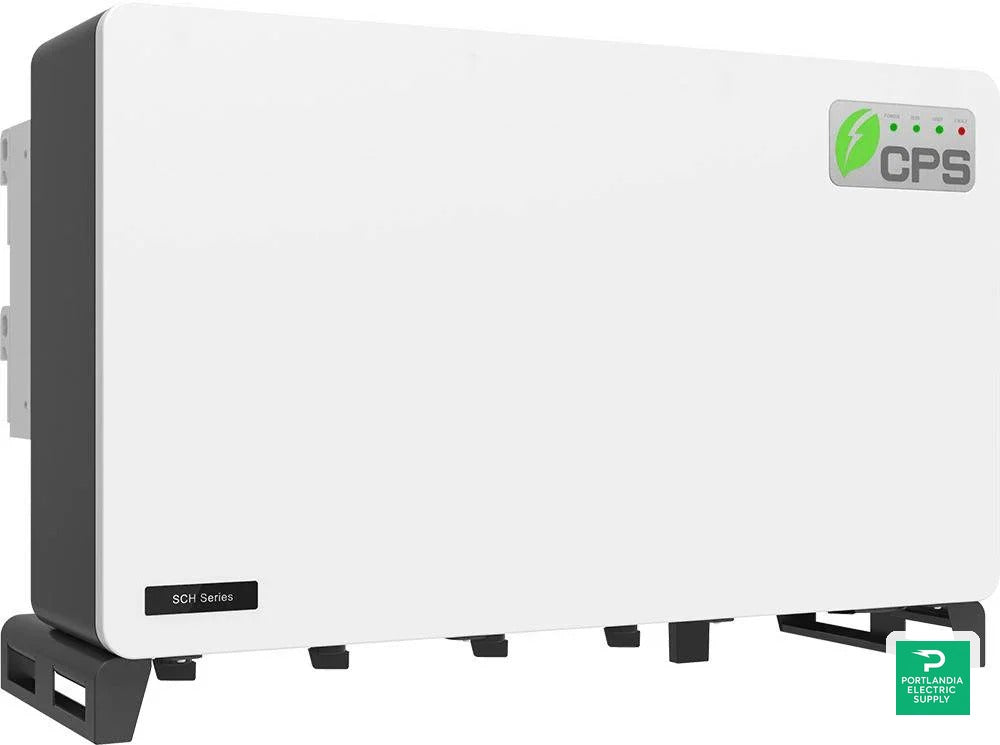

Chint Power 275kW 3-Phase String Inverter
Utility-Scale String Inverter | 1500 VDC System | 12 MPPTs
98.5%
CEC Efficiency
20 yr
Max Warranty
275 kW
Max Power
Product Overview
The Chint Power SCH275KTL-DO/US-800 delivers outstanding performance for ground-mount utility-scale applications. With 99.0% maximum efficiency (98.5% CEC) and 12 independent MPPTs, this inverter maximizes energy harvest across large commercial arrays. The robust NEMA Type 4X enclosure ensures reliable operation in demanding outdoor environments with full power capacity up to 42°C.
Key Benefits
36 fused or 24 unfused inputs for optimal energy harvesting in complex installations
Factory-selectable 250kW or 275kW AC active power output for project flexibility
Outdoor rated, tough-tested enclosure with integrated DC disconnects
CPS FlexOM solution enables communication, controls, and remote firmware upgrades
Technical Specifications
| Model Number | SCH275KTL-DO/US-800 |
| Power Output | 250/275 kW @ 800 VAC (selectable) |
| DC Input | 1500 VDC Max, 12 MPPTs |
| Max Efficiency | 99.0% (CEC 98.5%) |
| Protection Rating | NEMA Type 4X |
| Cooling | Active cooling, full power to 42°C |
| Input Options | 36 fused or 24 unfused inputs |
| Weight | ~260 lbs (118 kg) |
✓ Certifications & Warranty
Certifications: UL 1741-SA/SB, CA Rule 21, IEEE 1547-2018
Warranty: 5-year standard, extendable up to 20 years
