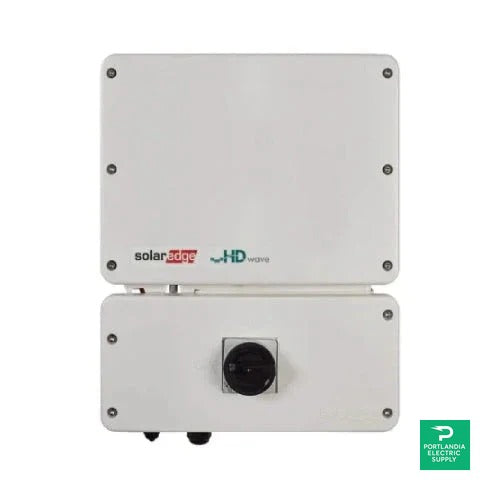

SolarEdge 10kW 240VAC Single Phase HD-Wave Inverter w/ RGM & Consumption Monitoring - SE10000H-US000BNI4
SolarEdge 10kW 240VAC Single Phase HD-Wave Inverter w/ RGM & Consumption Monitoring - SE10000H-US000BNI4
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SIV-0544
- MPN
- SE10000H-US000BNI4
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for SolarEdge. 50,000+ SKUs from 169 authorized brands.
SolarEdge 10kW HD-Wave Inverter with Consumption Monitoring
The SolarEdge SE10000H-US000BNI4 is a cutting-edge single-phase inverter with HD-Wave technology, tailored for North America's energy landscape. Emphasizing efficiency and reliability, this model enhances residential and small commercial solar systems by offering seamless compatibility and advanced monitoring capabilities. Key benefits include reduced energy costs and a sustainable energy supply, ensuring optimal performance and customer satisfaction.
Product Features
HD-Wave Technology
Leverage the innovative HD-Wave technology, a feature that optimizes energy production and enhances the overall efficiency of the inverter system for long-term sustainability.
Advanced Communication Options
Equipped with built-in communication interfaces such as RS485, Ethernet, optional ZigBee, and cellular, this inverter ensures flexible and robust connectivity for superior monitoring capabilities.
Revenue Grade Metering
Benefit from optional ANSI C12.20 revenue grade metering, offering precise energy usage data that simplifies energy management for cost-effective operations.
Rapid Shutdown Compliance
Compliant with NEC 2014 and 2017 690.12 standards, the inverter supports automatic rapid shutdown upon AC grid disconnect, enhancing safety features for user and system protection.
Easy Inverter Commissioning
Utilize the intuitive SetApp mobile application with built-in Wi-Fi for seamless inverter commissioning and local connection, simplifying initial setup process for installers and customers alike.
How It Works
Insightful operation is achieved through integrating cutting-edge technology and user-friendly interfaces, making it accessible for both technical experts and general users to understand the system's functionality.
High Efficiency Power Conversion
The HD-Wave inverter ensures maximum inverter efficiency, significantly reducing power loss and boosting solar energy conversion to maximize energy savings.
Comprehensive Monitoring
Incorporate consumption monitoring by simply connecting current transformers to the existing AC conduits, offering homeowners detailed insights into their energy consumption patterns.
Flexible Installation
Designed for ease of installation, this inverter is adaptable to various conduit sizes and string configurations, providing versatility to meet diverse project requirements.
Specifications
| Model Number | SE10000H-US000BNI4 |
| Rated AC Power Output | 10,000 VA |
| Maximum DC Power @240V | 15,500 W |
| Maximum Input Voltage | 480Vdc |
| Operating Temperature Range | -40 to +60°C |
| Noise Level | <25 dBA |
| Protection Rating | NEMA 4X |
| Cooling | Natural Convection |
| Maximum Inverter Efficiency | 99.2% |
| Nighttime Power Consumption | <2.5 W |
| SKU | PES-SPS-SIV-0544 |
|---|---|
| MPN | SE10000H-US000BNI4 |
| Manufacturer | SolarEdge |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Phase | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Model number | |
| Voltage |
No documents available for this product. Contact us to request documentation.
